BALDOR MOTOR UCM575 Grain Dryer Motor, 230/460V, 3600 RPM, 5-7.5 hp, 3 Phase, OPAO, 184TZ Frame
Get it by Tuesday, Dec 23
€1,532.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 19/9.5A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 40 lbs.-ft. |
| Class | Stock |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Duty | Continuous |
| Enclosure Design | OPAO |
| Frame | 184TZ |
| Frame Material | Steel |
| Frame Size | 184TZ |
| Frequency | 60 Hz |
| Full Load Torque | 11.4 lbs.-ft. |
| Full Load Torque | 11.4 ft.-lbs. |
| Hp | 5 hp to 7 1/2 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 9#16 30' G Y |
| Leads | 9#16 30 Ft. Long Y |
| Line-line Res. @ 25° C | 2.17 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 37 lbs.-ft. |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Type | Rigid Base |
| Mounting Type | Rigid Base |
| Multiplier | L1 |
| Nameplate Rpm | 3450 RPM |
| Nema/iec | NEMA |
| No Load Amps | 4A |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Overall Length | 15.37" |
| Phase | 3 |
| Power Factor | 87 |
| Product Datasheet | baldor-motor-ucm575.pdf |
| Proprietary | No |
| Pull-up Torque | 36.1 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | T |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 1/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 51.4A |
| Synchronous Rpm | 3600 RPM |
| Thermal Protection | Thermostat |
| Type | 3628M |
| Voltage | 230/460V |
| Wire Size | 16 AWG |
Shipping Info:
| Ship weight (kg) | 29.7 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 37 LB-FT
- Nameplate No.: NP1279L
- Pull-Up Torque: 36.1 LB-FT
- Starting Current: 51.4 Amps
Documentation:
Product Variants
| Model | Voltage | Hp | Motor Enclosure Design | Frame | Insulation Class | Overall Length | Type | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| UCM1014 | 208-230/460V | 10 hp to 15 hp | Open Air Over | 215Z | Class F | 16.69" | 3726M | 38-36/18A | €2,355.34 | |
| UCM713 | 208-230/460V | 7 1/2 hp to 10 hp | Open Air Over | 184TZ | Class F | 16.87" | 3646M | 25-24/12A | €1,832.69 | |

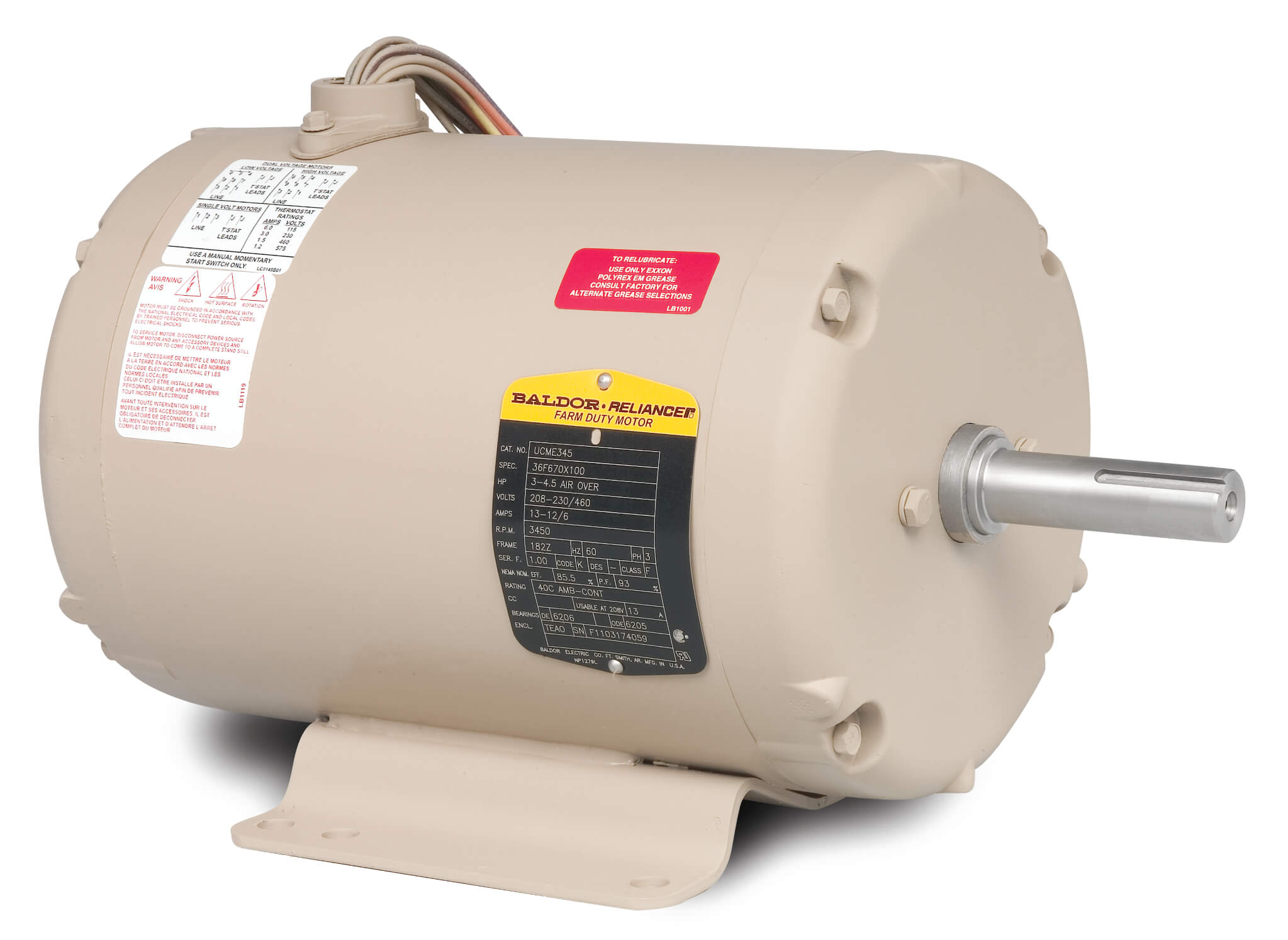

| UCME1014 | 208-230/460V | 10 hp to 14 hp | Totally Enclosed Air Over | 215Z | Class F | 16.69" | 3733M | 33-35/16.5A | €2,433.78 | |
| UCME153 | 208-230/460V | 1 1/2 hp to 3 hp | Totally Enclosed Air Over | 145TYZ | Class F | 13.37" | 3524M | 8.2-8.5/4.1A | €1,223.75 | |
| UCME3145 | 208-230/460V | 3 hp to 4 1/2 hp | Totally Enclosed Air Over | 143TYZ | Class H | 13.37" | 3528M | 15A | €1,293.38 | |
| UCME570 | 230/460V | 5 hp to 7 hp | Totally Enclosed Air Over | 184TZ | Class F | 15.37" | 3628M | 9A | €1,624.80 | |
| UCME7510 | 230/460V | 7 1/2 hp to 10 hp | Totally Enclosed Air Over | 184TZ | Class F | 16.87" | 3640M | 23/11.5A | €1,905.26 |
