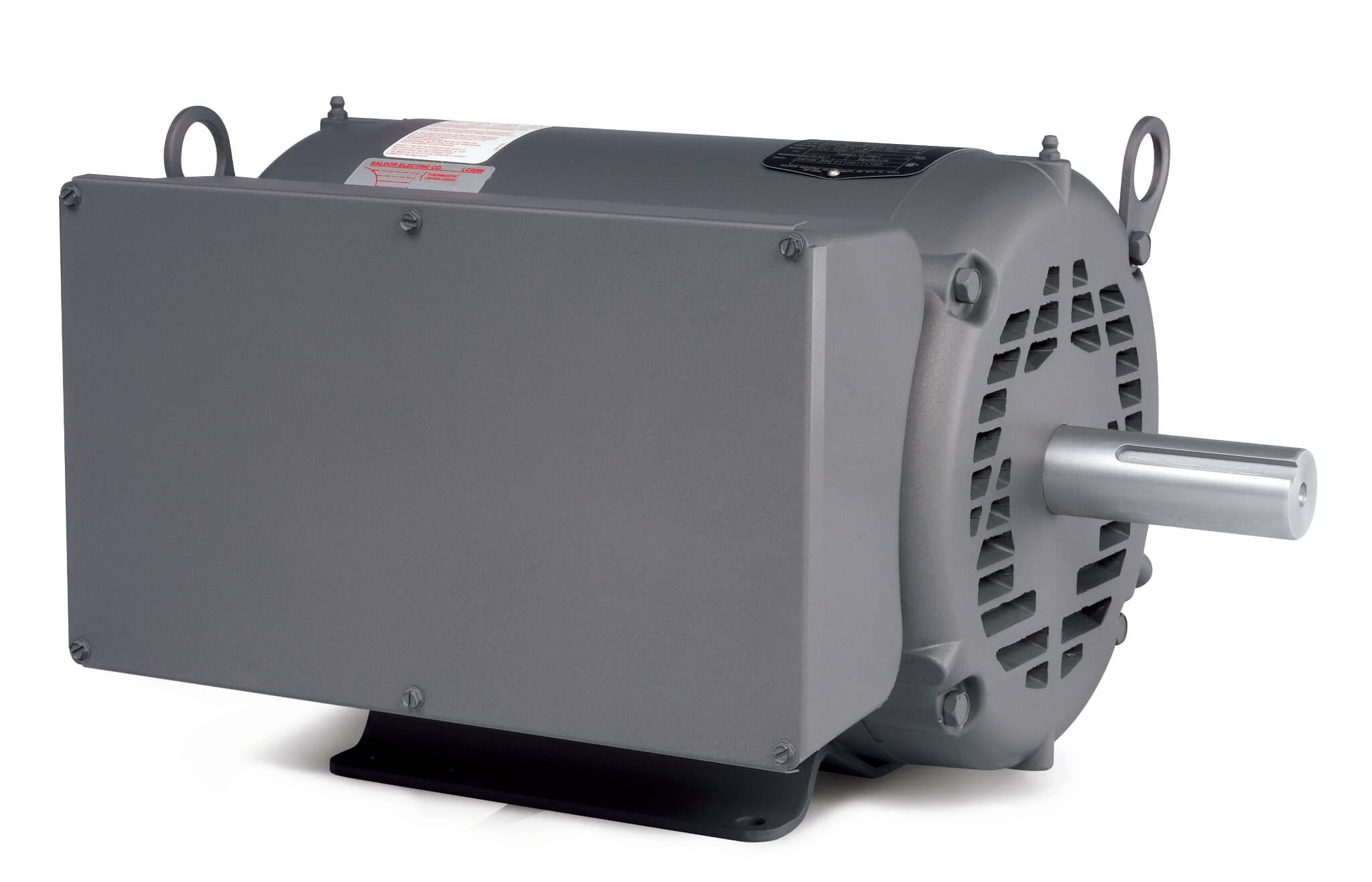

BALDOR MOTOR L1512T Single Phase Motor, 230V, 1800 RPM, 60 Hz, 10 hp, ODP, 215T Frame
39A
10 hp
1800 RPM
Get it by Thursday, Dec 18
10.00% off
€4,028.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 39A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC031A |
| Code | E |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | L |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Enclosure Design | OPSB |
| Frame | 215T |
| Frame Material | Steel |
| Frame Size | 215T |
| Frequency | 60 Hz |
| Full Load Amps | 39A |
| Hp | 10 hp |
| Hz | 60 Hz |
| Includes | Conduit Box |
| Ins. Class | Class B |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 2#10 A Ph, 2#14 B Ph |
| Lead | 2#10 A PH,2#14 B PH |
| Length Less Shaft | 14 1/16" |
| Manufacturers Warranty Length | 2 yrs. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Multiplier | L1 |
| Nameplate Rpm | 1725 RPM |
| Nema Design | L |
| Nema/iec | NEMA |
| No. Of Motor Leads | 2 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Overall Length | 17.45" |
| Phase | 1 |
| Power Factor | 97 |
| Product Datasheet | baldor-motor-l1512t.pdf |
| Proprietary | No |
| Pulley Face Code | Standard |
| Revision | A |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 3/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Length | 3 3/8" |
| Shaft Rotation | Reversible |
| Synchronous Rpm | 1800 RPM |
| Thermal Protection | None |
| Type | 3737LC |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V |
| Warranty | 2 yrs. |
| Weight | 142 lbs. |
| Wire Size | 10 AWG |
Shipping Info:
| Ship weight (kg) | 59.4 |
| Ship height (cm) | 44.13 |
| Ship length (cm) | 66.99 |
| Ship width (cm) | 41.91 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Nameplate No.: NP1256L
Documentation:
Product Variants
| Model | Motor Enclosure Design | Voltage | Hp | Service Factor | Nameplate Rpm | Mounting Type | Motor Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL11203 | Open Dripproof | 115-230V | 1/4 hp | 1.35 | 1725 RPM | Foot Mounted | Capacitor Start/Run | 48 | €652.04 | |
| EL11204 | Open Dripproof | 115-230V | 1/4 hp | 1.35 | 1140 RPM | Foot Mounted | Capacitor Start/Run | 48 | €778.03 | |
| EL11205 | Open Dripproof | 115-230V | 1/3 hp | 1.35 | 3475 RPM | Foot Mounted | Capacitor Start/Run | 48 | €688.58 | |
| EL11206 | Open Dripproof | 115-230V | 1/3 hp | 1.35 | 1740 RPM | Foot Mounted | Capacitor Start/Run | 48 | €701.09 | |
| EL11207 | Open Dripproof | 115-230V | 1/3 hp | 1.35 | 1140 RPM | Foot Mounted | 3421LC | 48 | €829.96 | |
| EL11208 | Open Dripproof | 115-230V | 1/2 hp | 1.25 | 3450 RPM | Foot Mounted | Capacitor Start/Run | 48 | €732.83 | |
| EL11209 | Open Dripproof | 115-230V | 1/2 hp | 1.25 | 1725 RPM | Foot Mounted | 3424LC | 48 | €786.68 |
