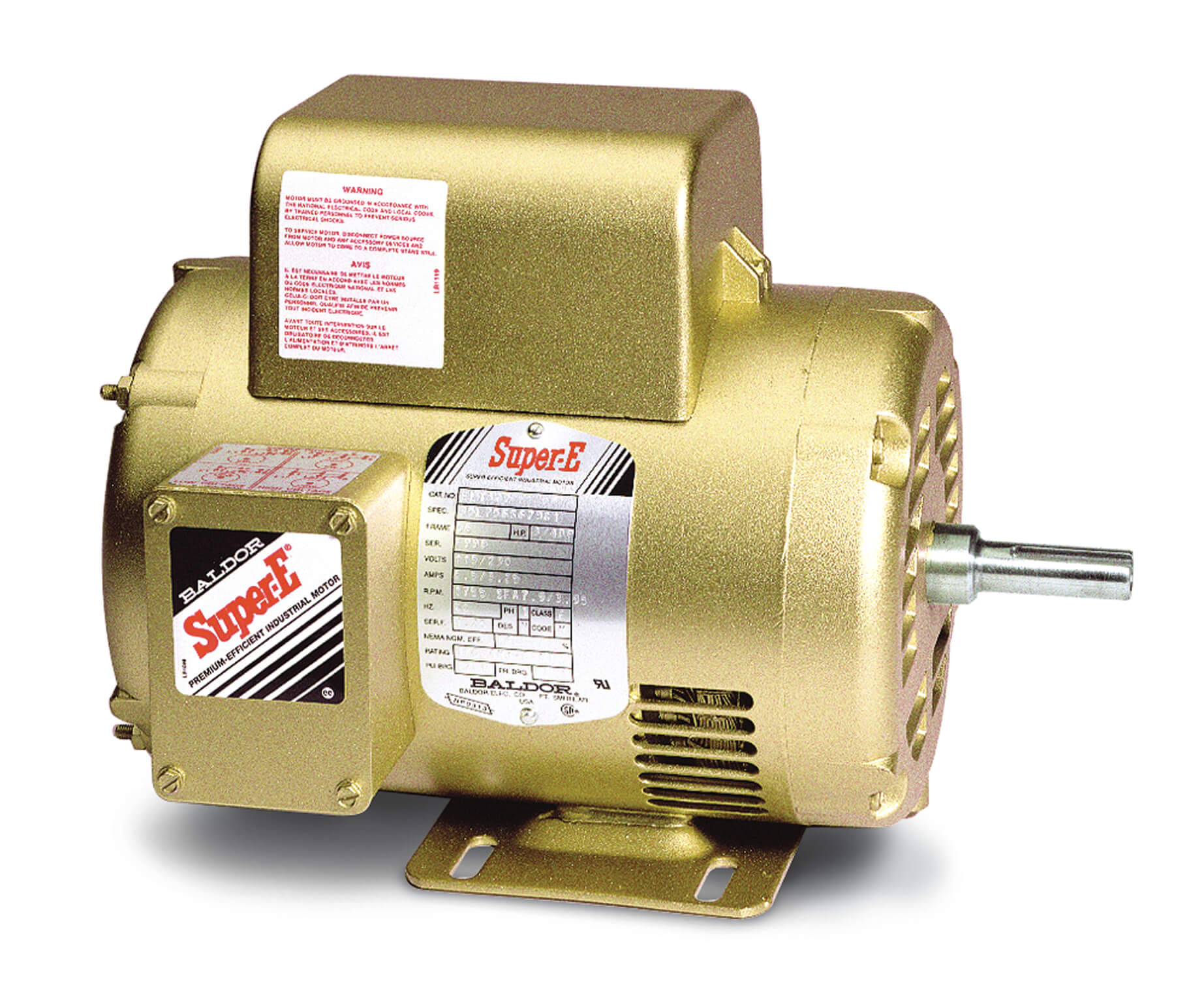

BALDOR MOTOR EL1406T Single Phase Motor, 115/230V, 3600 RPM, 60 Hz, 3 hp, ODP, 182T Frame
12.3A
3 hp
3600 RPM
Get it by Friday, Dec 19
€1,819.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 24.6/12.3A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 22.1 lbs.-ft. |
| Class | Stock |
| Code | G |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | L |
| Duty | Continuous |
| Enclosure Design | Open |
| Frame | 182T |
| Frame Material | Steel |
| Frame Size | 182T |
| Frequency | 60 Hz |
| Full Load Amps | 24.6/12.3A |
| Full Load Torque | 4.56 lbs.-ft. |
| Full Load Torque | 4.56 ft.-lbs. |
| Hp | 3 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 4#14 A PH,2#16 B PH |
| Lead | 4#14 A Ph, 2#16 B Ph |
| Line-line Res. @ 25° C | 0.74602 ohms A Ph/0.85786 ohms B Ph |
| Locked-rotor Torque | 8.88 lbs.-ft. |
| Motor Enclosure Design | Open Air Over |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Foot Mounted |
| Multiplier | L1 |
| Nameplate Rpm | 3450 RPM |
| Nema/iec | NEMA |
| No Load Amps | 1.46A |
| No. Of Motor Leads | 4 |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 81% |
| Overall Length | 15" |
| Phase | 1 |
| Power Factor | 98 |
| Product Datasheet | baldor-motor-el1406t.pdf |
| Proprietary | No |
| Pull-up Torque | 6.56 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | G |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 78A |
| Synchronous Rpm | 3600 RPM |
| Temp. Rise @ Rated Load | 32°C |
| Temp. Rise @ S. F. Load | 39°C |
| Type | 3628LC |
| Voltage | 115/230V |
| Wire Size | 14 AWG |
Shipping Info:
| Ship weight (kg) | 31.5 |
| Ship height (cm) | 38.42 |
| Ship length (cm) | 54.93 |
| Ship width (cm) | 40.96 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 8.88 LB-FT
- Nameplate No.: NP2116L
- Pull-Up Torque: 6.56 LB-FT
- Starting Current: 78 Amps
Documentation:
Product Variants
| Model | Motor Enclosure Design | Voltage | Hp | Service Factor | Nameplate Rpm | Mounting Type | Motor Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL11203 | Open Dripproof | 115-230V | 1/4 hp | 1.35 | 1725 RPM | Foot Mounted | Capacitor Start/Run | 48 | €652.04 | |
| EL11204 | Open Dripproof | 115-230V | 1/4 hp | 1.35 | 1140 RPM | Foot Mounted | Capacitor Start/Run | 48 | €778.03 | |
| EL11205 | Open Dripproof | 115-230V | 1/3 hp | 1.35 | 3475 RPM | Foot Mounted | Capacitor Start/Run | 48 | €688.58 | |
| EL11206 | Open Dripproof | 115-230V | 1/3 hp | 1.35 | 1740 RPM | Foot Mounted | Capacitor Start/Run | 48 | €701.09 | |
| EL11207 | Open Dripproof | 115-230V | 1/3 hp | 1.35 | 1140 RPM | Foot Mounted | 3421LC | 48 | €829.96 | |
| EL11208 | Open Dripproof | 115-230V | 1/2 hp | 1.25 | 3450 RPM | Foot Mounted | Capacitor Start/Run | 48 | €732.83 | |
| EL11209 | Open Dripproof | 115-230V | 1/2 hp | 1.25 | 1725 RPM | Foot Mounted | 3424LC | 48 | €786.68 |
