BALDOR MOTOR EM3554T-57 Three Phase Motor, 230/400V, 1500 RPM, 50 Hz, 1.5 hp, TEFC, 145T Frame
1500 RPM
1.5 hp
145T
Get it by Tuesday, Dec 23
€1,012.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | 50 Hz Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps @ Volts | 5A @ 230V, 2.9A @ 400V |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Break-down Torque | 23.2 lbs.-ft. |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 84.2% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | TEFC |
| Feedback Device | NO FEEDBACK |
| Frame | 145T |
| Frame Material | Steel |
| Frame Size | 145T |
| Frequency | 50 Hz |
| Front Face Code | Standard |
| Full Load Amps | 2.9A |
| Full Load Torque | 0 ft.-lbs. |
| Full Load Torque | 0 lbs.-ft. |
| Grease Type | Polyrex EM |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 2.9A |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Ready |
| Kva Code | M |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | No Locked Bearing |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Lead Exit | Ko Box |
| Motor Lead Quantity/wire Size | 6 @ 18 AWG |
| Motor Lead Termination | Flying Leads |
| Motor Mounting Type | Foot Mounted |
| Motor Type | 3526M |
| Mounting Type | Foot Mounted |
| Nameplate Rpm | 1455 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Output @ Frequency | 1 1/2 hp @ 50 Hz |
| Overall Length | 13.31" |
| Phase | 3 |
| Power Factor | 73 |
| Product Datasheet | baldor-motor-em3554t-57.pdf |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rpm | 1455 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed Type | Single Speed |
| Start Type | Direct On Line |
| Synchronous Rpm | 1500 RPM |
| Synchronous Rpm @ Frequency | 1500 RPM @ 50 Hz |
| Synchronous Speed | 1500 RPM |
| Type | 3526M |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 230/400V |
| Voltage @ Frequency | 230V @ 50 Hz, 400V @ 50 Hz |
| Xp Division | Not Applicable |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- SUPERSEDES BALDOR - M3554T-57, M3554T-50
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 84.20%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Inverter ready
- KVA Code: M
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: No Locked Bearing
- Motor Lead Exit: KO Box
- Motor Lead Quantity/Wire Size: 6 @ 18 AWG
- No-Load Current: 0 A
- Product Family: General Purpose
- Pull-Up Torque: 17.4 LB-FT
- Pulley End Bearing Type: Ball
- Pulley Face Code: Standard
- Pulley Shaft Indicator: Standard
- Shaft Diameter: 0.875 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
- Starting Current: 22.9 A
- Temp. Rise @ Rated Load: 60 deg C
- Temp. Rise @ S.F. Load: 69 deg C
Documentation:
Product Variants
| Product | Model | Hp | Nameplate Rpm | Frame | Mounting Type | Service Factor | Motor Type | Type | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

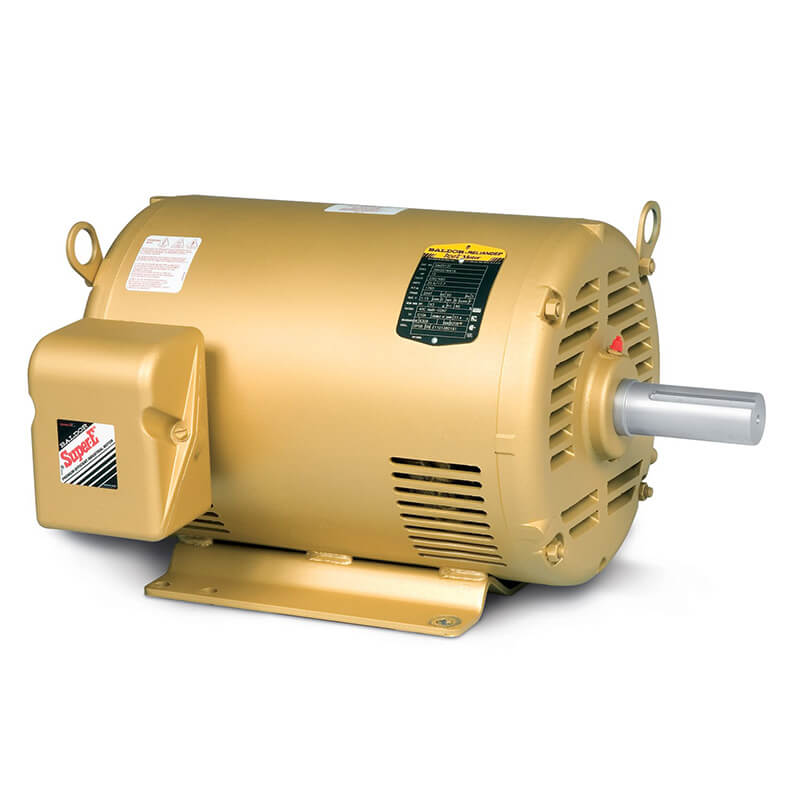

EM3545-57 | 1 hp | 2850 RPM | 56 | Foot Mounted | 1.25 | 3516M | 3516M | 87 | €974.07 | |
|
EM3546T-57 | 1 hp | 1440 RPM | 143T | Foot Mounted | 1.15 | 3518M | 3518M | 65 | €995.85 | |
|
EM3550T-57 | 1 1/2 hp | 2850 RPM | 143T | Foot Mounted | 1.15 | 3524M | 3524M | 84 | €1,130.27 | |
|
EM3555T-57 | 2 hp | 2900 RPM | 145T | Foot Mounted | 1 | 3532M | 3532M | 88 | €1,241.03 | |
|
EM3558T-57 | 2 hp | 1445 RPM | 145T | Foot Mounted | 1.15 | 3528M | 3528M | 81 | €1,069.70 | |
 |
KM3454-57 | 1/4 hp | 1425 RPM | 56C | C Face, Footless | 1.25 | - | 3410M | 59 | €562.29 | |
 |
M3538-57 | 1/2 hp | 1425 RPM | 56 | Foot Mounted | 1.25 | - | 3420M | 67 | €694.82 |
