DAYTON Shutter Mount Exhaust Fans


Dayton shutter mount exhaust fans improve air circulation and remove pollutants in schools, storage facilities, factories and light manufacturing & assembly areas. These fans help maintain air quality and control temperature & humidity levels, with adjustable shutters ensuring efficient... operation.Read more

Filter
DAYTON 484X37A
DAYTON 484X47B
DAYTON 484X39C
DAYTON 484X42D

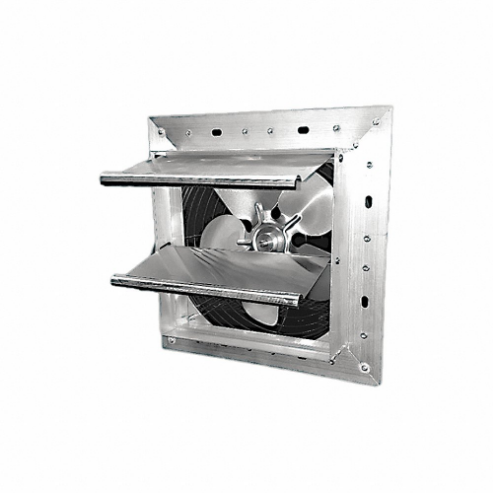

DAYTON 484X36E
DAYTON 484X38F

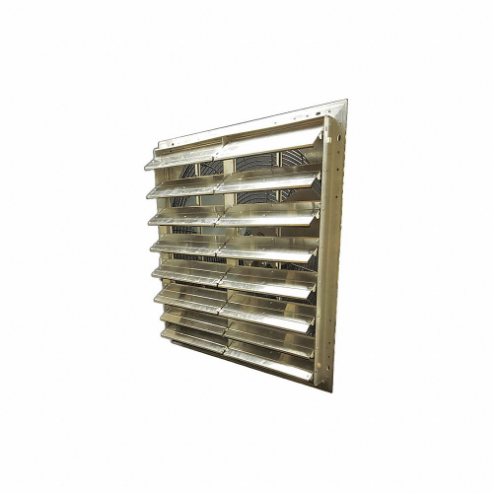

DAYTON 484X50G

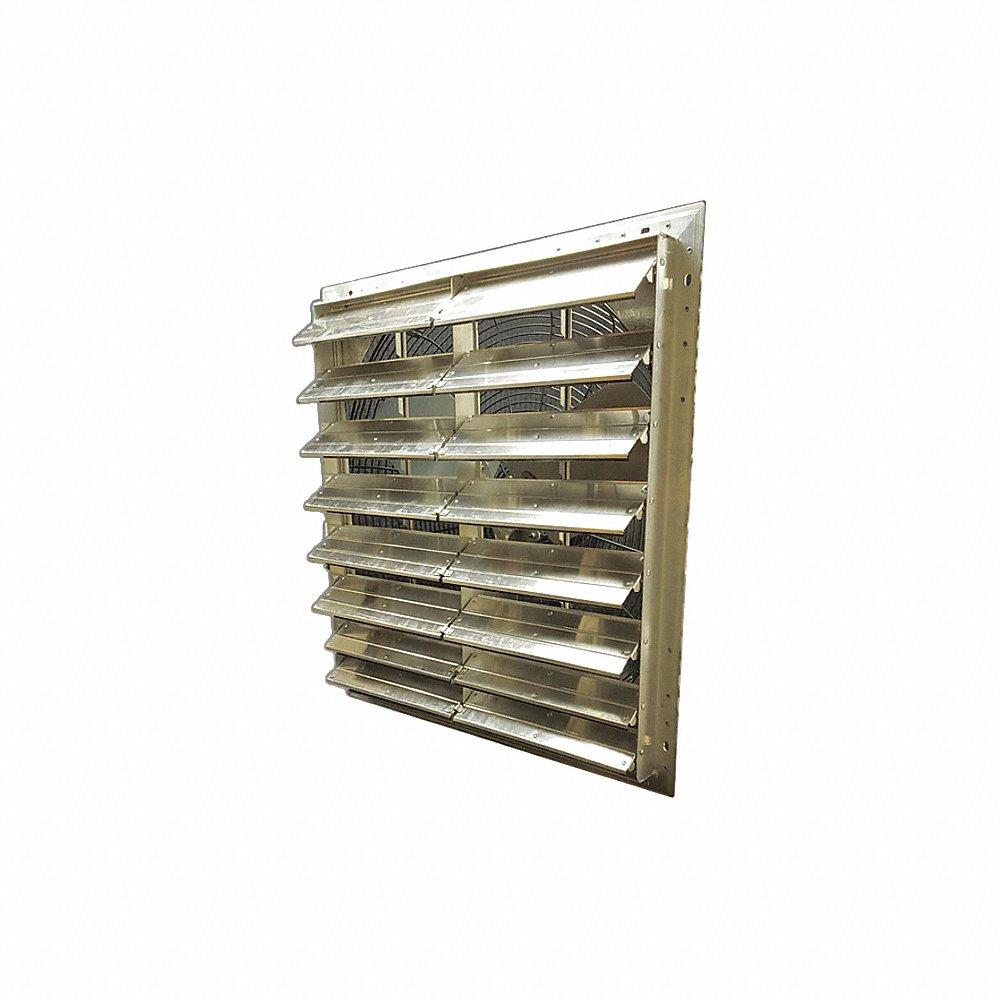

DAYTON 484X49H
StyleModelBlade MaterialBlade Dia.For Cut-out HeightFor Cut-out WidthMotor HpMotor SpeedMax. Exhaust Airflow @ 0.000 In SpNameplate VoltagePrice
A
484X37		Aluminum10"10 1/2"10 1/2"1/25 hp1550 RPM625 CFM115V AC€217.67
B
484X47		Aluminum24"25"25"1/3 hp1075 RPM4479 CFM115V AC€528.26
C
484X39		Aluminum16"17"17"1/10 hp1550 RPM1381 CFM115V AC€242.17
D
484X42		Aluminum20"21"21"1/4 hp1725 RPM3950 CFM115V AC€469.86
D
484X44		Aluminum20"21"21"1/3 hp1725 RPM4034 CFM115V AC€426.80
E
484X36		Aluminum7"8 1/2"8 1/2"1/25 hp1550 RPM254 CFM115V AC€168.79
D
484X43		Aluminum20"21"21"1/4 hp1075 RPM3151 CFM115V AC€427.01
D
484X48		Aluminum24"25"25"1/3 hp1075 RPM4610 CFM115V AC€770.64
D
484X46		Aluminum24"25"25"1/4 hp1075 RPM4163 CFM115V AC€477.49
F
484X38		Aluminum12"13"13"1/15 hp1550 RPM844 CFM115V AC€185.72
D
484X41		Aluminum18"19"19"1/4 hp1725 RPM3128 CFM115V AC€417.92
G
484X50		Steel36"37"37"1/2 hp825 RPM8860 CFM115/208-230V€744.64
H
484X49		Steel30"31"31"1/3 hp825 RPM5090 CFM115V AC€587.29

Working Mechanism

  • Shutter mount exhaust fans operate by creating a suction force inside a building by rotating fan blades powered by an electric motor. The shutter assembly is placed on the exhaust side of the fan, which is installed on an exterior wall.
  • When the switch is turned on, the motor begins turning the fan's blades, drawing air in through the open shutters and pushing it out the open door. The indoor air quality is improved by this ventilation process, which helps remove stale air, moisture, odours, and contaminants from the building.
  • The shutters automatically close when the fan is turned off to stop backdrafts and the entry of outside elements. Shutter mount exhaust fans can have their operation managed manually or remotely using switches or control panels.

Features

  • These Dayton shutter mount exhaust fans have blades made of aluminium / steel for structural rigidity & corrosion resistance.
  • They feature ball bearings for low rotational friction and Class B insulated, totally enclosed air-over enclosures for added safety.
  • These Dayton shutter mount exhaust fans allow vertical mounting for easy installation.
  • They deliver speeds up to 1550 rpm and can withstand a maximum temperature of 104 degrees F.
  • These fans are available in 1/2, 1/3 and 1/25 hp variants.

Standards and Approvals

  • UL
  • cUL
  • OSHA

Frequently Asked Questions

What is the voltage rating of these Dayton shutter mount exhaust fans?

They have a voltage rating of 115VAC at 60 Hz.

What is the maximum air flow rate of these shutter mount exhaust fans?

They offer air flow rates up to 8860 cfm.

How do I maintain a shutter mount exhaust fan?

Regular maintenance involves cleaning the fan blades and shutters to remove dust and debris. It's also important to check and replace any worn-out parts, such as the motor or belts, as needed.
