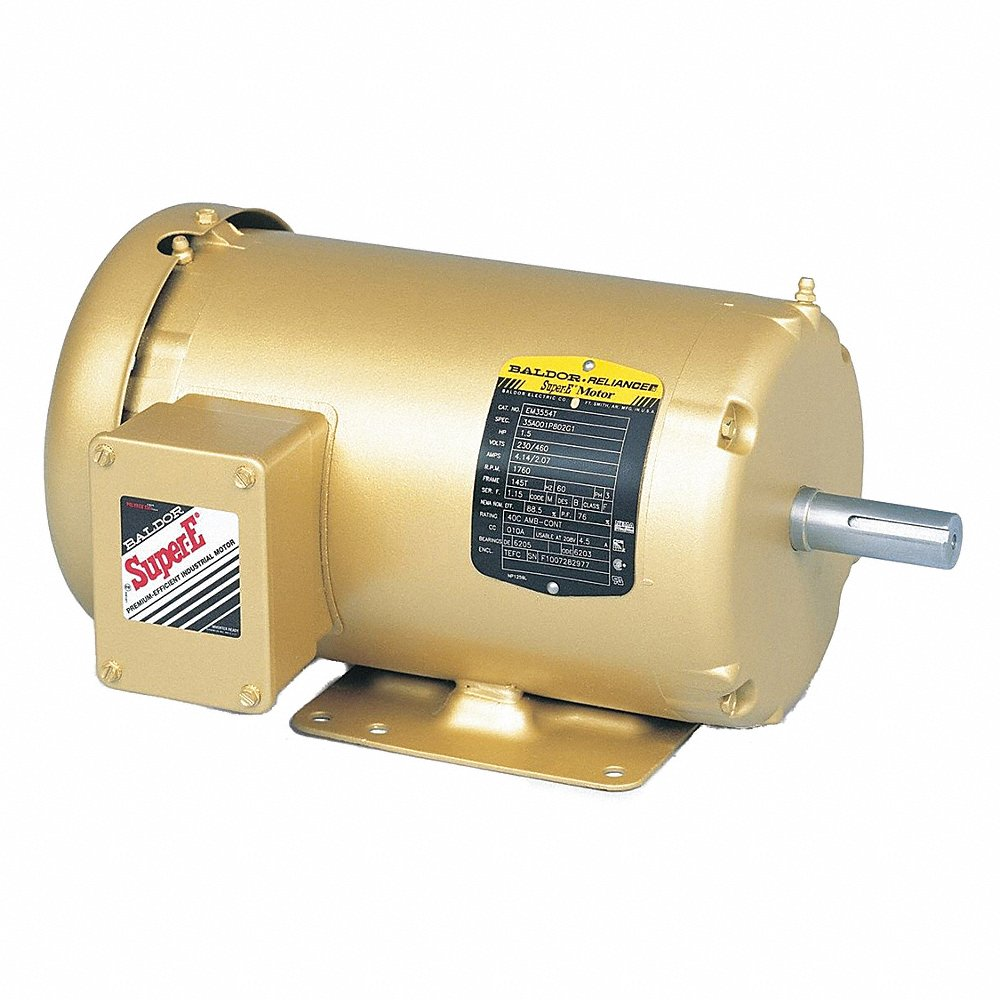

BALDOR MOTOR EM3538 Three Phase Motor, 230/460V, 1800 RPM, 60 Hz, 0.5 hp, TEFC, 56 Frame
0.77A
0.5 hp
1800 RPM
Get it by Wednesday, Dec 17
10.00% off
€1,212.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps @ 208v | 1.68A |
| Base Indicator | Rigid |
| Bearing-drive-end | 6205 |
| Bearing-opp-drive-end | 6203 |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Efficiency @ 100% Load | 82.5% |
| Enclosure Design | TEFC |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.54/0.77A |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Ready |
| Kva Code | K |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Type | Three Phase |
| Mounting Type | Foot Mounted |
| Nameplate Rpm | 1735 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Output Hp | .5 |
| Overall Length | 12.22" |
| Phase | 3 |
| Power Factor | 63 |
| Product Datasheet | baldor-motor-em3538.pdf |
| Pulley Face Code | Standard |
| Rpm | 1735 RPM |
| Rpm Range | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Synchronous Rpm | 1800 RPM |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 13.82 |
| Ship height (cm) | 27.18 |
| Ship length (cm) | 41.66 |
| Ship width (cm) | 29.46 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- KVA-Code: K
Documentation:
Product Variants
| Model | Voltage | Hp | Service Factor | Motor Type | Nameplate Rpm | Mounting Type | Ambient Temp. | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EM2276T | 230/460V | 7 1/2 hp | 1.15 | Three Phase | 1180 RPM | Foot Mounted | 40°C | Class F | €5,534.10 | |
| EM2280T | 230/460V | 5 hp | 1.15 | 0940M | - | Foot Mounted | 40°C | Class F | €5,662.73 | |
| EM2332T | 230/460V | 10 hp | 1.15 | Three Phase | 1180 RPM | Foot Mounted | 40°C | Class F | €6,115.23 | |
| EM2333T | 230/460V | 15 hp | 1.15 | Three Phase | 1765 RPM | Foot Mounted | 40°C | Class F | €3,191.08 | |
| EM2334T | 230/460V | 20 hp | 1.15 | Three Phase | - | Foot Mounted | 40°C | Class F | €3,868.88 | |
| EM2334T-12 | 230/460V | 20 hp | 1.15 | Three Phase | 1765 RPM | Foot Mounted | 40°C | Class F | €4,897.86 | |
| EM2394T | 230/460V | 15 hp | 1.15 | Three Phase | 3520 RPM | Foot Mounted | 40°C | Class F | €3,928.51 |
