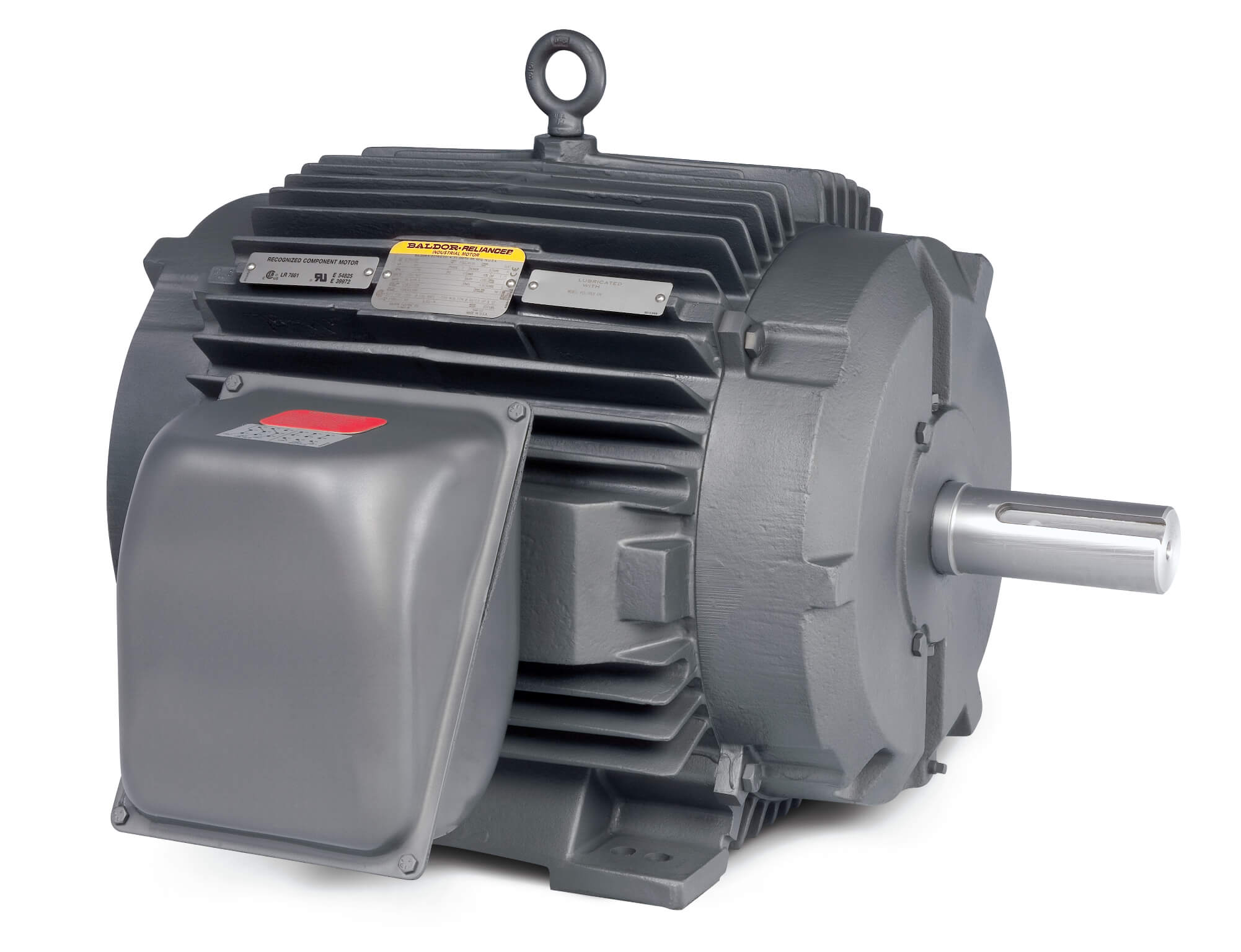

BALDOR MOTOR ECTM4314T Chiller/Cooling Tower Motor, 230/460V, 1800 RPM, 60 Hz, 60 hp, TEAO, 364T Frame
Get it by Thursday, Dec 18
€15,374.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Tower Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Class | Stock |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Design | TEAO |
| Enclosure Type | Totally Enclosed Air Over |
| Frame | 364T |
| Frame Material | Iron |
| Frame Size | 364T |
| Frequency | 60 Hz |
| Full Load Amps | 136/68A |
| Hp | 60 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Ready |
| Kvar | 10 k var |
| Lead | 3#4,6#6 |
| Lead | 3#4, 6#6 |
| Multiplier | L1 |
| Nema Design | B |
| Nema/iec | NEMA |
| No. Of Motor Leads | 3 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Overall Length | 29.7" |
| Phase | 3 |
| Power Factor | 84 |
| Product Datasheet | baldor-motor-ectm4314t.pdf |
| Proprietary | No |
| Pulley Face Code | Standard |
| Revision | D |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 2.374" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Synchronous Rpm | 1800 RPM |
| Type | A36062M |
| Voltage | 230/460V |
| Wire Size | 4 AWG |
Shipping Info:
| Ship weight (kg) | 375.75 |
| Ship height (cm) | 65.09 |
| Ship length (cm) | 103.19 |
| Ship width (cm) | 82.55 |
| HS code | 85015230 |
| Country of Origin | US |
Product Details:
- Drive End Bearing: 65BC03JGG30A
- Nameplate No.: 000613007EW
Documentation:
Product Variants
| Model | Hp | Voltage | Rpm | Frame | Full Load Amps | Wire Size | Revision | No. Of Motor Leads | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CTM2276T | 7 1/2 hp | 208-230/460V | 1100-1200 RPM | 254T | 10.9/21.8/24A | 14 AWG | F | 9 | €3,157.01 | |
| CTM2332T | 10 hp | 230/460V | 1100-1200 RPM | 256T | 28.8/14.4A | 12 AWG | M | 9 | €3,513.90 | |
| CTM2333T | 15 hp | 208-230/460V | 1700-1800 RPM | 254T | 18.5/37/4A | 14 AWG | K | 9 | €5,085.77 | |
| CTM2334T | 20 hp | 230/460V | 1700-1800 RPM | 256T | 50/25A | 10 AWG | G | 9 | €4,295.80 | |
| CTM3665T | 5 hp | 208-230/460V | 1700-1800 RPM | 184T | 14.9-13.8/6.9A | 16 AWG | C | 9 | €1,706.77 | |
| CTM3768T | 5 hp | 208-230/460V | 1100-1200 RPM | 215T | 16.3-15/7.5A | 14 AWG | C | 9 | €2,587.14 | |
| CTM3770T | 7 1/2 hp | 208-230/460V | 1700-1800 RPM | 213T | 22.3-20.6/10.3A | 14 AWG | C | 9 | €2,272.85 |
