AIR HANDLER 2EKJ2 Green Pleat 16 x 25 x 2 Merv13
Get it by Friday, Aug 14
5.00% off
€24.12 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Green Pleated Filter |
| Actual Depth | 1 3/4" |
| Actual Filter Size | 15 1/2" x 24 1/2" x 1 3/4" |
| Actual Height | 15 1/2" |
| Air Filter Capacity | High Capacity |
| Air Flow @ 500 Fpm | 1389 CFM |
| Airflow @ 300 Fpm | 833 CFM |
| Common Applications | Leed, Green |
| Filter Efficiency (air Filters) | 85% |
| Filter Frame Color | White |
| Filters Out | Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Powder, Most Smoke, Paint Pigments |
| Final Recommended Resistance | 1 in. wc |
| Frame | Yes |
| Frame Material | Chipboard |
| Frame Or Header Material | Beverage Board |
| Frame Type | Moisture Resistant Die Cut Chipboard |
| Gasket Location | None |
| Gasket Material | None |
| High Initial Resistance | 0.29 in. wc |
| High Velocity | 500 FPM |
| Initial Resistance @ 300 Fpm | 0.22 in. wc |
| Initial Resistance @ 500 Fpm | 0.37 in. wc |
| Material Properties | Moisture Resistant Die Cut |
| Max. Temp. | 180°F |
| Max. Velocity | 500 FPM |
| Media Area | 12.2 sq. ft. |
| Media Color | White |
| Media Material | Synthetic |
| Nominal Depth | 2" |
| Nominal Filter Size | 16" x 25" x 2" |
| Nominal Height | 16" |
| Nominal Pleat | 85% |
| Performance Rating (meets Or Exceeds) | MERV 13 |
| Pleats Per Linear Feet | 15 |
| Style-air Filters | Panel |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 65.02 |
| Ship length (cm) | 59.69 |
| Ship width (cm) | 41.15 |
| HS code | 5911900080 |
| Country of Origin | US |
Product Variants
| Product | Model | Nominal Depth | Actual Height | Airflow @ 300 Fpm | Nominal Filter Size | Pleats Per Linear Feet | High Velocity | Actual Filter Size | Air Flow @ 500 Fpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11C857 | 1" | 9 1/2" | 417 CFM | 10" x 20" x 1" | 9 | 375 FPM | 9 1/2" x 19 1/2" x 3/4" | 694 CFM | €10.85 | |
|
11C858 | 1" | 9.375" | 500 CFM | 10" x 24" x 1" | 9 | 375 FPM | 9 3/8" x 23 3/8" x 3/4" | 833 CFM | €17.19 | |
|
11C859 | 1" | 9 3/4" | - | 10" x 25" x 1" | 9 | 375 FPM | - | - | €17.51 | |
 |

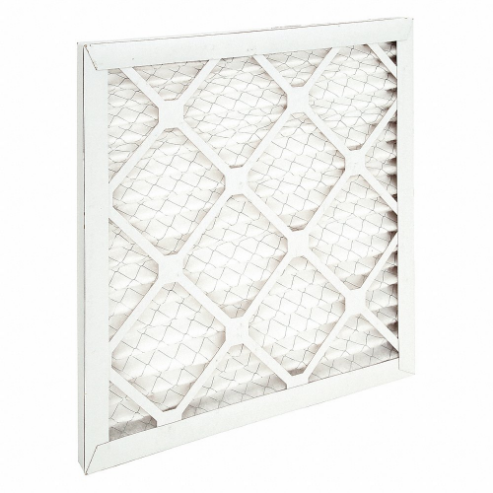

11C860 | 1" | 11 3/8" | 300 CFM | 12" x 12" x 1" | 9 | 375 FPM | 11 3/8" x 11 3/8" x 3/4" | 500 CFM | €25.92 | |
 |

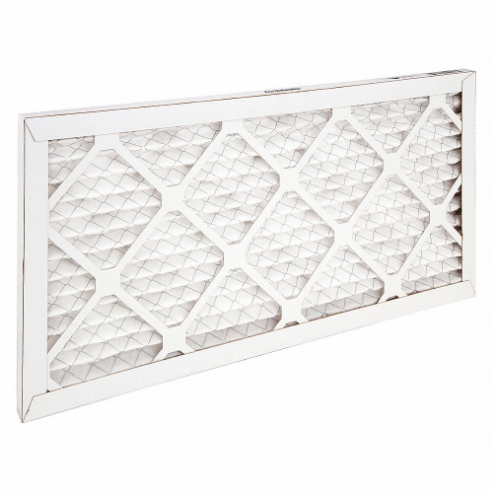

11C861 | 1" | 11 1/2" | 500 CFM | 12" x 20" x 1" | 9 | 375 FPM | 11 1/2" x 19 1/2" x 3/4" | 833 CFM | €12.76 | |
|
11C862 | 1" | 11 1/2" | 600 CFM | - | 9 | 375 FPM | 11 1/2" x 23 1/2" x 3/4" | 1000 CFM | €13.97 | |
|
11C863 | 1" | 11 1/2" | 625 CFM | 12" x 25" x 1" | 9 | 375 FPM | 11 1/2" x 24 1/2" x 3/4" | 1042 CFM | €18.14 |
