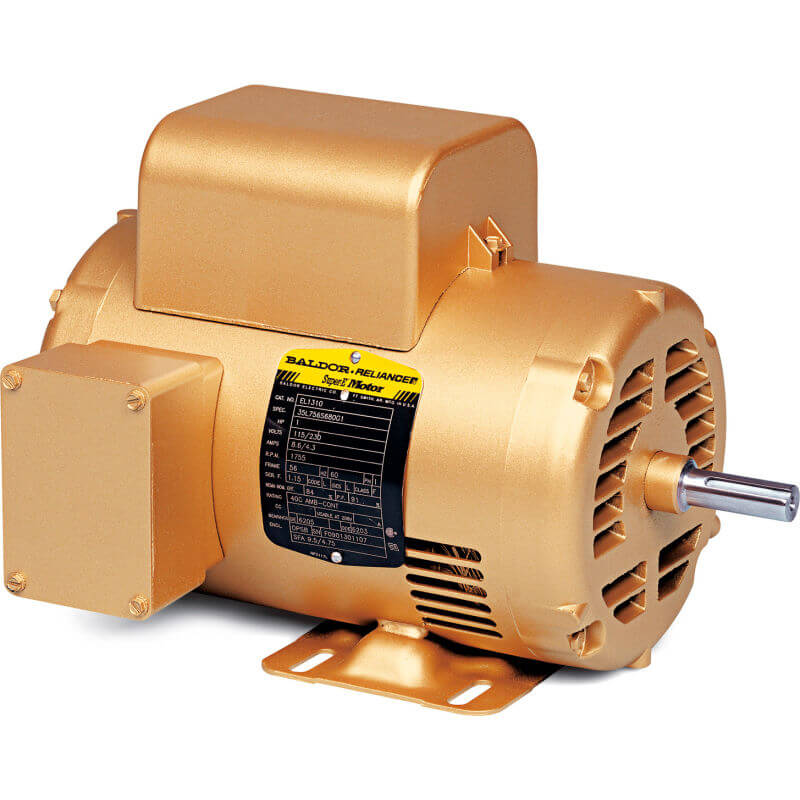

BALDOR MOTOR CEL11307 Single Phase Open Motor, 115/230V, 1800 RPM, 60 Hz, 0.75 hp, 56C Frame
Get it by Tuesday, Jun 30
5.00% off
€1,105.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps @ Voltage | 3.5A @ 230V, 7A @ 115V , 7A @ 115V, 3.5A @ 230V |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Bearing Type | Ball |
| Cc Number | CC031A |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | N |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 81.8% |
| Efficiency @ 100% Load | 81.8% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | Open |
| Feedback Device | NO FEEDBACK |
| Frame | 56C |
| Frame Material | Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Frequency | 60.00 Hz |
| Front Face Code | Standard |
| Full Load Amps | 3.5A |
| Grease Type | Polyrex EM |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 3.5A |
| Hp | 3/4 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Inverter Rated | No |
| Kva Code | M |
| Length Less Shaft | 10 3/16" |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Lead Exit | Ko Box |
| Motor Lead Quantity/wire Size | 6 @ 18 AWG |
| Motor Lead Termination | Flying Leads |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | 3524LC |
| Nameplate Speed | 1750 RPM |
| Nema Design | NEMA N |
| Nema/iec | NEMA |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 81.8% |
| Output Frequency | 3/4 hp @ 60 Hz |
| Overall Length | 12.06" |
| Phase | 1 |
| Power Factor | 95 |
| Product Datasheet | baldor-motor-cel11307.pdf |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | C Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | Not Available |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Length | 1 15/16" |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 1700-1800 Rpm, 1701-1800 Rpm , 1750 RPM |
| Speed Type | Single Speed |
| Start Type | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Synchronous Speed @ Hz | 1800 RPM @ 60 Hz |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 115-230V |
| Voltage @ Frequency | 115V @ 60 Hz, 230V @ 60 Hz |
| Winding Thermal 2 | None |
| Xp Division | Not Applicable |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- SUPERSEDES BALDOR - CL1307
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 81.80%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Not inverter
- KVA Code: M
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: KO Box
- Motor Lead Quantity/Wire Size: 6 @ 18 AWG
- Product Family: General Purpose
- Pulley End Bearing Type: Ball
- Pulley Face Code: C-Face
- Pulley Shaft Indicator: Standard
- Shaft Diameter: 0.625 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
Documentation:
Product Variants
| Model | Motor Enclosure Design | Voltage | Hp | Service Factor | Motor Type | Frame | Insulation Class | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CEL11301 | Open Dripproof | 115-230V | 1/3 hp | 1.35 | 3418LC | 56C | Class B | 5/8" | €749.17 | |
| CEL11303 | Open Dripproof | 115-230V | 1/2 hp | 1.25 | 3413LC | 56C | Class B | 5/8" | €780.91 | |

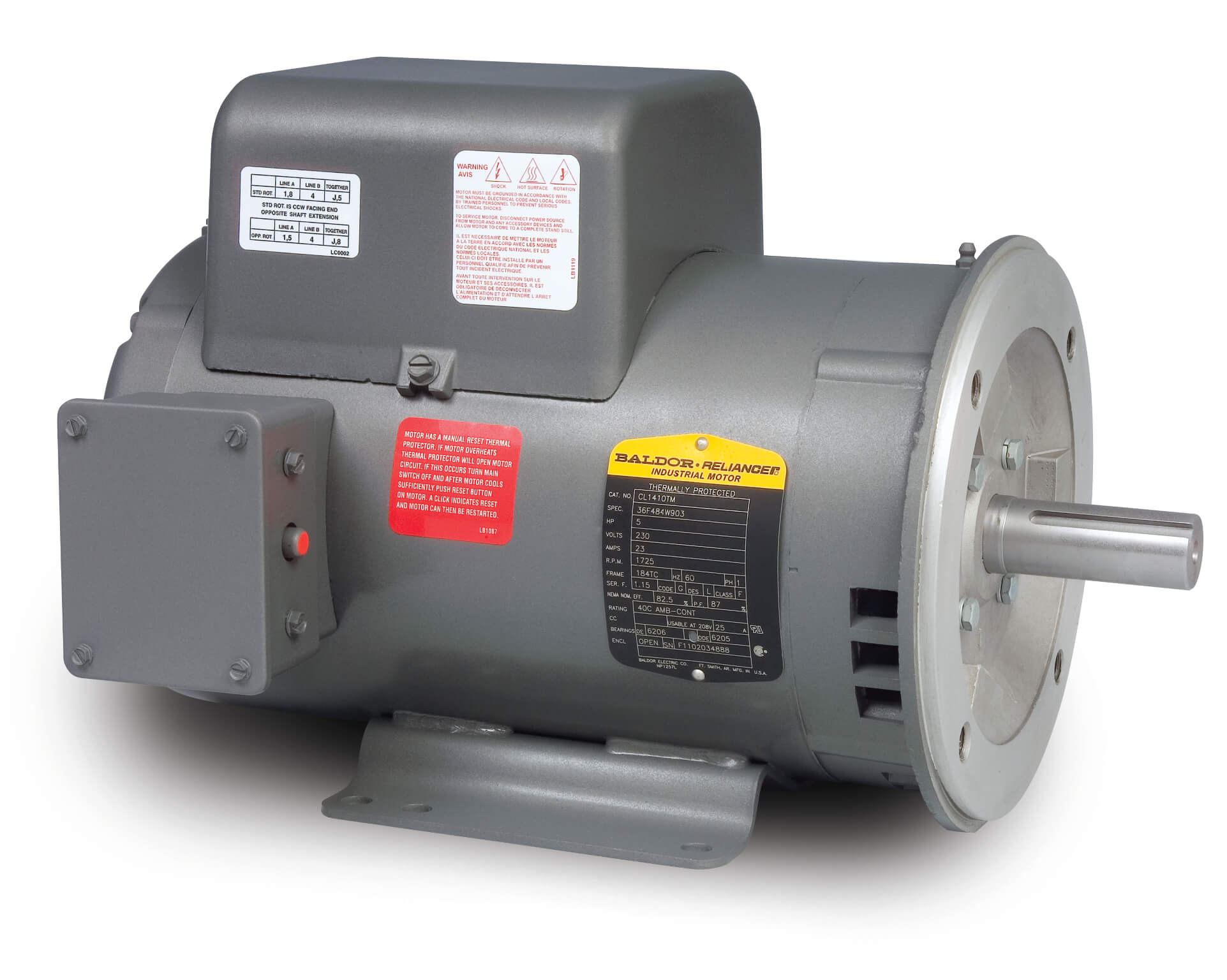

| CL1408TM | Open Air Over | 115/230V | 3 hp | 1.15 | - | 184TC | Class F | 1 1/8" | €1,696.37 | |
| CL1410TM | Open Dripproof | 230V | 5 hp | 1.15 | - | 184TC | Class F | 1 1/8" | €2,674.69 |
