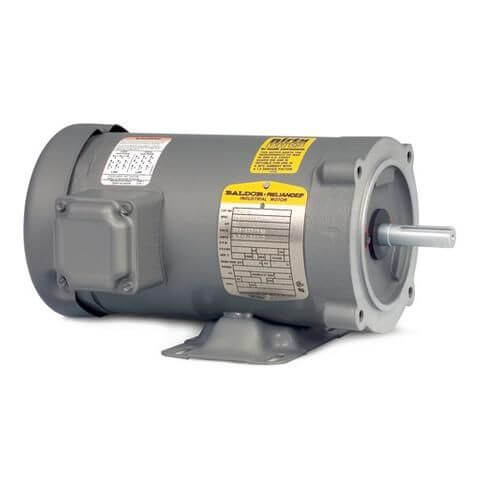

BALDOR MOTOR CEDM3545 Dirty Duty Plus Motor, 230/460V, 3600 RPM, 60 Hz, 1 hp, TEFC, 56C Frame
Get it by Wednesday, Dec 17
€1,414.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Severe Duty Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps @ Voltage | 1.4A @ 460V, 2.8A @ 208V, 2.8A @ 230V |
| Amps @ Volts | 2.8A @ 208V, 2.8A @ 230V, 1.4A @ 460V |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Constant Torque Speed Range | 6 |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 84% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | TEFC |
| Feedback Device | NO FEEDBACK |
| Frame | 56C |
| Frame Material | Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Front Face Code | Standard |
| Full Load Amps | 2.8A @ 208V, 2.8A @ 230V, 1.4A @ 460V |
| Grease Type | Polyrex EM |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 1.4A |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Duty |
| Kva Code | L |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Max. Rpm | 5400 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Lead Exit | Ko Box |
| Motor Lead Quantity/wire Size | 9 @ 18 AWG |
| Motor Lead Termination | Flying Leads |
| Motor Type | 3516M |
| Mounting Type | C Face, Foot Mounted |
| Nameplate Rpm | 3450 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Output @ Frequency | 1 hp @ 60 Hz |
| Overall Length | 12.23" |
| Phase | 3 |
| Power Factor | 82 |
| Product Datasheet | baldor-motor-cedm3545.pdf |
| Product Family | Dirty Duty Plus |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | C Face |
| Pulley Shaft Indicator | Standard |
| Rpm | 3450 RPM |
| Rpm Range | 3400-3600 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed Type | Single Speed |
| Starting Method | Direct On Line |
| Synchronous Rpm | 3600 RPM |
| Synchronous Rpm @ Frequency | 3600 RPM @ 60 Hz |
| Synchronous Speed | 3600 RPM |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 230/460V |
| Voltage @ Frequency | 460V @ 60 Hz, 230V @ 60 Hz |
| Xp Division | Not Applicable |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Constant Torque Speed Range: 6
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 84.00%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Inverter duty
- KVA Code: L
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: KO Box
- Motor Lead Quantity/Wire Size: 9 @ 18 AWG
- Product Family: DIRTY DUTY PLUS
- Pulley End Bearing Type: Sealed Bearing
- Pulley Face Code: C-Face
- Pulley Shaft Indicator: Standard
- Shaft Diameter: 0.625 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
Documentation:
Product Variants
| Model | Nameplate Rpm | Hp | Motor Type | Service Factor | Mounting Type | Shaft Dia. | Overall Length | Rpm Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CDM3538 | 1725 RPM | 1/2 hp | 3420M | 1.25 | C Face, Foot Mounted | 5/8" | 11.35" | 1700-1800 RPM | €1,021.64 | |
| CDM3539 | 1140 RPM | 1/2 hp | 3428M | 1.25 | - | 5/8" | 12.85" | 1100-1200 RPM | €1,325.15 | |
| CDM3543 | 1160 RPM | 3/4 hp | 3518M | 1.15 | C Face, Foot Mounted | 5/8" | 13.23" | 1100-1200 RPM | €1,344.01 | |
| CEDM3546 | 1760 RPM | 1 hp | 3520M | 1.15 | - | 5/8" | 12.23" | 1700-1800 RPM | €1,565.19 | |
| CEDM3550 | 3500 RPM | 1 1/2 hp | 3520M | 1.15 | - | 5/8" | 12.23" | 3400-3600 RPM | €1,546.35 | |
| CEDM3554 | 1760 RPM | 1 1/2 hp | 3526M | 1.15 | C Face, Foot Mounted | 5/8" | 13.23" | 1700-1800 RPM | €1,693.16 | |
| CEDM3555 | 3490 RPM | 2 hp | 3526M | 1.15 | C Face, Foot Mounted | 5/8" | 13.23" | 3400-3600 RPM | €1,654.46 |
