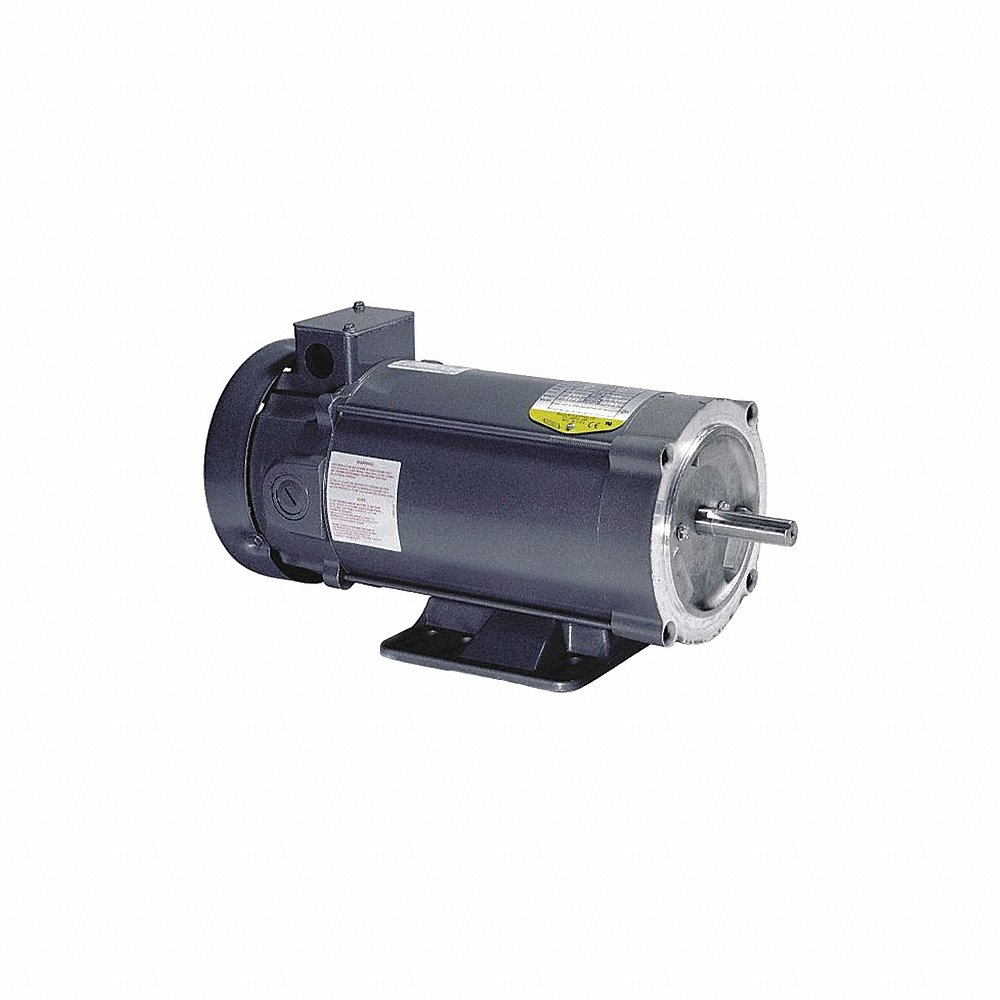

BALDOR MOTOR CDP3575 Permanent Magnet Motor, 180V DC, 1750 RPM, 1.5 hp, TEFC, 145TC Frame
Get it by Tuesday, Dec 23
10.00% off
€3,323.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Permanent Magnet Motor |
| Ac/dc | DC |
| Ambient Temp. | 40°C |
| Armature Amps | 7.7A |
| Armature Inertia | 30.342 lbs.-sq. ft. |
| Armature Voltage | 180V |
| Base | Rigid Base |
| Base Indicator | Rigid |
| Base Rpm | 1750 RPM |
| Base Type | Rigid Base |
| Brushes | 2/BP5000T15 |
| Class | Stock |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Design | TEFC |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 145TC |
| Frame Material | Steel |
| Frame Size | 145TC |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Motor Mounting Position | Horizontal |
| Motor Type | Brushed DC |
| Multiplier | L1 |
| Nema/iec | NEMA |
| Overall Length | 17.14" |
| Product Datasheet | baldor-motor-cdp3575.pdf |
| Proprietary | No |
| Revision | T |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Type | 3536P |
| Voltage | 180V |
Shipping Info:
| Ship weight (kg) | 29.25 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 44.45 |
| Ship width (cm) | 17.78 |
| HS code | 85013200 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Nameplate No.: NP0891L
Documentation:
Product Variants
| Model | Voltage | Hp | Rpm | Frame | Motor Application | Insulation Class | Motor Type | Armature Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CDP3306 | 180V | 1/4 hp | 1700-1800 RPM | 56C | - | Class F | Brushed DC | 1.3A | €1,116.07 | |
| CDP3310 | 90V | 1/4 hp | 1700-1800 RPM | 56C | General Purpose | Class F | DC | 2.5A | €1,092.44 | |
| CDP3316 | 180V | 1/3 hp | 1700-1800 RPM | 56C | General Purpose | Class F | DC | 1.6A | €1,170.06 | |
| CDP3320 | 90V | 1/3 hp | 1700-1800 RPM | 56C | General Purpose | Class F | DC | 3.2A | €1,234.60 | |
| CDP3326 | 180V | 1/2 hp | 1700-1800 RPM | 56C | General Purpose | Class F | Permanent Magnet DC | 2.5A | €1,293.92 | |
| CDP3330 | 90V | 1/2 hp | 1700-1800 RPM | 56C | General Purpose | Class F | Permanent Magnet DC | 4.8A | €1,293.92 | |
| CDP3335 | 90V | 1/2 hp | 2500 RPM | 56C | General Purpose | Class F | DC | 5A | €1,148.99 |
