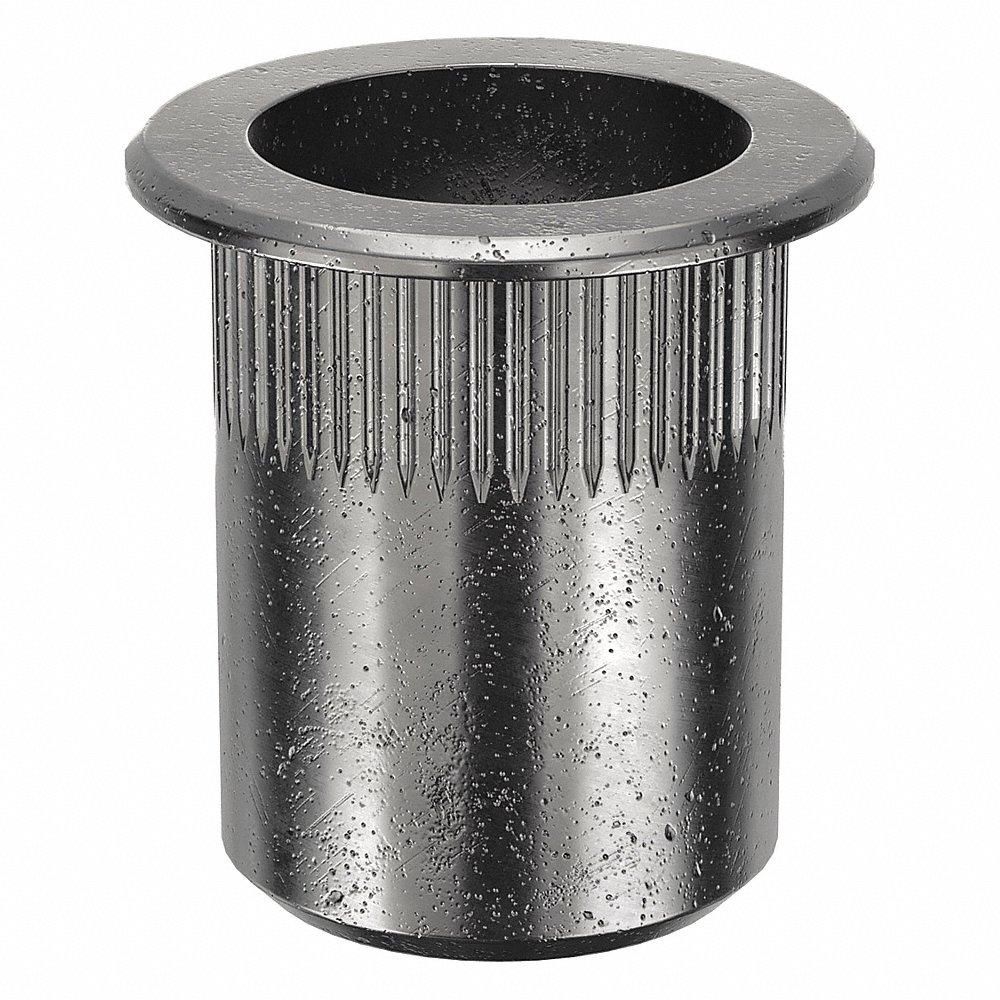

AVK ALS4T-1015-3.8 Rivet Nut, M10x1.5 Thread Size, Steel, 17.53 mm Lg., 0.7 mm To 3.8 mm Grip Rng
Get it by Friday, Feb 20
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€21.91 /pkg. of 10
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rivet Nut |
| Body Dia. | 13.46 mm |
| Body Length | 17.53 mm |
| Body Texture | Knurled |
| Body Type | Round |
| Compatible Material | Metal |
| Display Qty | 10 |
| Drill Bit Size | 13.5 mm |
| Drill Size | 17/32" |
| End Type | Open |
| Features | Corrosion Resistant |
| Flange Dia. | 17.4 mm |
| Flange Style | Flanged |
| Flange Thickness | 0.89 mm |
| Grip Range | 0.7 mm to 3.8 mm |
| Head Height | 0.89 mm |
| Insert Diameter | 13.5 mm |
| Insert Nut Type | Rivet Nut |
| Installation Method | Pneumatic, Hydraulic Tool, Spin, Spin Aro Pneumatic Tool |
| Installed Length | 11.94 mm |
| Length | 17.53 mm |
| Material | Steel |
| Material Grade/class | Grade 1010, Grade 1008 |
| Maximum Hole Diameter | 13.5 mm |
| Maximum Material Thickness | 3.8 mm |
| Minimum Material Thickness | 0.7 mm |
| Nut Type | Knurled |
| Overall Length | 18.4 mm |
| Rivet Type | Knurled Flanged |
| System Of Measurement | Metric |
| Thread Direction | Right Hand |
| Thread Fit | 6H |
| Thread Size | M10 x 1.5 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 12.7 |
| HS code | 7318160000 |
Product Variants
| Product | Model | Thread Size | Rivet Type | Flange Dia. | Finish | Drill Size | Head Height | Grade | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U69136.019.0080 | #10-24 | Flanged | 13/32" | Plain | 1/4" | 0.038" | - | 100 | €22.58 | |
 |
U69136.037.0200 | 3/8"-16 | Flanged | 0.78125" | Plain | 1/2" | 0.088" | - | 20 | €16.92 | |
 |
U69136.031.0125 | 5/16"-18 | Flanged | 0.665" | Plain | Z | 1/16" | - | 25 | €16.46 | |
 |
U69136.037.0115 | 3/8"-16 | Flanged | 0.78125" | Plain | 1/2" | 0.088" | - | 25 | €20.29 | |
 |
U69136.025.0138 | 1/4"-20 | Flanged | 0.475" | Plain | Q | 0.06" | - | 40 | €21.47 | |
 |
U69136.025.0200 | 1/4"-20 | Flanged | 0.475" | Plain | Q | 0.058" | - | 40 | €24.61 | |
 |
U69136.016.0120 | #8-32 | Flanged | 0.357" | Plain | #2 | 0.032" | - | 50 | €37.48 |
