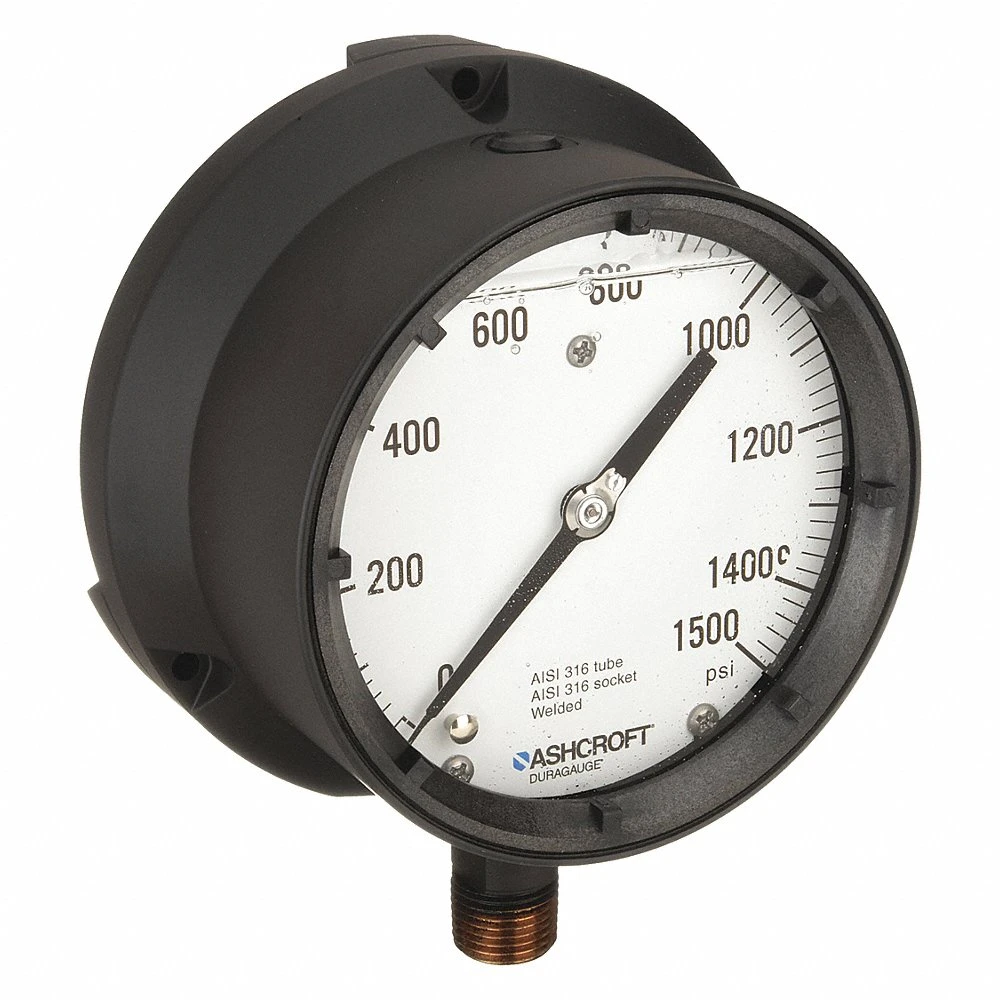

ASHCROFT 451379SSL04L1500# Process Pressure Gauge, 0 to 1500 PSI, White, 4 1/2 in Dial, 1/2 in NPT Male, Aluminium
Item: CN8XXBModel: 451379SSL04L1500#Cross Ref: 6WZV1
7 In Stock
Ships within 2 days via
10.00% off
€310.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | 20°F to 150°F |
| Ambient Temp. Range | +20°F to +150°F |
| Application | Process |
| Basic Gauge Case Material | Plastic |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Socket Material | Stainless Steel |
| Bezel Material | Polypropylene |
| Blowout Safety Back | Yes |
| Bolt Circle Dia. | 5 3/8" |
| Bolt Circle Diameter | 5.375" |
| Burst Pressure | 21400 psi |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Solid Front With Pressure Relief Back |
| Case Depth | 3 3/8" |
| Case Dia. | 5.812" |
| Case Finish | Epoxy Coated |
| Case Material | Epoxy Coated Aluminum |
| Cleaned For Oxygen Service | No |
| Color | Black |
| Compatible Process Media | Chemical And Petrochemical, Metals, Natural Gas And LNG, Oil And Gas, Water And Wastewater |
| Connection Location | Lower |
| Dial Color | White |
| Dial Face Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | Yes |
| For Use With | Media Compatible With Bronze |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 2A Process |
| Gauge Case Color | Black |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Aluminum |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/2" |
| Gauge Filled With | Glycerin |
| Gauge Mounting Method | Surface |
| Gauge Nominal Dial Size | 4 1/2" |
| Gauge Panel Mountable | Yes |
| Gauge Primary Range No.ed Graduations | 200 |
| Gauge Primary Range Units | Psi |
| Gauge Wetted Parts | Stainless Steel |
| Graduations | 200 psi |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | IP66, NEMA 4X |
| Lens Material | Glass |
| Lens Material - Gauge | Glass |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Manufacturer Warranty Length | 10 yrs. |
| Material Grade | Grade 316L |
| Mounting Hardware Included | No |
| Mounting Type | Flush Mount, Stem Mount, Surface Mount |
| Movement Material Grade | Grade 400 |
| Movement Type | Rotary |
| Nominal Dial Size | 4 1/2" |
| Non-sparking | No |
| Panel Mount Characteristics | 3 0.218 Dia Holes On 5-3/8 Dia Bolt Circle |
| Panel-mountable | No |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Range | 0 psi to 1500 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 1500 psi |
| Primary Pressure Scale Color | Black |
| Primary Scale Minor Graduations | 20 |
| Primary Scale Numeric Increments | 200 |
| Primary Scale Units | Psi |
| Process Connection | 1/2" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/2" |
| Process Connection Type | NPT |
| Process Temperature Range | +20°F to +150°F |
| Range | 0 psi to 1500 psi |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Sensor Type | Bourdon Tube |
| Series | 1379 Series |
| Smallest Graduation | 20 psi |
| Socket Grade | Grade 316L |
| Socket Material | Stainless Steel |
| Vibration Resistance | Liquid Filled |
| Wetted Materials | Stainless Steel |
| Wetted Parts Grade | Grade 316L |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 1.82 |
| Ship height (cm) | 8.57 |
| Ship length (cm) | 14.76 |
| Ship width (cm) | 14.76 |
| Country of Origin | US |
Product Variants
| Product | Model | Pressure Range Type | Vibration Resistance | Socket Material | Sensor Material | Lens Material | Ip Rating, Nema Rating | Liquid-filled Case | Removable Bezel | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
451279SS04LXLLVAC/60 | Compound | Dry Case Vibration Dampened | 316L Stainless Steel | 316L Stainless Steel | Glass | Not Rated | No | Yes | €338.82 | |
 |
451379SSL04LVAC/100# | Compound | Liquid Filled | Stainless Steel | Stainless Steel | Glass | IP66, NEMA 4X | Yes | No | €368.24 | |
 |
451379ASL04LVAC/100# | Compound | Liquid Filled | Brass | Bronze | Glass | IP66, NEMA 4X | Yes | No | €320.30 | |
 |
451379SSL04LVAC/150# | Compound | Liquid Filled | Stainless Steel | Stainless Steel | Glass | IP66, NEMA 4X | Yes | No | €368.24 | |
 |
451379SSL04LVAC/30# | Compound | Liquid Filled | Stainless Steel | Stainless Steel | Plastic | IP66, NEMA 4X | Yes | No | €368.24 | |
 |
451379ASL04LVAC/30# | Compound | Liquid Filled | Brass | Bronze | Glass | IP66, NEMA 4X | Yes | No | €333.20 | |
 |
451379SSL04LVAC/60# | Compound | - | Stainless Steel | Stainless Steel | Glass | IP66, NEMA 4X | Yes | No | €368.24 |
