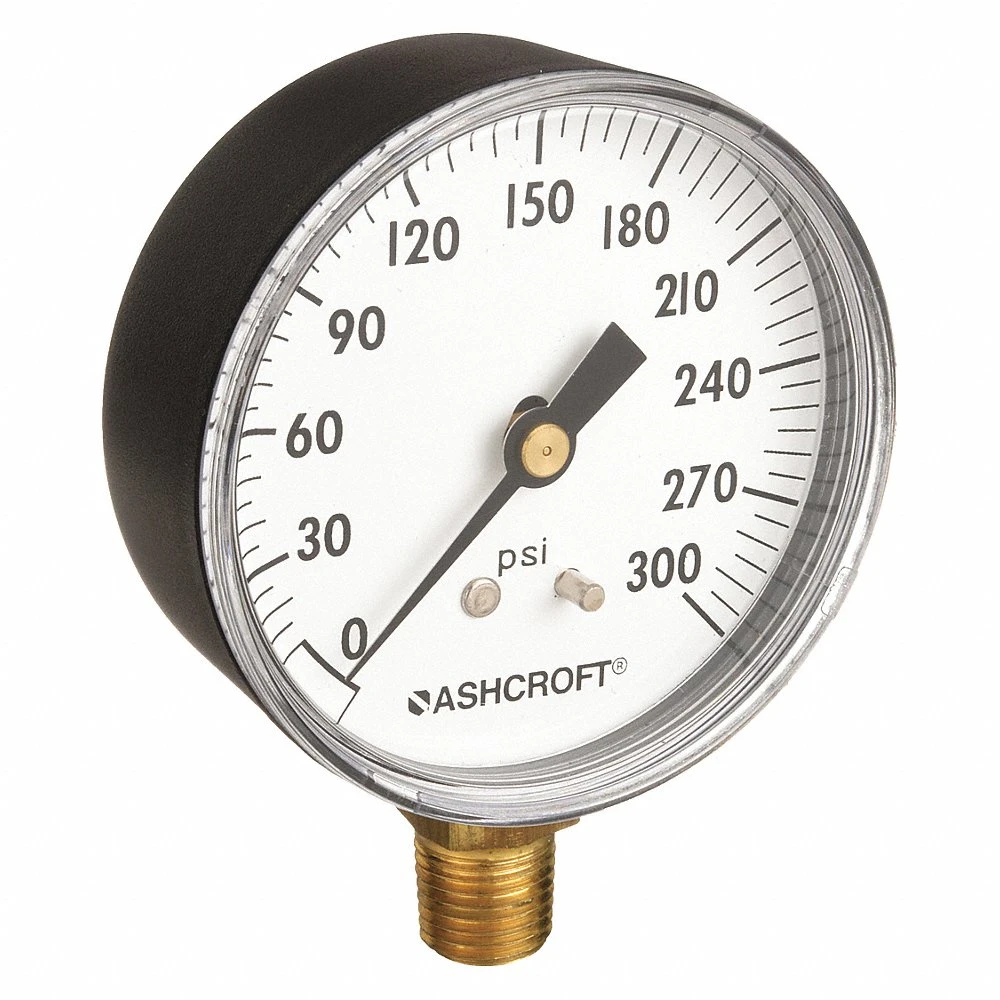

ASHCROFT 25W1005PH02L300# Industrial Pressure Gauge, Gen-Purpose Case, 0 to 300 PSI, 2 1/2 in Dial, 1/4 in NPT Male
Item: CN8XUCModel: 25W1005PH02L300#Cross Ref: 33HR14
7 In Stock
Ships within 2 days via
5.00% off
€25.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-3-2-3% , ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B , Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temp. | -40°F to +150°F |
| Ambient Operating Temp. Range | -40°F to +150°F |
| Ambient Temp. | -40°F to +150°F |
| Application | General Purpose |
| Basic Gauge Case Material | Plastic |
| Basic Gauge Lens Material | Plastic |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Basic Gauge Wetted Parts | Brass, Bronze |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Liquid | None |
| Case Material | Plastic |
| Cleaned For Oxygen Service | No |
| Color | Black |
| Compatible Process Media | Water |
| Connection Location | LOWER |
| Connection Size | 1/4" |
| Connection Type | MNPT |
| Dia. | 2.74" |
| Dial Color | White |
| Dial Size | 2 1/2" |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | General Purpose Case |
| Gauge Case Color | Black |
| Gauge Case Liquid | None |
| Gauge Case Material | ABS Plastic |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range No.ed Graduations | 30 |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Gauge Wetted Parts | Brass, Bronze |
| Graduations | 30 psi |
| Hazardous Location Rating | Not Rated |
| Included Mounting Hardware | No |
| Included Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Length | 3 1/2" |
| Lens Material | Polycarbonate |
| Lens Material Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Material | ABS |
| Max. Pressure | 300 psi |
| Mfr. Series | 1005P Series |
| Mounting Hardware Included | No |
| Nominal Dial Size | 2 1/2" |
| Non Sparking | No |
| Operating Temp. | -40°F to +150°F |
| Panel - Mountable | No |
| Panel-mountable | No |
| Pressure | 0 psi to 300 psi |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | General Purpose Dial Pressure Gauge , Industrial Pressure Gauge |
| Pressure Type | Pressure |
| Primary Pressure | 0 psi to 300 psi |
| Primary Range No.ed Graduations | 30 |
| Primary Range Smallest Graduation | 5 |
| Primary Range Units | Psi |
| Primary Range Values | 0 to 300 |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Range | 0 psi to 300 psi |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Bronze |
| Smallest Graduation | 5 psi |
| Socket Material | Brass |
| Type | Pressure Gauge |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Material | Brass, Bronze |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 6.96 |
| Ship width (cm) | 6.96 |
| Country of Origin | BR |
Product Variants
| Product | Model | Case Material | Lens Material | Sensor Material | Process Connection Size | Nominal Dial Size | Process Connection Location | Process Connection Type | Accuracy | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20W1005PH01B 60 PSI | ABS | Polycarbonate | Bronze | 1/8" | 2" | Center Back | NPT | +/-3-2-3% | €30.70 | |
 |
35W1005PH02LXULZG300#-8382 | Plastic | Polycarbonate | Phosphor Bronze | 1/4" | 3 1/2" | Bottom | NPT | +/-3-2-3% | €33.35 | |
 |
20W1005PH02LVAC | ABS | Polycarbonate | Bronze | 1/4" | 2" | Bottom | NPT | +/-3-2-3% | €33.46 | |
|
20W1005PH02LV/15# | ABS | Polycarbonate | Bronze | 1/4" | 2" | Bottom | NPT | +/-3-2-3% | €25.57 | |
|
20W1005PH02LV/30# | ABS | Polycarbonate | Bronze | 1/4" | 2" | Bottom | NPT | +/-3-2-3% | €25.57 | |
 |
20W1005PH02L15# | ABS | Polycarbonate | Bronze | 1/4" | 2" | Bottom | NPT | +/-3-2-3% | €25.57 | |
|
20W1005PH02L30# | ABS | Polycarbonate | Bronze | 1/4" | 2" | Bottom | NPT | +/-3-2-3% | €24.26 |
