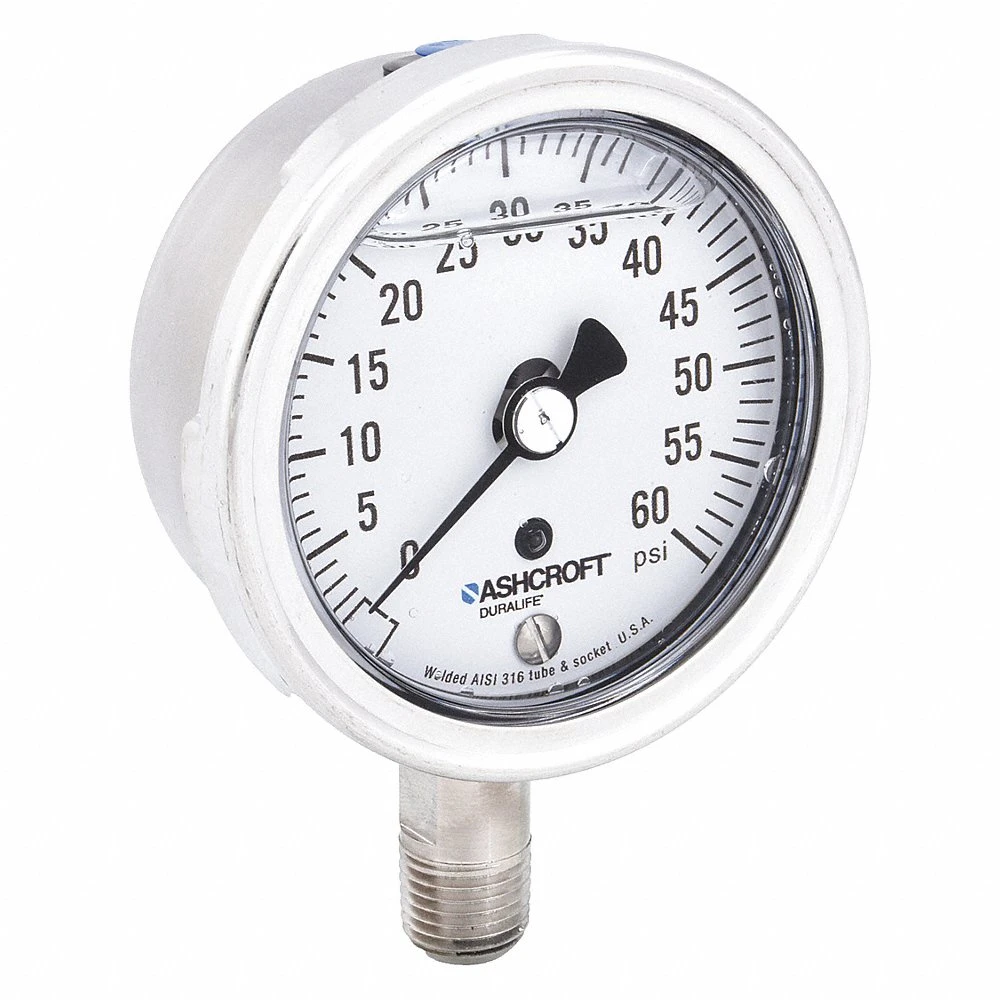

ASHCROFT 251009SWL02L60# Industrial Pressure Gauge, 0 To 60 PSI, 2 1/2 Inch Dial, Liquid-Filled, 1/4 Inch Npt Male
Item: CN8XUQModel: 251009SWL02L60#Cross Ref: 33HT27
7 In Stock
Ships within 2 days via
10.00% off
€165.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -1.5% to +1.5% |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range | 20°F to 150°F |
| Ambient Temp. Range | +20°F to +150°F |
| Application | Autoclave, Boilers, Equipment Skids, Hydraulics, OEM Applications, Pneumatics, Pumps, Refrigeration, Severe Ambient Conditions, Water Pressure Testing |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Socket Material | Stainless Steel |
| Bezel Material | Stainless Steel |
| Bezel Material Grade | Grade 304 |
| Bezel Mounting Type | Bayonet |
| Blowout Safety Back | No |
| Burst Pressure | 1600 psi |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Depth | 1 1/4" |
| Case Dia. | 2 3/4" |
| Case Diameter | 2.75" |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Color | Silver |
| Compatible Process Media | Deionized Water |
| Connection Location | Lower |
| Dial Color | White |
| Dial Face Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 1A Industrial |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Wetted Parts | Stainless Steel |
| Graduations | 5 psi |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | Yes |
| Ip Rating, Nema Rating | IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed) |
| Lens Material - Gauge | Plastic |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Manufacturer Warranty Length | 5 yrs. |
| Material Grade | Grade 316L |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Nominal Dial Size | 2 1/2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 60 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 60 psi |
| Primary Pressure Scale Color | Black |
| Primary Scale Minor Graduations | 1 |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | +20°F to +200°F |
| Range | 0 psi to 60 psi |
| Removable Bezel | Yes |
| Scale Type | Single |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Sensor Type | Bourdon Tube |
| Series | 1009 Series |
| Smallest Graduation | 1 psi |
| Socket Grade | Grade 316L |
| Socket Material | Stainless Steel |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Grade | Grade 316L |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 6.99 |
| Country of Origin | US |
Product Variants
| Model | Process Connection Location | Nominal Dial Size | Pressure Range Type | Vibration Resistance | Accuracy | Case Color | Lens Material | Socket Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 251009SW02LXLL 200# | Bottom | 2 1/2" | Pressure | Dry Case Vibration Dampened | -1% to +1% | Metallic | Polycarbonate | 316L Stainless Steel | €177.25 | |
| 251009SW02LXLLVAC | Bottom | 2 1/2" | Vacuum | Dry Case Vibration Dampened | -1% to +1% | Metallic | Polycarbonate | 316L Stainless Steel | €177.25 | |
| 251009SW02LXLL15 | Bottom | 2 1/2" | Pressure | Dry Case Vibration Dampened | -1% to +1% | Metallic | Polycarbonate | 316L Stainless Steel | €177.25 | |
| 251009SW02LXLL5000 | Bottom | 2 1/2" | Pressure | Dry Case Vibration Dampened | -1% to +1% | Metallic | Polycarbonate | 316L Stainless Steel | €197.45 | |
| 251009SW02BXLLVAC | Lower Back | 2 1/2" | Vacuum | - | -1% to +1% | Metallic | Polycarbonate | - | €181.31 | |
| 251009SW02BXLLV/30 | Lower Back | 2 1/2" | Compound | Dry Case Vibration Dampened | -1% to +1% | Metallic | Polycarbonate | 316L Stainless Steel | €181.31 | |
| 251009SW02BXLL15 | Lower Back | 2 1/2" | Pressure | - | -1% to +1% | Metallic | Plastic | - | €181.31 |
