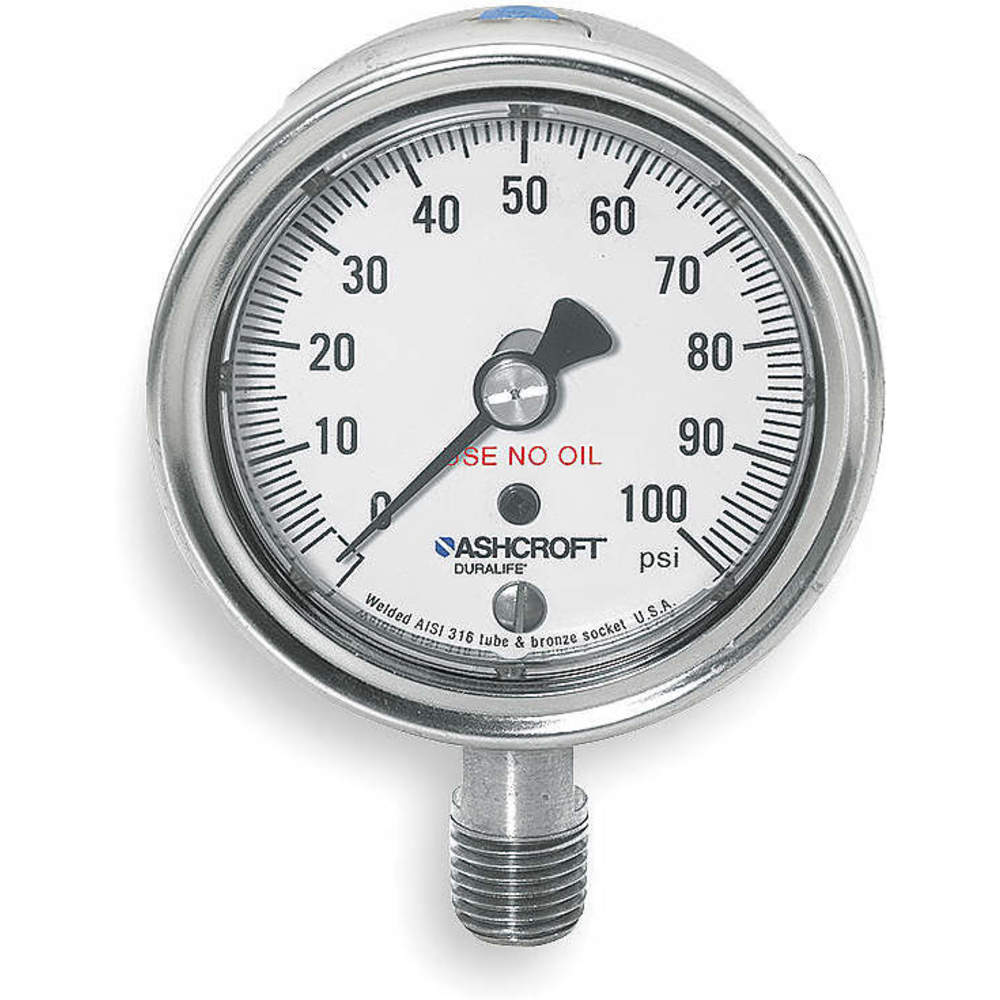

ASHCROFT 251009SW02LX6B100 Industrial Pressure Gauge, Cleaned for Oxygen Service, 0 to 100 PSI, 2 1/2 in Dial, Bottom
Item: AD7GLTModel: 251009SW02LX6B100Cross Ref: 4EFU2
7 In Stock
Ships within 2 days via
5.00% off
€183.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -1% to +1% |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temp. | -40°F to +200°F |
| Application | Autoclave, Boilers, Equipment Skids, Hydraulics, OEM Applications, Pneumatics, Pumps, Refrigeration, Severe Ambient Conditions, Water Pressure Testing |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Lens Material | Plastic |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Socket Material | Stainless Steel |
| Basic Gauge Wetted Parts | Stainless Steel |
| Bezel Material | 304 Stainless Steel |
| Bezel Material Grade | Grade 304 |
| Bezel Mounting Type | Bayonet |
| Blowout Safety Back | No |
| Burst Pressure | 1100 psi |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Metallic , Silver |
| Case Construction | Welded Joint |
| Case Depth | 1 1/4" |
| Case Dia. | 2 3/4" , 2.75" |
| Case Material | Stainless Steel |
| Case Material Grade | Grade 304 |
| Cleaned For Oxygen Service | Yes |
| Color | Silver |
| Compatible Process Media | Deionized Water |
| Connection Location | LOWER |
| Connection Size | 1/4" |
| Connection Type | MNPT |
| Dia. | 2 3/4" |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dial Material | Aluminum |
| Dial Size | 2 1/2" |
| Freeze Resistant Movement | No |
| Gauge Application | Oxygen Service Cleaned, Pumps, Compressors, Boilers, Equipment Skids, Specialized OEM Equipment, Hydraulics, pneumatics, Severe Ambient Conditions |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range No.ed Graduations | 10 |
| Gauge Primary Range Units | Psi |
| Gauge Type | Oxygen Service Cleaned |
| Grade | Grade 316 |
| Graduations | 10 psi |
| Hazardous Location Rating | Not Rated |
| Included Mounting Hardware | No |
| Ip/nema Rating | IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed) |
| Lens Material | Polycarbonate |
| Liquid Filled | No |
| Material | Stainless Steel |
| Material Grade | Grade 304 , Grade 316L |
| Max. Pressure | 100 psi |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Nominal Dial Size | 2 1/2" |
| Non Sparking | No |
| Operating Temp. | -40°F to +150°F |
| Panel - Mountable | No |
| Panel-mountable | No |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 100 psi |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Type | Pressure |
| Primary Pressure | 0 psi to 100 psi |
| Primary Pressure Scale Color | Black |
| Primary Range No.ed Graduations | 10 |
| Primary Range Smallest Graduation | 1 |
| Primary Range Units | Psi |
| Primary Range Values | 0 to 100 |
| Primary Scale Minor Graduations | 1, 2 |
| Primary Scale Numeric Increments | 10 |
| Primary Scale Units | PSI |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temp. | -40°F to +250°F |
| Range | 0 psi to 100 psi |
| Removable Bezel | Yes |
| Ring Material | Stainless Steel |
| Scale Type | Single |
| Sensor Material | 316L Stainless Steel |
| Sensor Material Grade | Grade 316 |
| Sensor Type | Bourdon Tube |
| Series | 1009 Series |
| Smallest Graduation | 1 psi |
| Socket Material | 316L Stainless Steel |
| Socket Material Grade | Grade 316 |
| Tube Grade | Grade 316 |
| Type | Pressure Gauge |
| Wetted Parts Grade | Grade 316L |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 6.99 |
| HS code | 9026208000 |
| Country of Origin | US |
Product Details:
- Characteristics: PLUS Performance
Product Variants
| Model | Lens Material | Socket Material | Case Color | Sensor Material | Process Connection Size | Nominal Dial Size | Process Connection Location | Process Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 251009SW02LXLL 200# | Polycarbonate | 316L Stainless Steel | Silver | 316L Stainless Steel | 1/4" | 2 1/2" | Bottom | NPT | €177.25 | |
| 251009SW02LXLLVAC | Polycarbonate | 316L Stainless Steel | Metallic | 316L Stainless Steel | 1/4" | 2 1/2" | Bottom | NPT | €177.25 | |
| 251009SW02LXLL15 | Polycarbonate | 316L Stainless Steel | Silver | 316L Stainless Steel | 1/4" | 2 1/2" | Bottom | NPT | €177.25 | |
| 251009SW02LXLL5000 | Polycarbonate | 316L Stainless Steel | Silver | 316L Stainless Steel | 1/4" | 2 1/2" | Bottom | NPT | €197.45 | |
| 251009SW02BXLLVAC | Polycarbonate | Stainless Steel | Metallic | Stainless Steel | 1/4" | 2 1/2" | Lower Back | MNPT | €181.31 | |
| 251009SW02BXLLV/30 | Polycarbonate | 316L Stainless Steel | Silver | 316L Stainless Steel | 1/4" | 2 1/2" | Lower Back | NPT | €181.31 | |
| 251009SW02BXLL15 | Polycarbonate | Stainless Steel | Silver | Stainless Steel | 1/4" | 2 1/2" | Lower Back | NPT | €181.31 |
