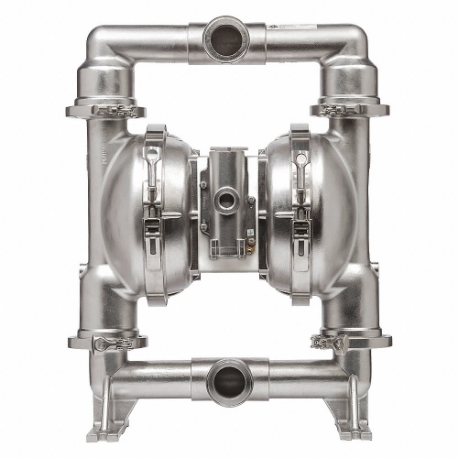

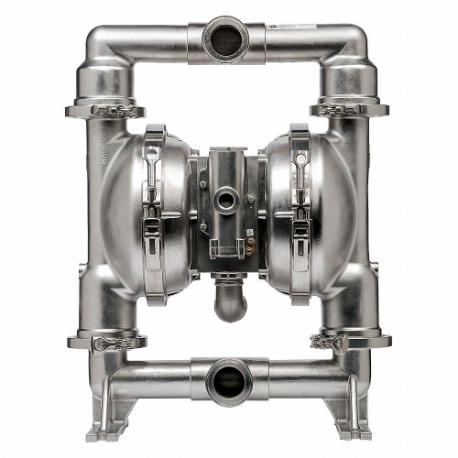

ARO SD20S-CSS-STT-A Double Diaphragm Pump, Air, 316 Stainless Steel, 2 Inch Fluid Connection Size, Tbv, Ptfe
Get it by Thursday, Dec 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Check Seat Material | Stainless Steel |
| Connection Size | 2" |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Fluid Connection Inlet Type | FNPT |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Includes | Ball Valve |
| Inlet Size | 2" |
| Inlet Type | Tri Clamp |
| Manifold Connection Type | Flanged |
| Max. Flow Rate | 54 GPM |
| Max. Media Temp. | 225°F |
| Max. Outlet Pressure | 120 psi |
| Max. Solid Dia. | 3/25" |
| Min. Media Temp. | 40°F |
| Outlet Type | Tri Clamp |
| Overall Height | 16" |
| Overall Length | 11" |
| Overall Width | 11" |
| Power Source | Air |
| Rated Air Pressure | 120 psi |
| Series | SD Series |
| Valve Material | PTFE |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 76.5 |
| Ship height (cm) | 40.64 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 27.94 |
| Country of Origin | CN |
Product Variants
| Product | Model | Diaphragm Material | Valve Material | Min. Media Temp. | Housing Material | Max. Flow Rate | Max. Outlet Pressure | Check Seat Material | Max. Solid Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD20S-CSS-SMM-A | Santoprene | Santoprene | -40°F | Stainless Steel | 54 GPM | 120 psi | Stainless Steel | 3/25" | - | RFQ
|
 |
SD20R-CSS-STT-A | PTFE | PTFE | 40°F | Stainless Steel | 54 GPM | 120 psi | Stainless Steel | 3/25" | - | RFQ
|
