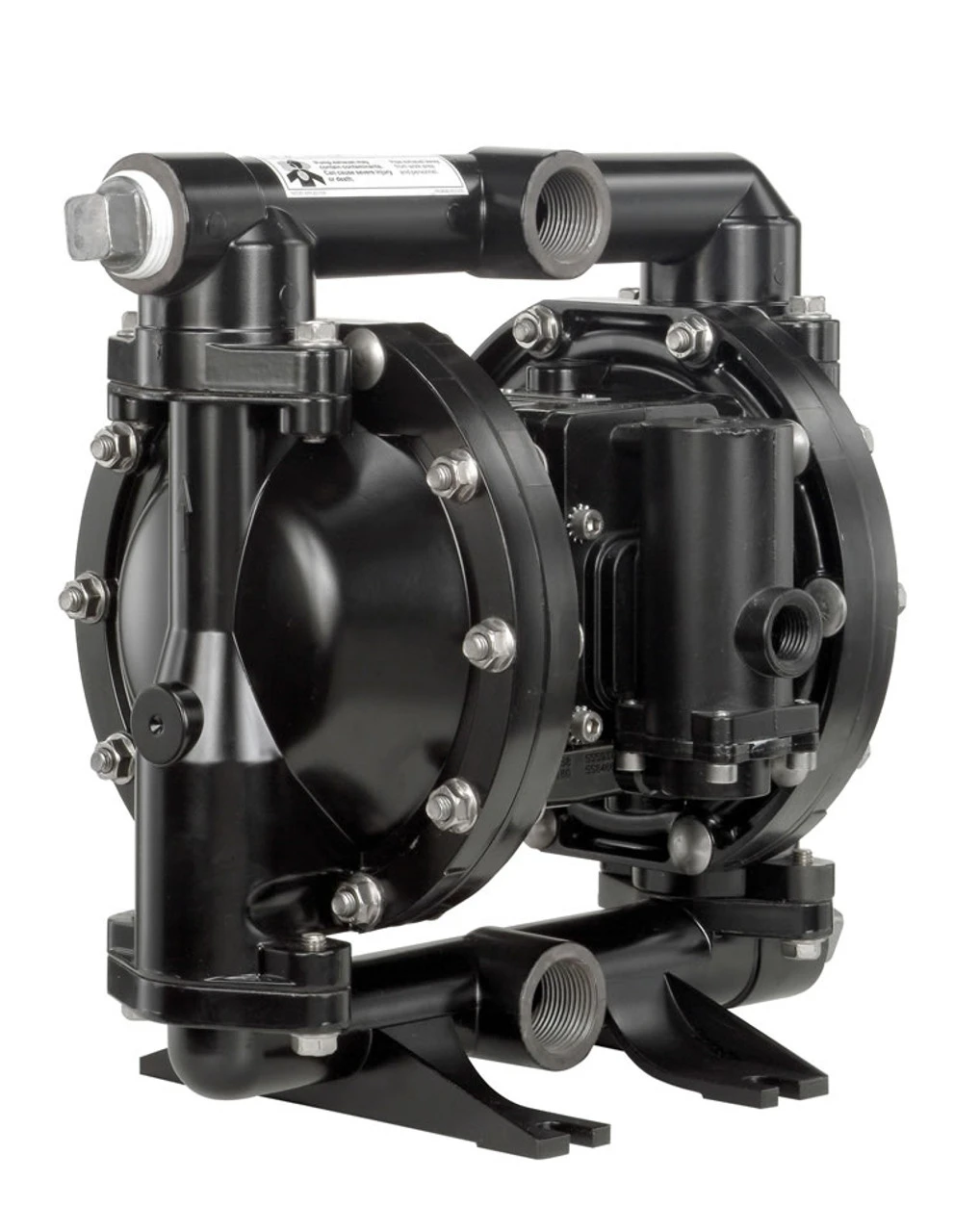

ARO PW10A-AAP-FTT Diaphragm Pump 1-1/2 Npt 60 Gpm
Get it by Thursday, Dec 18
10.00% off
€3,239.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 50 SCFM |
| Air Inlet | 1 1/2" NPT |
| Air Inlet Size | 1/2" FNPT |
| Ball Material | PTFE |
| Center Section Material | Aluminum |
| Check Seat Material | Aluminum |
| Compatible Chemicals | Alcohol, Antifreeze, Diesel Exhaust Fluid, Oil-Based Paint, Oils, Water |
| Connection Size | 1 1/2" |
| Connection Type | NPTF |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 58.5 GPM |
| Flow Rate @ 120 Psi | 62 GPM |
| Flow Rate @ 40 Psi | 33 GPM |
| Flow Rate @ 50 Psi | 41 GPM |
| Flow Rate @ 60 Psi | 45.8 GPM |
| Flow Rate @ 70 Psi | 49 GPM |
| Flow Rate @ 80 Psi | 53.75 GPM |
| Flow Rate @ 90 Psi | 56.6 GPM |
| Fluid Intake Connection | 1 1/2" Nptf |
| Fluid Outlet Connection | 1 1/2" Nptf |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 120 psi |
| Max. Flow Gpm | 60 |
| Max. Flow Rate | 62 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 225°F |
| Max. Operating Pressure | 120 psi |
| Max. Solid Dia. | 0.13" |
| Max. Viscosity | 40000 cPS |
| Media Discharge Location | Top |
| Media Intake Location | Center |
| Min. Media Temp. | 40°F |
| Mounting Hardware Material | Steel |
| Mounting Hardware Material | Plated Steel |
| Operation Type | Air Operated |
| Overall Height | 16.9" |
| Overall Length | 11.7" |
| Overall Width | 14" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 120 psi |
| Self Priming | Yes |
| Self Priming Dry | 19 ft. |
| Self-priming Dry | 19 ft. |
| Series | PW10A Series |
| Series Family | Pw |
| Standards | Atex Certified, Ce, Reach, Rohs |
| Valve Material | PTFE |
| Valve Type | Ball |
| Warranty | 5 yrs. |
Shipping Info:
| Ship weight (kg) | 14.68 |
| Ship height (cm) | 42.93 |
| Ship length (cm) | 29.72 |
| Ship width (cm) | 35.56 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Diaphragm Material | Valve Material | Check Seat Material | Max. Media Temp. | Min. Media Temp. | Ball Material | Inlet Size | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
PW10A-AAP-AAA | Santoprene | Santoprene | Santoprene | 225°F | -40°F | Santoprene | 1 1/2" | Aluminum | €2,705.53 | |
|
PW10A-AAP-FVV | Viton | Viton | Aluminum | 225°F | 40°F | Viton | 1" | Aluminum | €3,261.87 | |
|
PW10A-AAP-GGG | Buna N | Buna N | Buna N | 180°F | 10°F | Nitrile | 1 1/2" | Aluminum | €2,719.13 | |
 |
PW10A-AAS-FGG | - | - | - | - | - | - | - | - | €2,627.58 | |
 |
PW10A-AAS-FTT | - | - | - | - | - | - | - | - | €3,010.33 |
