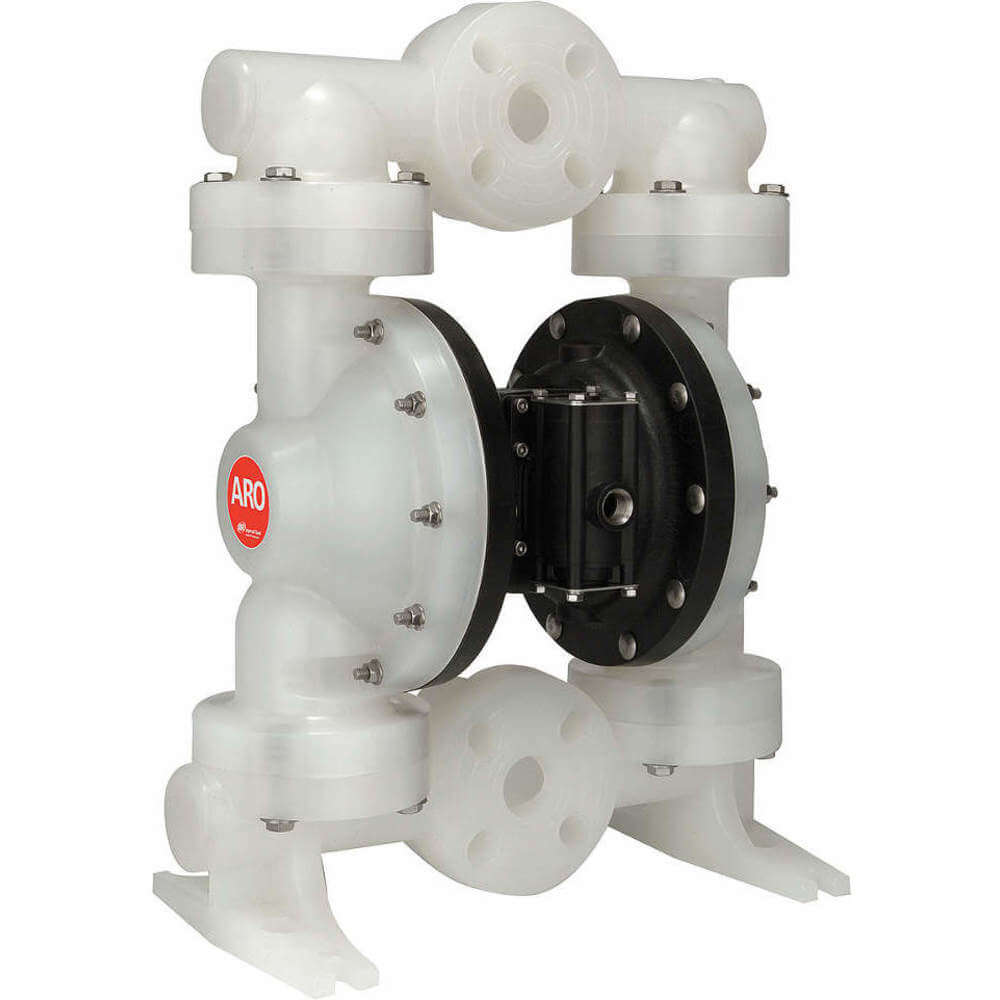

ARO PD15P-YPS-PAA Diaphragm Pump Air Operated 1-1/2 Inch
Get it by Friday, Dec 19
10.00% off
€6,187.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 100 SCFM |
| Air Inlet | 1/2" Flange |
| Air Inlet Size | 1/2" FNPT |
| Ball Material | Santoprene |
| Center Section Material | Plastic |
| Check Seat Material | Polypropylene |
| Compatible Chemicals | Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water |
| Connection Size | 1 1/2" |
| Connection Type | Flanged, NPT |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 121.5 GPM |
| Flow Rate @ 120 Psi | 126 GPM |
| Flow Rate @ 40 Psi | 71.5 GPM |
| Flow Rate @ 50 Psi | 84.8 GPM |
| Flow Rate @ 60 Psi | 92.7 GPM |
| Flow Rate @ 70 Psi | 98 GPM |
| Flow Rate @ 80 Psi | 109.75 GPM |
| Flow Rate @ 90 Psi | 116.8 GPM |
| Fluid Intake Connection | 1 1/2" Flange |
| Fluid Outlet Connection | 1 1/2" Flange |
| For Use With Potable Systems | Yes |
| Housing Material | Polypropylene |
| Manifold Connection | Single Port |
| Manifold Connection Type | Flange |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 120 psi |
| Max. Flow Gpm | 123 |
| Max. Flow Rate | 126 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 225°F |
| Max. Operating Pressure | 120 psi |
| Max. Solid Dia. | 1/4" |
| Max. Viscosity | 40000 cPS |
| Media Discharge Location | Center |
| Media Intake Location | Center |
| Min. Media Temp. | -40°F |
| Mounting Hardware Material | Stainless Steel |
| Npshr | 24.5 ft. |
| Operation Type | Air Operated |
| Overall Height | 24 1/2" |
| Overall Length | 20.9" |
| Overall Width | 14.1" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 120 psi |
| Self Priming | Yes |
| Self Priming Dry | 14 ft. |
| Self-priming Dry | 14 ft. |
| Series | PX15P Series |
| Series Family | Exp |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Warranty | 5 yrs. |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 62.23 |
| Ship length (cm) | 53.09 |
| Ship width (cm) | 35.81 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Diaphragm Material | Valve Material | Min. Media Temp. | Ball Material | Flow Rate @ 50 Psi | Media Discharge Location | Media Intake Location | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PD15P-FPS-PAA | Santoprene | Santoprene | -40°F | Santoprene | 84.75 GPM | Side | Side | Polypropylene | €6,874.50 | |
 |
PD15P-FPS-PTT | PTFE | PTFE | 40°F | PTFE | 84.75 GPM | Side | Side | Polypropylene | €8,011.22 | |
|
PD15P-YPS-PTT | PTFE | PTFE | 40°F | PTFE | 84.75 GPM | Center | Center | Polypropylene | €8,011.22 |
