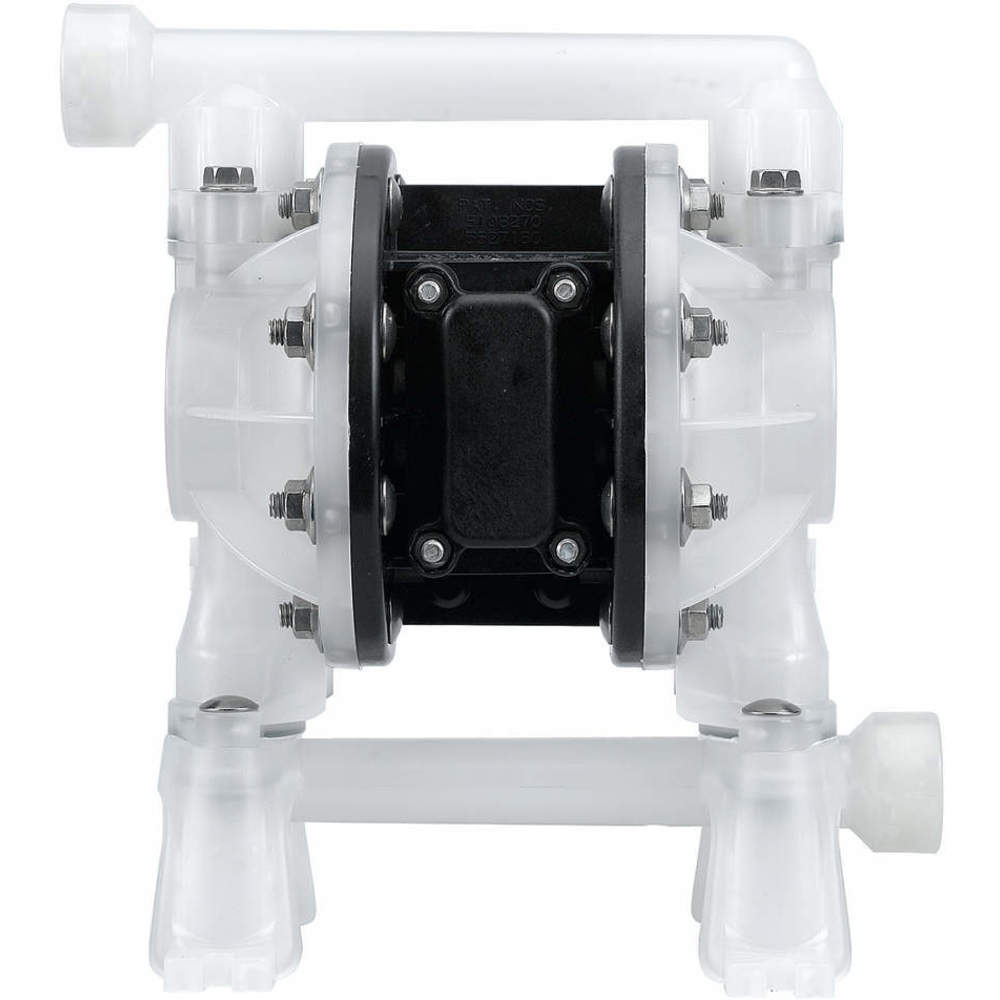

ARO PD07P-APS-PTT Double Diaphragm Pump Air Operated 150f
Item: AC3MWWModel: PD07P-APS-PTTCross Ref: 2UV60
7 In Stock
Ships within 2 days via
5.00% off
€2,026.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 20 SCFM |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Ball Material | PTFE |
| Center Section Material | Plastic |
| Check Seat Material | Polypropylene |
| Connection Size | 3/4" |
| Connection Type | NPTF |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 16.3 GPM |
| Flow Rate @ 40 Psi | 12.5 GPM |
| Flow Rate @ 50 Psi | 14 GPM |
| Flow Rate @ 60 Psi | 14.9 GPM |
| Flow Rate @ 70 Psi | 15.5 GPM |
| Flow Rate @ 80 Psi | 15.9 GPM |
| Flow Rate @ 90 Psi | 16.1 GPM |
| Fluid Intake Connection | 3/4" |
| Fluid Intake Connection Type | NPT |
| Fluid Outlet Connection | 3/4" Nptf |
| For Use With Potable Systems | Yes |
| Housing Material | Polypropylene |
| Inlet Size | 1/4" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Gpm | 15 |
| Max. Flow Rate | 16.3 GPM |
| Max. Head | 230 ft. |
| Max. Media Temp. | 225°F |
| Max. Operating Pressure | 100 psi |
| Max. Solid Dia. | 0.13" |
| Max. Viscosity | 15000 cPS |
| Media Discharge Location | Side |
| Media Intake Location | Side |
| Min. Media Temp. | 40°F |
| Mounting Hardware Material | Stainless Steel |
| Npshr | 35 ft. |
| Operation Type | Air Operated |
| Overall Height | 11.9" |
| Overall Length | 9.3" |
| Overall Width | 6.7" |
| Power Source | Air |
| Priming | Self Priming |
| Product Datasheet | aro-pd07p-aps-pcc.pdf |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Self Priming Dry | 10 ft. |
| Self Priming Wet | 15 ft. |
| Self-priming Dry | 10 ft. |
| Self-priming Wet | 15 ft. |
| Series | PD07R Series |
| Series Family | Compact |
| Valve Material | PTFE |
| Valve Type | Ball |
| Warranty | 5 yrs. |
Shipping Info:
| Ship weight (kg) | 3.61 |
| Ship height (cm) | 30.23 |
| Ship length (cm) | 23.62 |
| Ship width (cm) | 17.02 |
| HS code | 8413500050 |
| Country of Origin | US |
