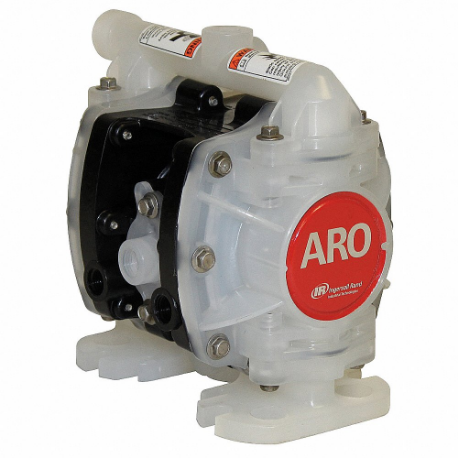

ARO PD01P-HKS-KTT-A Double Diaphragm Pump, Air, Polypropylene, Bolt, 1/4 Inch Fluid Connection Size, Npt, Ptfe
Item: CN8VRWModel: PD01P-HKS-KTT-ACross Ref: 19RU85
7 In Stock
Ships within 2 days via
5.00% off
€1,236.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 5 SCFM |
| Air Pressure | 125 psi |
| Center Section Material | Plastic |
| Check Seat Material | PVDF |
| Connection Size | 1/4" |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Flow Rate @ 100 Psi | 5.3 GPM |
| Flow Rate @ 120 Psi | 5.4 GPM |
| Flow Rate @ 30 Psi | 4 GPM |
| Flow Rate @ 40 Psi | 4.5 GPM |
| Flow Rate @ 50 Psi | 4.7 GPM |
| Flow Rate @ 60 Psi | 4.9 GPM |
| Flow Rate @ 70 Psi | 5.1 GPM |
| Flow Rate @ 80 Psi | 5.2 GPM |
| Flow Rate @ 90 Psi | 5.3 GPM |
| Fluid Connection Inlet Type | NPT |
| For Use With Potable Systems | No |
| Housing Material | Polypropylene |
| Included | Muffler |
| Inlet Size | 1/4" |
| Inlet Type | NPT |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Max. Flow Rate | 5.4 GPM |
| Max. Head | 125 ft. |
| Max. Media Temp. | 225°F |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 0.06" |
| Max. Viscosity | 500 cPS |
| Media Discharge Location | Side |
| Media Intake Location | Side |
| Min. Media Temp. | 40°F |
| Mounting Hardware Material | Steel |
| Mounting Hardware Material | Plated Steel |
| Outlet Type | NPTF |
| Overall Height | 7 1/5" |
| Overall Length | 7 1/5" |
| Overall Width | 5 3/5" |
| Power Source | Air |
| Pump Assembly Type | Bolt |
| Self Priming | Yes |
| Series | PX01X Series |
| Valve Material | PTFE |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 2.19 |
| Ship height (cm) | 18.29 |
| Ship length (cm) | 18.29 |
| Ship width (cm) | 14.22 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Max. Flow Rate | Max. Media Temp. | Diaphragm Material | Overall Width | Wetted Material | Outlet Size | Max. Solid Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PD01P-HPS-PTT-A | Polypropylene | 5.4 GPM | 225°F | PTFE | 5 3/5" | - | - | 0.06" | €1,005.95 | |
 |
DAB05-PPUU-2-F | Polypropylene | 14.4 GPM | - | - | - | - | - | - | €1,569.43 | |
|
DAB05-PPAA-2-E | Polypropylene | 14.4 GPM | - | - | - | Polypropylene, Santoprene | - | - | €1,760.96 | |
|
DAB05-SSTT-2-H | Stainless Steel | 12 GPM | - | - | - | Stainless Steel, PTFE | 5/8" | - | €3,676.31 | |
|
DAB05-ASCC-2-G | Aluminum | 12 GPM | - | - | - | Aluminum, Hytrel | 1/2" | - | €1,946.83 | |
 |
666053-388 | Polypropylene | 13.1 GPM | 150°F | Polyurethane | 6 1/2" | - | - | 0.09" | €1,643.36 | |
 |
66605J-344 | Polypropylene | 13.1 GPM | 225°F | PTFE | 6 1/2" | - | - | 0.09" | €1,990.19 |
