ARO K213LM Manual Air Control Valve, 3/8 Inch Valve Port Size, NPT, Lever/Manual
Item: CN8VVDModel: K213LMCross Ref: 4HN65
7 In Stock
Ships within 2 days via
10.00% off
€638.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuation Force @ 125 Psi | 1.3 lbs. |
| Actuation Force @ 50 Psi | 1.3 lbs. |
| Actuator Color | Gray |
| Actuator Type | Lever |
| Actuator/return | Lever/Manual |
| Body Material | Aluminum |
| Body Style | Side Ported |
| Coefficient Of Volume | 2.3 |
| Connection | NPT |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 3/8" |
| Exhaust Port Connection Type | Threaded |
| Fail Position | Open, Closed |
| Flow Rate - Maximum | 83 SCFM |
| For Media | Air |
| Lubrication | Lubrication Required |
| Max. Cfm | 83 CFM |
| Max. Pressure | 150 psi |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 0 psi |
| Operating Temperature - Maximum | 180°F |
| Operating Temperature - Minimum | -10°F |
| Overall Height | 6 7/8" |
| Overall Length | 6 7/16" |
| Overall Width | 3 1/2" |
| Product Type | Manual Air Control Valve |
| Return Action | Manual Return |
| Seal Material | Buna-N |
| Series | K |
| Spool Material | Aluminum |
| Temp. Range | -10°F to +180°F |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Open |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 3/8" |
| Valve Port Connection Type | NPT |
| Valve Port Size | 3/8" |
| Valve Type | Spool |
| Valve Ways And Positions | 4-Way/2-Position |
Shipping Info:
| Ship weight (kg) | 1.49 |
| Ship height (cm) | 16.35 |
| Ship length (cm) | 16.35 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Coefficient Of Volume | Overall Height | Overall Width | Overall Length | Body Style | Valve Ways And Positions | Pipe Size | Operational Pressure Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

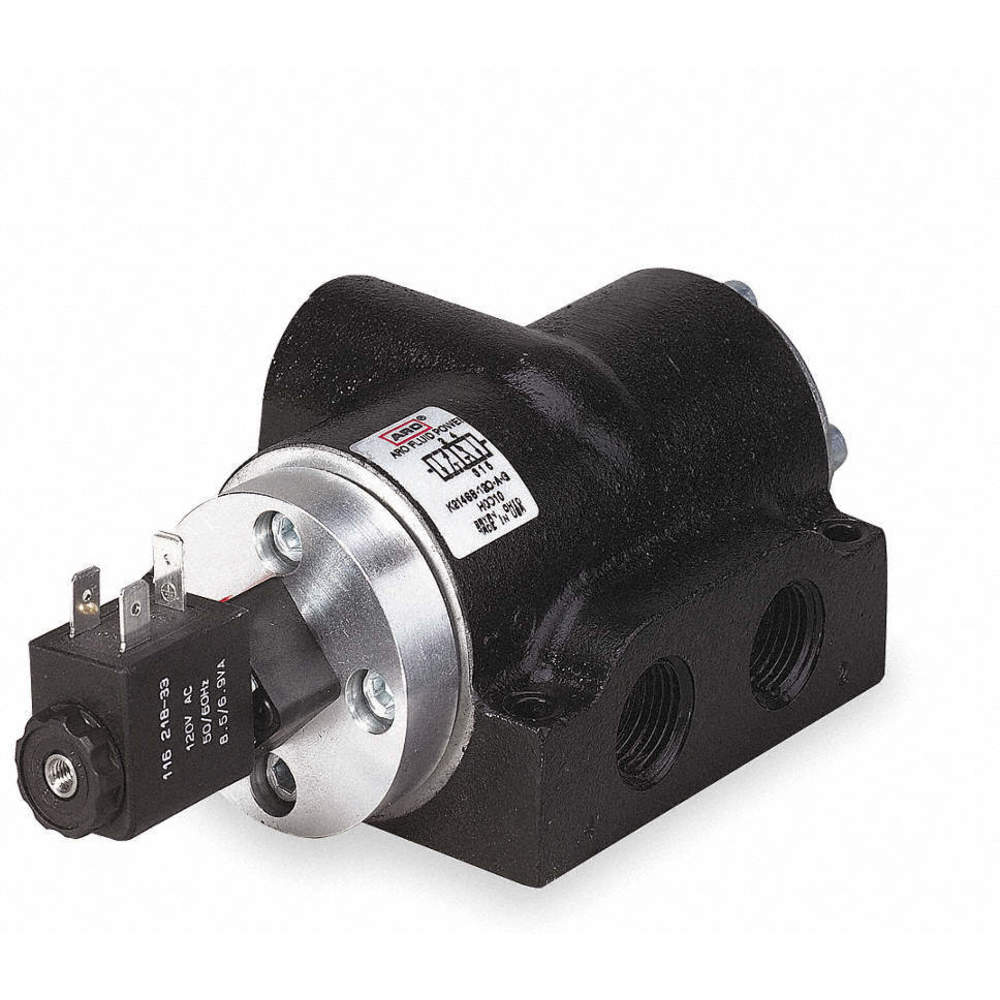

K216SS-120-A | 7.5 | 3 1/2" | 4 7/16" | 10 9/16" | Body Ported | - | 3/4" | - | €1,465.75 | |
 |
K213FS | 2.3 | 4" | 5 1/4" | 13" | - | - | 3/8" | - | €692.89 | |
 |
K213TM | 2.3 | 3 1/2" | 5 1/4" | 9 13/16" | Side Ported | - | 3/8" | - | €666.23 | |
 |
K513TM | 2.3 | 3 1/2" | 4" | 9 13/16" | Side Ported | 4-Way/3-Position | - | - | €923.92 | |
 |
K513LM | 2.3 | 6 7/8" | 3 1/2" | 6 7/16" | Side Ported | 4-Way/3-Position | - | - | €862.97 | |
|
K213LS | 2.3 | 6 7/8" | 3 1/2" | 6 7/16" | Side Ported | 4-Way/2-Position | - | - | €654.12 | |
 |
K313LS | 2.3 | 6 7/8" | 3 1/2" | 6 7/16" | Side Ported | 4-Way/3-Position | - | - | €799.06 |
