ARO H253SS-000-N Solenoid Air Control Valve, No Coil, 3/8 Inch Size Pipe Size, 30 To 150 Psi
Item: CN8WACModel: H253SS-000-NCross Ref: 4HN58
7 In Stock
Ships within 2 days via
10.00% off
€982.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. Range | -10°F to +180°F |
| Body Features | Single |
| Body Material | Die Cast Zinc |
| Body Style | Body Ported |
| Coefficient Of Volume | 2.3 |
| Coefficient Of Volume (cv) | 2.27 |
| Electrical Connection | DIN Connectors |
| Electrical Connection Type | Din Solenoid Connector |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 3/8" |
| Exhaust Port Connection Type | NPT |
| Fail Position | Closed |
| For Media | Air |
| Includes Mounting Hardware | Mounting Hardware Not Included |
| Includes Solenoid Coil | Solenoid Coil Not Included |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 3/8" |
| Inlet Port Connection Type | NPT |
| Max. Flow | 81 CFM |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Number Of Positions | 2 |
| Number Of Ways | 3 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 30 psi |
| Operating Temperature - Maximum | 180°F |
| Operating Temperature - Minimum | -10°F |
| Operational Pressure Range | 30 psi to 150 psi |
| Overall Height | 2 7/8" |
| Overall Length | 2 7/32" |
| Overall Width | 2 3/32" |
| Override | Non-Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 10-32 |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 3/8" |
| Poppet Material | Nylon |
| Product Type | Solenoid Air Control Valve |
| Response Time | 23 ms |
| Return Action | Spring Return |
| Series | H Series |
| Shifting Technology | Solenoid, Pilot |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Open/Normally Closed |
| Valve Type | Poppet |
| Voltage | No Coil |
Shipping Info:
| Ship weight (kg) | 1.06 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 6.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Coefficient Of Volume | Overall Height | Overall Width | Overall Length | Pipe Size | Voltage | Shifting Technology | Override | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

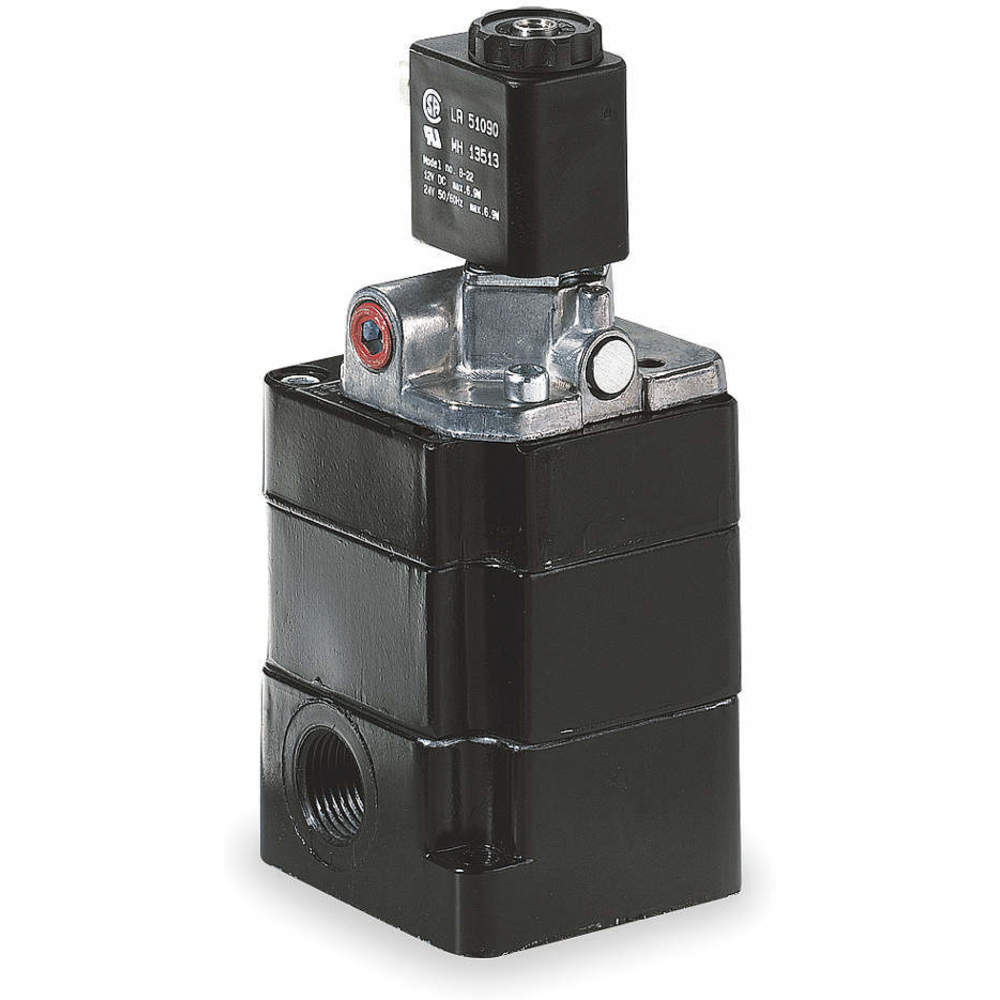

H254SS-120-A | 2.4 | 3 3/16" | 2 5/8" | 2 7/8" | 1/2" | 120V AC | Pilot, Solenoid | Non-Locking | €1,091.98 | |
 |

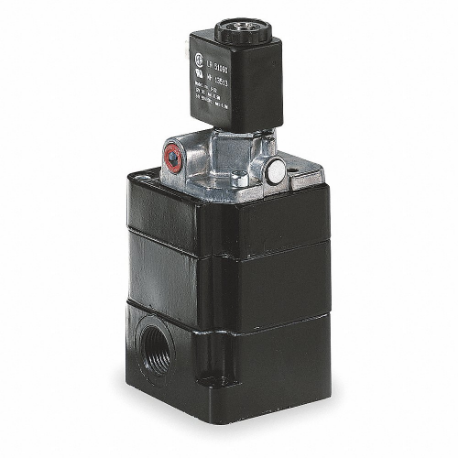

H253SS-120-A | 2.3 | 2 7/8" | 2 3/32" | 2 7/32" | 3/8" | - | Solenoid, Pilot | Non-Locking | €1,012.21 | |
|
H254SS-000-N | 2.4 | 3 3/16" | 2 5/8" | 2 7/8" | 1/2" | No Coil | Solenoid, Pilot | Non-Locking | €1,225.49 |
