ARO 66607A-3EB-A Air Operated Diaphragm Pump, Air, Bolt, 3/4 Inch Fluid Connection Size
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,686.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Diaphragm Pump |
| Air Consumption | 40 SCFM |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Center Section Material | Aluminum |
| Check Seat Material | Polypropylene |
| Chemical Compatibility | Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water |
| Connection Size | 3/4" |
| Connection Type | NPTF |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 37.5 GPM |
| Flow Rate @ 120 Psi | 37.6 GPM |
| Flow Rate @ 40 Psi | 27.5 GPM |
| Flow Rate @ 50 Psi | 30.8 GPM |
| Flow Rate @ 60 Psi | 32.7 GPM |
| Flow Rate @ 70 Psi | 34 GPM |
| Flow Rate @ 80 Psi | 35.75 GPM |
| Flow Rate @ 90 Psi | 36.8 GPM |
| Fluid Intake Connection | 3/4" Nptf |
| Fluid Outlet Connection | 3/4" Nptf |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Includes | Muffler, Outlet Manifold |
| Inlet Size | 1/4" |
| Inlet Type | NPTF |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 120 psi |
| Max. Feet Of Head | 289 ft. |
| Max. Flow Rate | 37.6 GPM |
| Max. Media Temp. | 225°F |
| Max. Outlet Pressure | 120 psi |
| Max. Solid Dia. | 0.13" |
| Max. Viscosity | 15000 cPS |
| Media Discharge Location | Center, Side |
| Media Intake Location | Center, Side |
| Min. Media Temp. | -40°F |
| Mounting Hardware Material | Steel |
| Npshr | 35 ft. |
| Overall Length | 11 1/2" |
| Overall Width | 8" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 120 psi |
| Self Priming | Yes |
| Series | P66607A Series |
| Series Family | Pro |
| Valve Material | Santoprene |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 20.32 |
| Country of Origin | US |
Product Variants
| Model | Max. Flow Rate | Diaphragm Material | Valve Material | Check Seat Material | Max. Media Temp. | Min. Media Temp. | Max. Viscosity | Flow Rate @ 40 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 66607A-344-A | 33 GPM | PTFE | PTFE | Polypropylene | 225°F | 40°F | 14000 cPS | 0 GPM | €2,305.73 | |

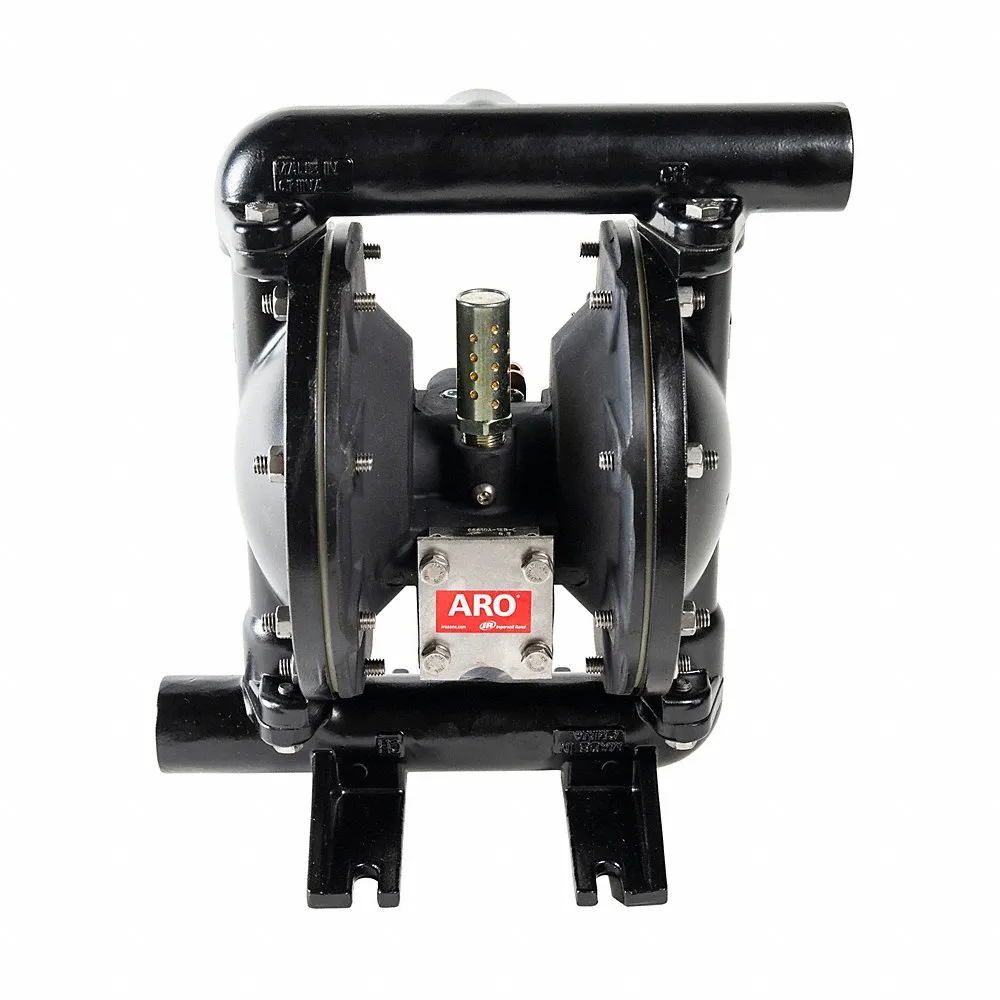

| 66607A-144-A | 33 GPM | PTFE | PTFE | Aluminum | 225°F | 40°F | 14000 cPS | 0 GPM | €2,620.28 | |
| 66607A-1EB-A | 33 GPM | Santoprene | Santoprene | Aluminum | 225°F | -40°F | 14000 cPS | 0 GPM | €2,083.41 | |

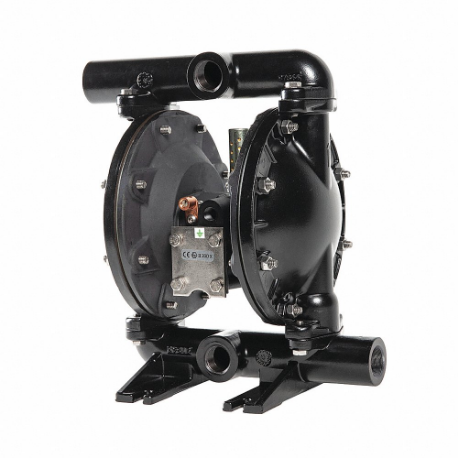

| 66607A-3C9-A | 37.6 GPM | Hytrel | Hytrel | Polypropylene | 180°F | -20°F | 15000 cPS | 27.5 GPM | €2,063.42 |
