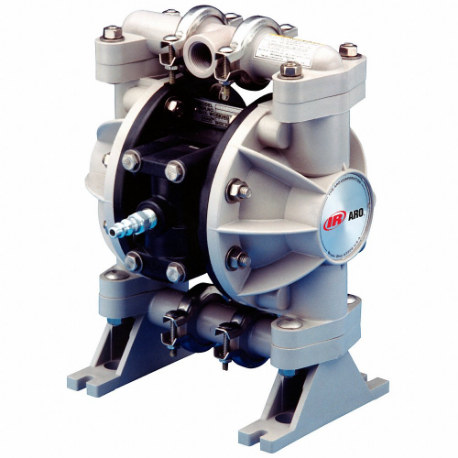

ARO 666053-0D2 Air Operated Diaphragm Pump, Air, Polypropylene, Bolt, 1/2 Inch Fluid Connection Size
Item: CN8VRBModel: 666053-0D2Cross Ref: 341VT3
7 In Stock
Ships within 2 days via
5.00% off
€1,663.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Diaphragm Pump |
| Air Consumption | 20 SCFM |
| Center Section Material | Plastic |
| Check Seat Material | Polypropylene |
| Compatible Chemicals | Antifreeze, Diesel Exhaust Fluid, Oil-Based Paint, Oils, Water |
| Connection Size | 1/2" |
| Connection Type | NPTF |
| Diaphragm Material | Buna N |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 13.1 GPM |
| Flow Rate @ 40 Psi | 9.2 GPM |
| Flow Rate @ 50 Psi | 10.2 GPM |
| Flow Rate @ 60 Psi | 11.1 GPM |
| Flow Rate @ 70 Psi | 12.1 GPM |
| Flow Rate @ 80 Psi | 12.6 GPM |
| Flow Rate @ 90 Psi | 12.9 GPM |
| For Use With Potable Systems | No |
| Housing Material | Polypropylene |
| Includes | Muffler |
| Inlet Size | 1/4" |
| Inlet Type | NPTF |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Max. Flow Rate | 13.1 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 180°F |
| Max. Outlet Pressure | 100 psi |
| Max. Solid Dia. | 0.09" |
| Max. Viscosity | 15000 cPS |
| Media Discharge Location | Center |
| Media Intake Location | Center |
| Min. Media Temp. | 10°F |
| Overall Height | 11.3" |
| Overall Length | 8 2/5" |
| Overall Width | 6 1/2" |
| Power Source | Air |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Series | 66605X Series |
| Valve Material | Buna N |
| Valve Type | Duckbill |
Shipping Info:
| Ship weight (kg) | 4.28 |
| Ship height (cm) | 28.7 |
| Ship length (cm) | 21.34 |
| Ship width (cm) | 16.51 |
| Country of Origin | CN |
Product Variants
| Product | Model | Housing Material | Max. Flow Rate | Max. Media Temp. | Diaphragm Material | Max. Solid Dia. | Valve Material | Valve Type | Check Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PD01P-HPS-PTT-A | Polypropylene | 5.4 GPM | 225°F | PTFE | 0.06" | PTFE | Ball | Polypropylene | €1,001.87 | |
 |
DAB05-PPUU-2-F | Polypropylene | 14.4 GPM | - | - | - | - | - | - | €1,569.43 | |
|
DAB05-PPAA-2-E | Polypropylene | 14.4 GPM | - | - | - | - | - | - | €1,760.96 | |
|
DAB05-SSTT-2-H | Stainless Steel | 12 GPM | - | - | - | - | - | - | €3,676.31 | |
|
DAB05-ASCC-2-G | Aluminum | 12 GPM | - | - | - | - | - | - | €1,946.83 | |
 |
666053-388 | Polypropylene | 13.1 GPM | 150°F | Polyurethane | 0.09" | Polyurethane | Ball | Polypropylene | €1,634.13 | |
 |
66605J-344 | Polypropylene | 13.1 GPM | 225°F | PTFE | 0.09" | PTFE | Ball | Polypropylene | €1,918.93 |
