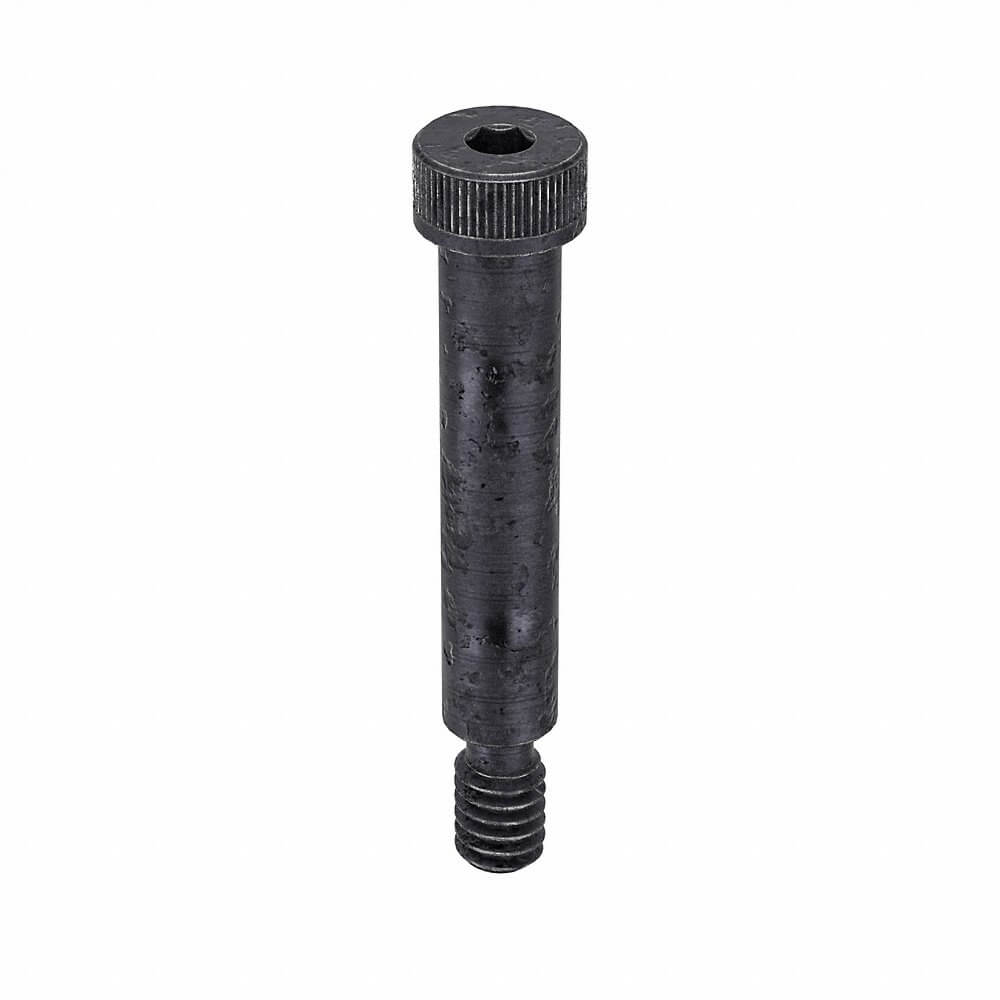

APPROVED VENDOR U07111.031.0150 Shoulder Screw, 1/4 In - 20 Thread Size, 1 1/2 In Shoulder Lg., 7/32 In Head Ht., Alloy Steel
Item: AA9BPKModel: U07111.031.0150Cross Ref: 1CA90
7 In Stock
Ships within 2 days via
10.00% off
€10.93 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 3A |
| Color | Black |
| Countersink Angle | 140° |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 5 |
| Drive Size | 5/32" |
| Drive Type | Socket |
| Finish | Plain |
| Hardness | Rockwell 32-43 |
| Head Dia. | 7/16" |
| Head Height | 7/32" |
| Head Texture | Knurled |
| Head Type | Standard |
| Heat Treatment | Tempered |
| Material | Alloy Steel |
| Material Quality Standards | Astm A574 |
| Maximum Head Height | 0.219" |
| Maximum Temperature | 150°F |
| Min. Tensile Strength | 140000 psi |
| Minimum Head Height | 0.209" |
| Minimum Temperature | -50°F |
| Minimum Yield Strength | 130000 psi |
| Precision Screw | No |
| Proof Load | 120000 psi |
| Rockwell Hardness | C32 to C43 |
| Shear Strength | 84000 psi |
| Shoulder Dia. | 5/16" |
| Shoulder Diameter Tolerance | 0.002" to 0.004" |
| Shoulder Length | 1 1/2" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 140000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 7/16" |
| Thread Locking | No |
| Thread Size | 1/4"-20 |
| Thread Type | Coarse |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 4.83 |
| HS code | 7318158069 |
| Country of Origin | TW |
