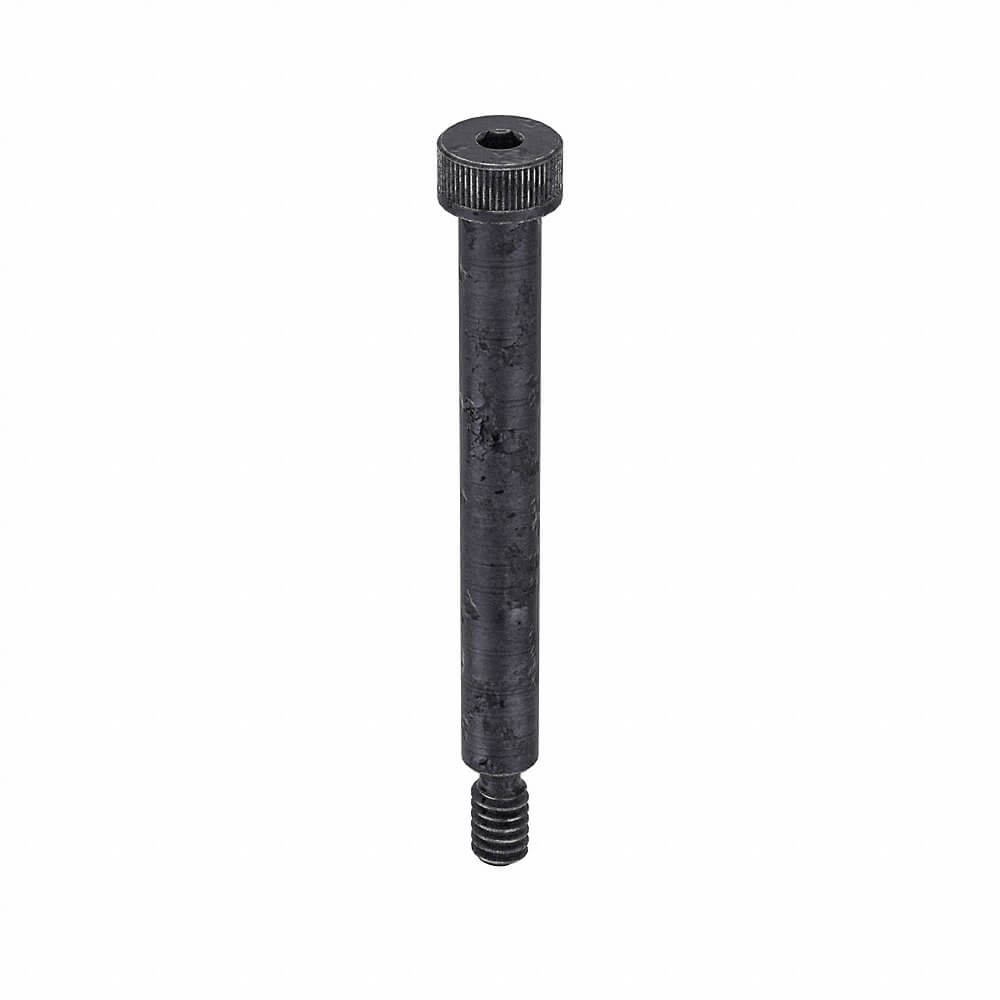

APPROVED VENDOR U07111.025.0200 Shoulder Screw, 10-24 Thread Size, 2 In Shoulder Lg., 3/16 In Head Ht., 3/8 In Head Dia., Alloy Steel
Item: AA9BPDModel: U07111.025.0200Cross Ref: 1CA77
7 In Stock
Ships within 2 days via
5.00% off
€23.11 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 3A |
| Color | Black |
| Countersink Angle | 140° |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 10 |
| Drive Size | 1/8" |
| Drive Type | Socket |
| Finish | Plain |
| Hardness | Rockwell 32-43 |
| Head Dia. | 3/8" |
| Head Height | 3/16" |
| Head Texture | Knurled |
| Head Type | Standard |
| Heat Treatment | Tempered |
| Material | Alloy, Steel |
| Material Quality Standards | Astm A574 |
| Max. Head Height | 0.188" |
| Max. Temp. | 150°F |
| Min. Head Height | 0.177" |
| Min. Temp. | -50°F |
| Min. Tensile Strength | 140000 psi |
| Min. Yield Strength | 130000 psi |
| Precision Screw | No |
| Proof Load | 120000 psi |
| Rockwell Hardness | C32 to C43 |
| Shear Strength | 84000 psi |
| Shoulder Dia. | 1/4" |
| Shoulder Dia. Tolerance | 0.002" to 0.004" |
| Shoulder Length | 2" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 140000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 3/8" |
| Thread Locking | No |
| Thread Size | #10-24 |
| Thread Type | Coarse |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 4.83 |
| HS code | 7318158045 |
| Country of Origin | TW |
Product Variants
| Product | Model | Head Dia. | Shoulder Dia. | Shoulder Length | Thread Length | Head Height | Type | Shoulder Length Tolerance | Shoulder Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07111.025.0025 | 3/8" | 1/4" | 1/4" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 25 | €23.56 | |
 |
U07111.025.0062 | 3/8" | 1/4" | 5/8" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 25 | €26.33 | |
 |
U07111.025.0087 | 3/8" | 1/4" | 7/8" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 10 | €9.47 | |
 |
U07111.025.0175 | 3/8" | 1/4" | 1 3/4" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 10 | €22.77 | |
 |
U07111.025.0225 | 3/8" | 1/4" | 2 1/4" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 10 | €18.45 | |
 |
U07111.025.0250 | 3/8" | 1/4" | 2 1/2" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 10 | €21.52 | |
 |
U07111.025.0300 | 3/8" | 1/4" | 3" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 10 | €17.36 |
