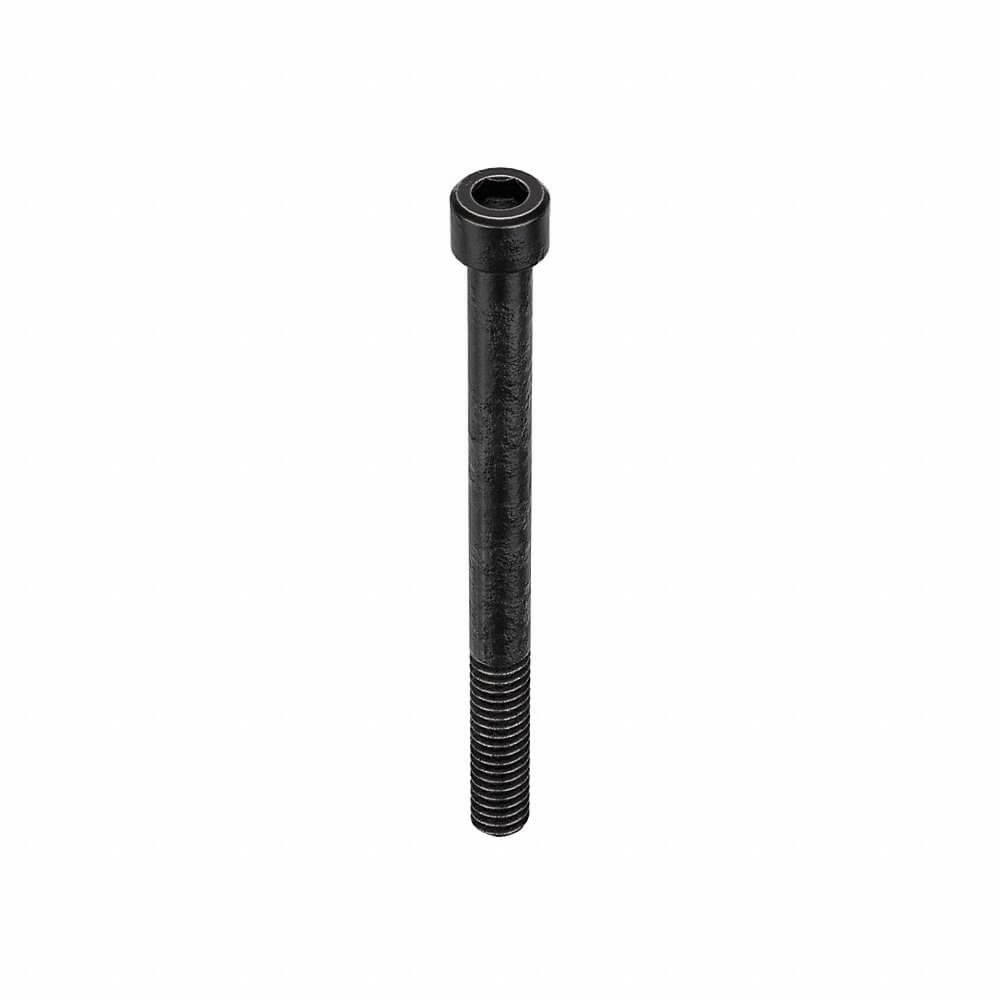

APPROVED VENDOR U07000.025.0300 Socket Head Cap Screw, 1/4 In - 20 Thread Size, Cyl., 3 In Lg., 1/4 In Head Ht., Blk Oxide, Steel
Item: AB7BVJModel: U07000.025.0300Cross Ref: 22TR02
7 In Stock
Ships within 2 days via
10.00% off
€20.28 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 25 |
| Drive Size | 3/16" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C37-C45 |
| Head Dia. | 3/8" |
| Head Diameter | 0.375" |
| Head Height | 1/4" |
| Head Type | Standard |
| Length | 3" |
| Material | Steel |
| Material Quality Standards | Astm A574 |
| Material Type | Steel |
| Maximum Temperature | 550°F |
| Min. Tensile Strength | 180000 psi |
| Minimum Temperature | -50°F |
| Minimum Thread Length | 1" |
| Screw Length | 3" |
| System Of Measurement | Imperial |
| Temp. Range | -50°F to +550°F |
| Tensile Strength | 180000 psi |
| Thread Direction | Right Hand |
| Thread Length | 1" |
| Thread Size | 1/4"-20 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.46 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158045 |
| Country of Origin | TW |
