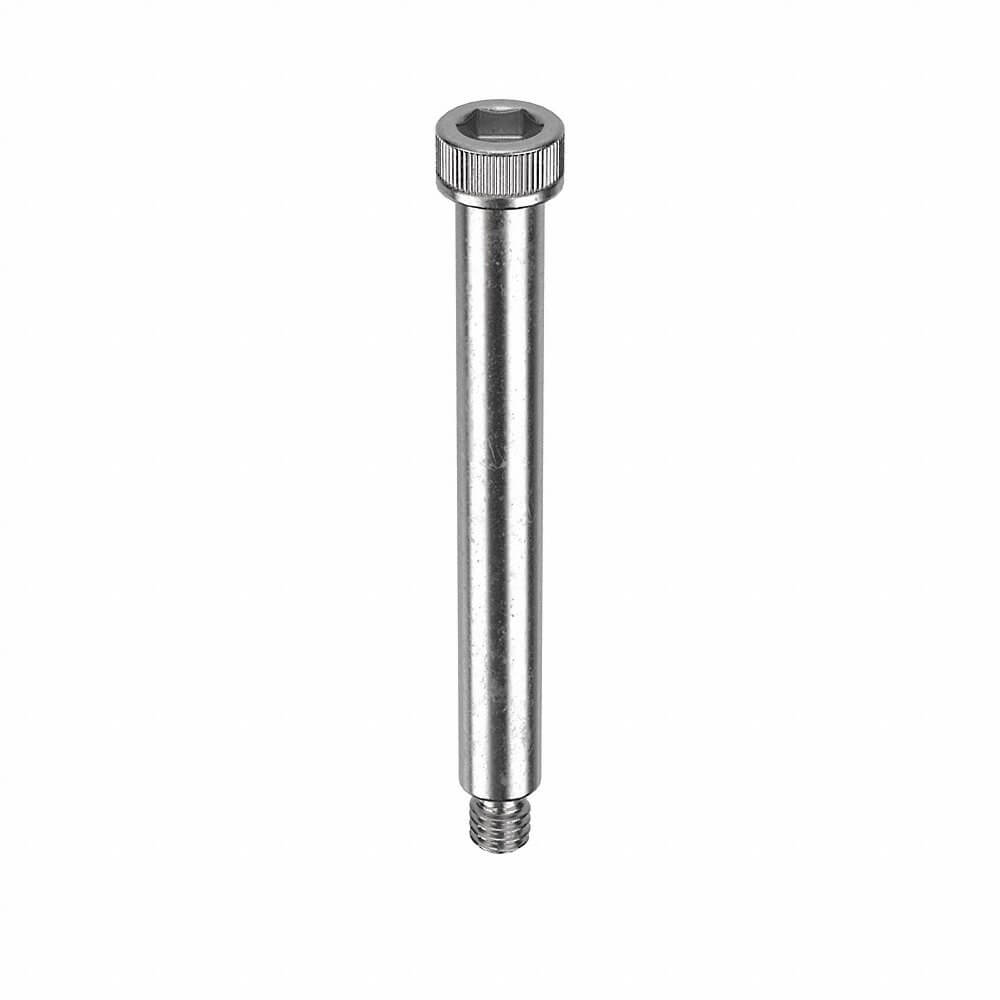

APPROVED VENDOR STR60273C28 Shoulder Screw, 8-32 Thread Size, 1 3/4 In Shoulder Lg., 5/32 In Head Ht., Gr. 316, SS
Item: AB8JFRModel: STR60273C28Cross Ref: 25L402
7 In Stock
Ships within 2 days via
10.00% off
€52.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | AMPG 2012 ZS.01 |
| Display Qty | 1 |
| Finish | Plain |
| Grade | Grade 316 |
| Hardness | Rockwell B55 |
| Head Dia. | 5/16" |
| Head Height | 5/32" |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Min. Tensile Strength | 70000 psi |
| Precision Screw | No |
| Rockwell Hardness | B55 |
| Shear Strength | Not Rated |
| Shoulder Dia. | 7/32" |
| Shoulder Diameter Tolerance | 0.002" to 0.004" |
| Shoulder Length | 1 3/4" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 70000 psi |
| Thread Fit | 3A |
| Thread Length | 3/16" |
| Thread Size | #8-32 |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| HS code | 7318156010 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Shoulder Length | Shoulder Dia. | Thread Length | Shoulder Length Tolerance | Head Dia. | Head Height | Dimensional Standards | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
STR60218C02 | #4-40 | 1/8" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €11.12 | |
 |
STR60218C02.5 | #4-40 | 5/32" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €16.15 | |
 |
STR60218C03.5 | #4-40 | 7/32" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €17.14 | |
 |
STR60218C04.5 | #4-40 | 9/32" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €18.34 | |
 |
STR60218C05.5 | #4-40 | 11/32" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €15.84 | |
 |
STR60218C06.5 | #4-40 | 13/32" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €16.67 | |
 |
STR60218C07.5 | #4-40 | 15/32" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €15.74 |
