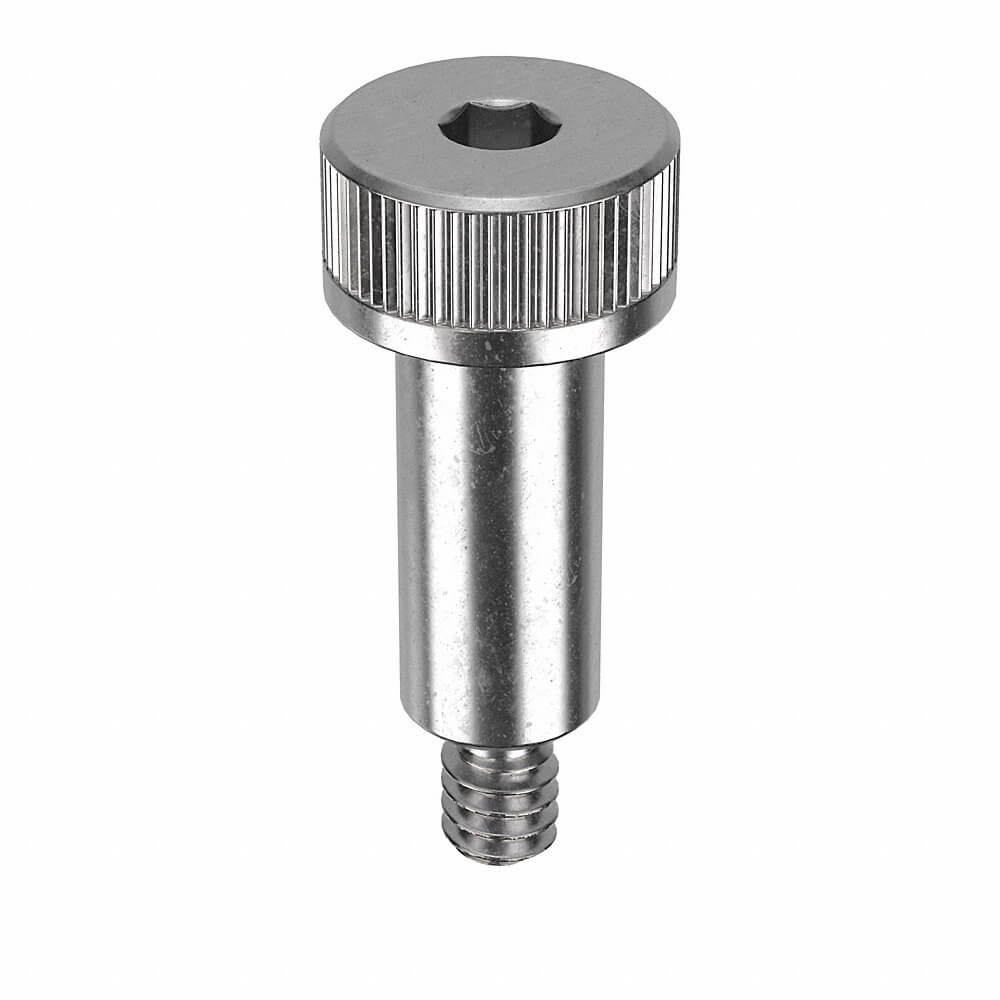

APPROVED VENDOR Standard Hex Socket Shoulder Screws
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1
X1
Y1
Z1
A2
B2
C2
D2
E2
F2| Style | Model | Head Dia. | Shoulder Dia. | Shoulder Length | Thread Length | Head Height | Shoulder Length Tolerance | Shoulder Dia. Tolerance | Thread Fit | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | STR602012C56 | 1 3/4" | 1 1/4" | 3 1/2" | 1 1/8" | 3/4" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €1,065.25 | |
| B | STR602012C48 | 1 3/4" | 1 1/4" | 3" | 1 1/8" | 3/4" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €970.88 | |
| C | STR602012C40 | 1 3/4" | 1 1/4" | 2 1/2" | 1 1/8" | 3/4" | -0.005" to +0.005" | - | - | 1 | €874.26 | |
| D | STR602012C32 | 1 3/4" | 1 1/4" | 2" | 1 1/8" | 3/4" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €774.90 | |
| E | STR602012C28 | 1 3/4" | 1 1/4" | 1 3/4" | 1 1/8" | 3/4" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €689.83 | |
| F | STR602012C24 | 1 3/4" | 1 1/4" | 1 1/2" | 1 1/8" | 3/4" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €664.22 | |
| G | STR602012C20 | 1 3/4" | 1 1/4" | 1 1/4" | 1 1/8" | 3/4" | -0.005" to +0.005" | - | - | 1 | €606.87 | |
| H | STR602012C16 | 1 3/4" | 1 1/4" | 1" | 1 1/8" | 3/4" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €562.56 | |
| I | STR602012C64 | 1 3/4" | 1 1/4" | 4" | 1 1/8" | 3/4" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €1,157.50 | |
| J | STR60201C64 | 1 5/16" | 1" | 4" | 1" | 5/8" | -0.005" to +0.005" | - | - | 1 | €390.40 | |
| K | STR60201C32 | 1 5/16" | 1" | 2" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €341.34 | |
| L | STR60201C36 | 1 5/16" | 1" | 2 1/4" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €322.61 | |
| M | STR60201C40 | 1 5/16" | 1" | 2 1/2" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €379.04 | |
| N | STR60201C44 | 1 5/16" | 1" | 2 3/4" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €357.23 | |
| O | STR60201C48 | 1 5/16" | 1" | 3" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €400.37 | |
| P | STR60201C56 | 1 5/16" | 1" | 3 1/2" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €400.92 | |
| Q | STR60201C112 | 1 5/16" | 1" | 7" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €694.71 | |
| R | STR60201C80 | 1 5/16" | 1" | 5" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €548.72 | |
| S | STR60201C88 | 1 5/16" | 1" | 5 1/2" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €588.92 | |
| T | STR60201C96 | 1 5/16" | 1" | 6" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €608.81 | |
| U | STR60201C104 | 1 5/16" | 1" | 6 1/2" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €686.97 | |
| V | STR60201C20 | 1 5/16" | 1" | 1 1/4" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €303.72 | |
| W | STR60201C120 | 1 5/16" | 1" | 7 1/2" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €729.84 | |
| X | STR60201C128 | 1 5/16" | 1" | 8" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €799.08 | |
| Y | STR60201C24 | 1 5/16" | 1" | 1 1/2" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €279.68 | |
| Z | STR60201C28 | 1 5/16" | 1" | 1 3/4" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €286.99 | |
| A1 | STR60201C72 | 1 5/16" | 1" | 4 1/2" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €507.90 | |
| B1 | STR60201C16 | 1 5/16" | 1" | 1" | 1" | 5/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €318.95 | |
| C1 | STR60234C24 | 1" | 3/4" | 1 1/2" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €155.93 | |
| D1 | STR60234C64 | 1" | 3/4" | 4" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €227.00 | |
| E1 | STR60234C60 | 1" | 3/4" | 3 3/4" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €242.66 | |
| F1 | STR60234C56 | 1" | 3/4" | 3 1/2" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €201.00 | |
| G1 | STR60234C52 | 1" | 3/4" | 3 1/4" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €219.48 | |
| H1 | STR60234C48 | 1" | 3/4" | 3" | 7/8" | 1/2" | -0.005" to +0.005" | - | - | 1 | €188.53 | |
| I1 | STR60234C44 | 1" | 3/4" | 2 3/4" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €179.88 | |
| J1 | STR60234C40 | 1" | 3/4" | 2 1/2" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €179.94 | |
| K1 | STR60234C36 | 1" | 3/4" | 2 1/4" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €199.59 | |
| L1 | STR60234C32 | 1" | 3/4" | 2" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €154.84 | |
| M1 | STR60234C28 | 1" | 3/4" | 1 3/4" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €149.73 | |
| N1 | STR60234C128 | 1" | 3/4" | 8" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €563.80 | |
| O1 | STR60234C120 | 1" | 3/4" | 7 1/2" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €494.60 | |
| P1 | STR60234C16 | 1" | 3/4" | 1" | 7/8" | - | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €133.81 | |
| Q1 | STR60234C12 | 1" | 3/4" | 3/4" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €141.41 | |
| R1 | STR60234C10 | 1" | 3/4" | 5/8" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €155.30 | |
| S1 | STR60234C08 | 1" | 3/4" | 1/2" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €135.54 | |
| T1 | STR60234C72 | 1" | 3/4" | 4 1/2" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €250.18 | |
| U1 | STR60234C76 | 1" | 3/4" | 4 3/4" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €256.20 | |
| V1 | STR60234C80 | 1" | 3/4" | 5" | 7/8" | 1/2" | -0.005" to +0.005" | - | - | 1 | €266.60 | |
| W1 | STR60234C88 | 1" | 3/4" | 5 1/2" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €280.80 | |
| X1 | STR60234C96 | 1" | 3/4" | 6" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €313.08 | |
| Y1 | STR60234C104 | 1" | 3/4" | 6 1/2" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €358.90 | |
| Z1 | STR60234C112 | 1" | 3/4" | 7" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €405.11 | |
| A2 | STR60234C20 | 1" | 3/4" | 1 1/4" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €150.24 | |
| B2 | STR60234C68 | 1" | 3/4" | 4 1/4" | 7/8" | 1/2" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €241.04 | |
| C2 | STR60218C20 | 1/4" | 1/8" | 1 1/4" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €56.33 | |
| D2 | STR60218C07.5 | 1/4" | 1/8" | 15/32" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €15.91 | |
| E2 | 2DMY8 | 1/4" | 1/8" | 1/2" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 4 | €58.80 | |
| E2 | 2DMY7 | 1/4" | 1/8" | 7/16" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 4 | €52.40 | |
| E2 | 2DMY6 | 1/4" | 1/8" | 3/8" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 4 | €39.34 | |
| E2 | 2DMY5 | 1/4" | 1/8" | 5/16" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 4 | €41.15 | |
| F2 | STR60218C24 | 1/4" | 1/8" | 1 1/2" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €70.70 |
