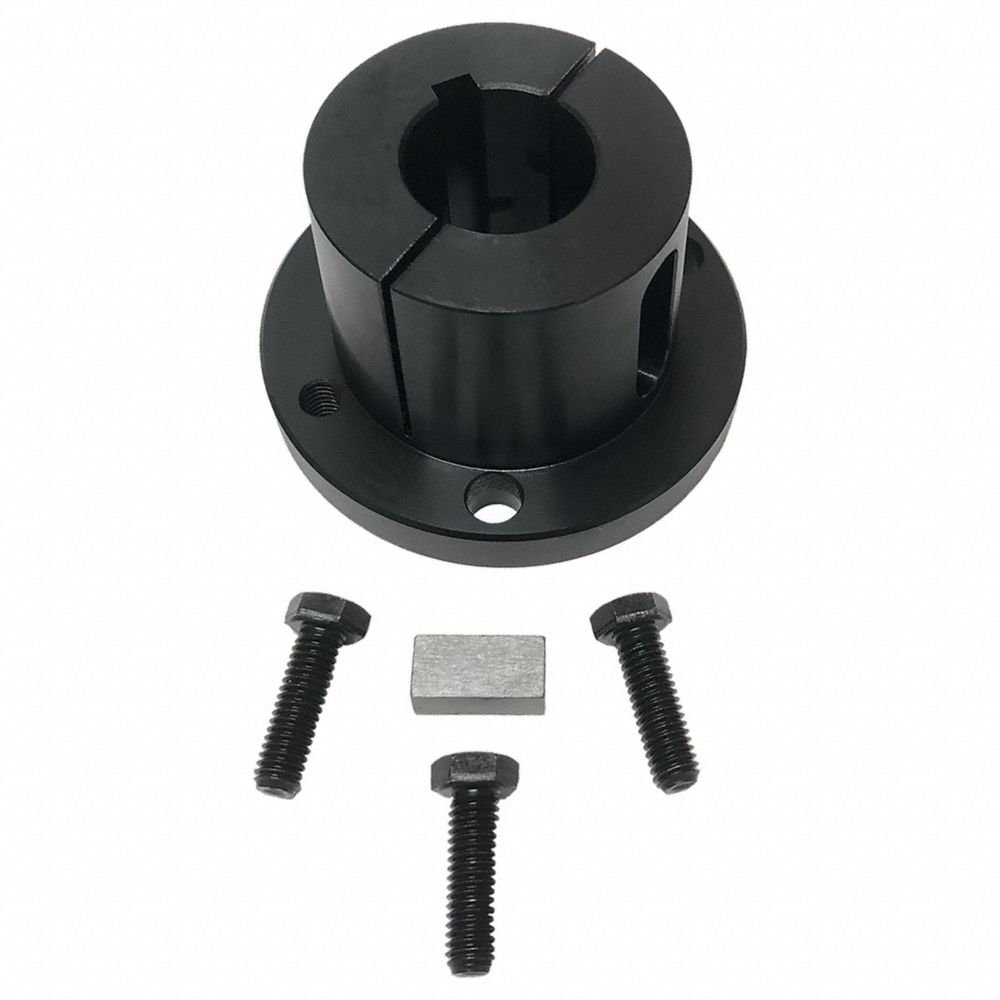

APPROVED VENDOR Q1X212 Split Taper Bushing, Q1, 2 1/2 Inch Bore Dia, 3.38 Inch Bolt Dia, Cast Iron
Item: EA4CXTModel: Q1X212Cross Ref: 812YT5
7 In Stock
Ships within 2 days via
5.00% off
€128.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Taper Bushing |
| Bolt Circle Dia. | 3.38" |
| Bore Bushing Series | Q1 Series |
| Bore Dia. | 2 1/2" |
| Bushing Type | Split Taper |
| Fastener Tightening Torque | 348 lbs.-in. |
| Flange Thickness | 17/32" |
| Flange Type | Solid |
| For Shaft Type | Keyed |
| Includes | (3) Cap Screws |
| Keyway Depth | 5/16" |
| Keyway Width | 5/8" |
| Large Barrel Dia. | 2 7/8" |
| Length | 2 1/2" |
| Length Less Flange | 1.969" |
| Material | Steel |
| Overall Dia. | 4 1/8" |
| Small Barrel Dia. | 2.766" |
| System Of Measurement | Imperial |
| Taper | 0.75 in./ft. |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 9.65 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 12.19 |
| Country of Origin | CN |
Product Variants
| Model | Bolt Circle Dia. | Bore Dia. | Overall Dia. | Length Less Flange | Bore Bushing Series | Small Barrel Dia. | Flange Thickness | Fastener Tightening Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BX1116 | 3.13" | 1 1/16" | 3.688" | 1.438" | B Series | 2.557" | 1/2" | 192 lbs.-in. | €99.52 | |
| BX1116 | - | - | 3.688" | - | - | 2.557" | - | - | €99.52 | |
| BX1316 | 3.13" | 1 3/16" | 3.688" | 1.438" | B Series | 2.557" | 1/2" | 192 lbs.-in. | €99.52 | |
| BX1316 | - | - | 3.688" | - | - | 2.557" | - | - | €99.52 | |
| BX1516 | 3.13" | 1 5/16" | 3.688" | 1.438" | B Series | 2.557" | 1/2" | 192 lbs.-in. | €99.52 | |
| BX1516 | - | - | 3.688" | - | - | 2.557" | - | - | €99.52 | |
| HX1116 | 2" | 11/16" | 2 1/2" | 1" | H Series | 1.57" | 1/4" | 95 lbs.-in. | €31.10 |
