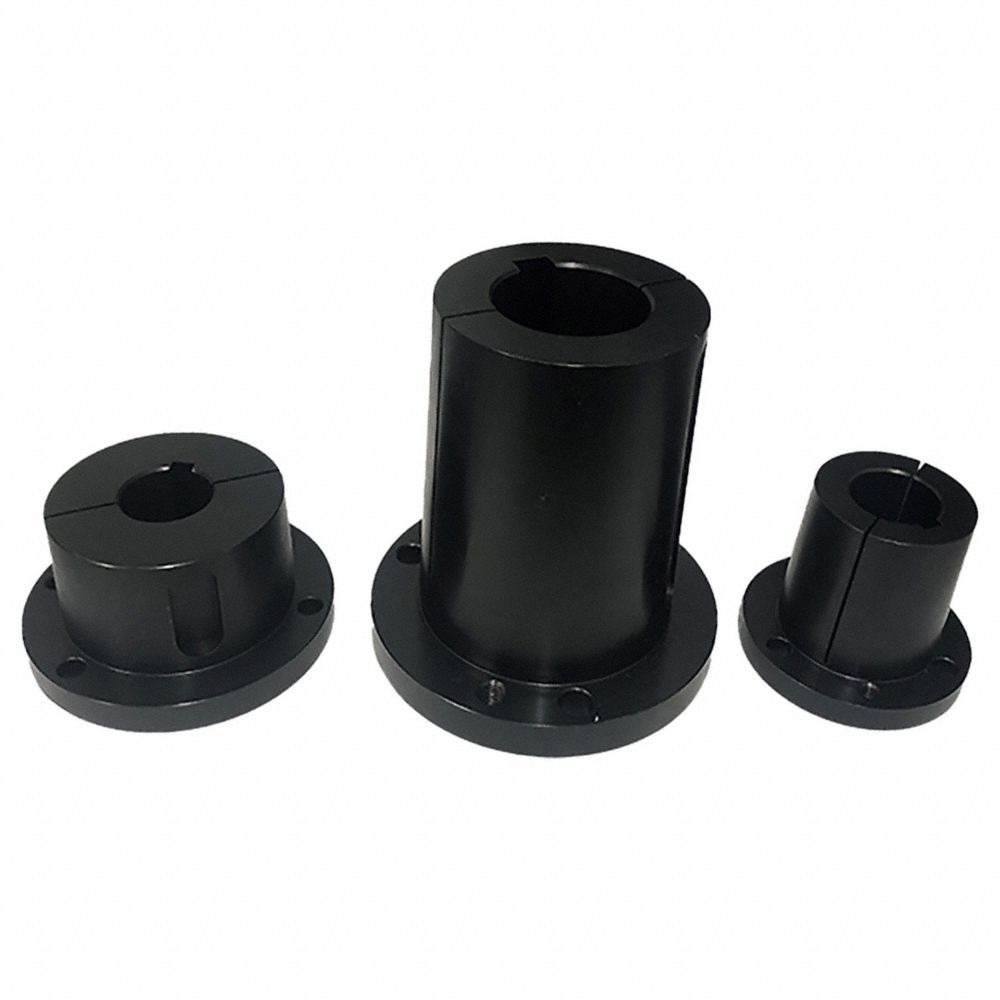

APPROVED VENDOR Split Taper Bushings
Filter
A
B
C| Style | Model | Bolt Circle Dia. | Bore Dia. | Overall Dia. | Length Less Flange | Bore Bushing Series | Small Barrel Dia. | Flange Thickness | Fastener Tightening Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | BX1116 | - | - | 3.688" | - | - | 2.557" | - | - | €99.52 | |
| A | P2X1516 | - | - | - | - | - | - | - | - | €76.69 | |
| A | BX1516 | - | - | 3.688" | - | - | 2.557" | - | - | €99.52 | |
| A | BX1316 | - | - | 3.688" | - | - | 2.557" | - | - | €99.52 | |
| A | P2X1516 | - | - | - | - | - | - | - | - | €76.69 | |
| B | Q1X1516 | - | - | - | - | - | 2.766" | - | - | €135.22 | |
| B | Q1X1316 | - | - | - | - | - | 2.766" | - | - | €135.22 | |
| C | HX1116 | - | - | - | - | - | 1.57" | - | - | €31.10 | |
| A | GX12 | 1 14/25" | 1/2" | 2" | 3/4" | G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX1516 | 1 14/25" | 15/16" | 2" | 3/4" | G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX34 | 1 14/25" | 3/4" | 2" | 3/4" | G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX19MM | 1 14/25" | 19 mm | 2" | 3/4" | G, G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX22MM | 1 14/25" | 22 mm | 2" | 3/4" | G, G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX38 | 1 14/25" | 3/8" | 2" | 3/4" | G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX58 | 1 14/25" | 5/8" | 2" | 3/4" | G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX78 | 1 14/25" | 7/8" | 2" | 3/4" | G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX916 | 1 14/25" | 9/16" | 2" | 3/4" | G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX1116 | 1 14/25" | 11/16" | 2" | 3/4" | G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX11MM | 1 14/25" | 11 mm | 2" | 3/4" | G, G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX14MM | 1 14/25" | 14 mm | 2" | 3/4" | G, G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX25MM | 1 14/25" | 25 mm | 2" | 3/4" | G, G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX716 | 1 14/25" | 7/16" | 2" | 3/4" | G Series | - | - | - | €27.04 | |
| A | GX1316 | 1 14/25" | 13/16" | 2" | 3/4" | G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX18MM | 1 14/25" , 1.56" | 18 mm | 2" | 0.75" , 3/4" | G, G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX24MM | 1 14/25" , 1.56" | 24 mm | 2" | 0.75" , 3/4" | G, G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX20MM | 1 14/25" , 1.56" | 20 mm | 2" | 0.75" , 3/4" | G, G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX16MM | 1 14/25" , 1.56" | 16 mm | 2" | 0.75" , 3/4" | G, G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX12MM | 1 14/25" , 1.56" | 12 mm | 2" | 0.75" , 3/4" | G, G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | GX10MM | 1 14/25" , 1.56" | 10 mm | 2" | 0.75" , 3/4" | G, G Series | 1.133" | 1/4" | 95 lbs.-in. | €27.04 | |
| A | P1X11116 | 2 11/25" | 1 11/16" | 3" | 1.531" | P1 Series | - | - | - | €62.27 | |
| A | P1X34 | 2 11/25" | 3/4" | 3" | 1.531" | P1 Series | - | - | - | €62.27 | |
| A | P1X58 | 2 11/25" | 5/8" | 3" | 1.531" | P1 Series | 1.856" | 13/32" | 192 lbs.-in. | €62.27 | |
| A | P1X138 | 2 11/25" | 1 3/8" | 3" | 1.531" | P1 Series | - | - | - | €62.27 | |
| A | P1X12 | 2 11/25" | 1/2" | 3" | 1.531" | P1 Series | 1.856" | 13/32" | 192 lbs.-in. | €62.27 | |
| A | P1X916 | 2 11/25" | 9/16" | 3" | 1.531" | P1 Series | - | - | - | €62.27 | |
| A | P1X1116 | 2 11/25" | 11/16" | 3" | 1.531" | P1 Series | 1.856" | 13/32" | 192 lbs.-in. | €62.27 | |
| A | P2X1316 | 2 11/25" | - | - | - | - | 1.793" | - | - | €76.69 | |
| A | P2X138 | 2 11/25" | 1 3/8" | 3" | 2.531" | P2 Series | 1.793" | 13/32" | 192 lbs.-in. | €76.69 | |
| A | P1X134 | 2 11/25" | 1 3/4" | 3" | 1.531" | P1 Series | 1.856" | 13/32" | 192 lbs.-in. | €62.27 | |
| A | P2X1316 | 2 11/25" | 13/16" | 3" | 2.531" | P2 Series | 1.793" | 13/32" | 192 lbs.-in. | €76.69 | |
| A | P2X118 | 2 11/25" | 1 1/8" | 3" | 2.531" | P2 Series | 1.793" | 13/32" | 192 lbs.-in. | €76.69 | |
| A | P2X158 | 2 11/25" | 1 5/8" | 3" | 2.531" | P2 Series | 1.793" | 13/32" | 192 lbs.-in. | €76.69 | |
| A | P2X1716 | 2 11/25" | 1 7/16" | 3" | 2.531" | P2 Series | 1.793" | 13/32" | 192 lbs.-in. | €76.69 | |
| A | P2X78 | 2 11/25" | 7/8" | 3" | 2.531" | P2 Series | 1.793" | 13/32" | 192 lbs.-in. | €76.69 | |
| A | P1X1516 | 2 11/25" | - | - | - | - | 1.856" | - | - | €62.27 | |
| A | P1X1516 | 2 11/25" | 15/16" | 3" | 1.531" | P1 Series | - | - | - | €62.27 | |
| A | P1X1316 | 2 11/25" | - | - | - | - | 1.856" | - | - | €62.27 | |
| A | P1X1316 | 2 11/25" | 1 3/16" | 3" | 1.531" | P1 Series | - | - | - | €62.27 | |
| A | P1X158 | 2 11/25" | 1 5/8" | 3" | 1.531" | P1 Series | - | - | - | €62.27 | |
| A | P1X78 | 2 11/25" | 7/8" | 3" | 1.531" | P1 Series | - | - | - | €62.27 | |
| A | P1X114 | 2 11/25" | 1 1/4" | 3" | 1.531" | P1 Series | - | - | - | €62.27 | |
| A | P1X1716 | 2 11/25" | 1 7/16" | 3" | 1.531" | P1 Series | 1.856" | 13/32" | 192 lbs.-in. | €62.27 | |
| A | P1X118 | 2 11/25" | 1 1/8" | 3" | 1.531" | P1 Series | 1.856" | 13/32" | 192 lbs.-in. | €62.27 | |
| A | P2X34 | 2 11/25" | 3/4" | 3" | 2.531" | P2 Series | 1.793" | 13/32" | 192 lbs.-in. | €76.69 | |
| A | P2X114 | 2 11/25" | 1 1/4" | 3" | 2.531" | P2 Series | 1.793" | 13/32" | 192 lbs.-in. | €76.69 | |
| A | P2X112 | 2 11/25" | 1 1/2" | 3" | 2.531" | P2 Series | 1.793" | 13/32" | 192 lbs.-in. | €76.69 | |
| A | P2X1916 | 2 11/25" | 1 9/16" | 3" | 2.531" | P2 Series | 1.793" | 13/32" | 192 lbs.-in. | €76.69 | |
| A | P2X11116 | 2 11/25" | 1 11/16" | 3" | 2.531" | P2 Series | 1.793" | 13/32" | 192 lbs.-in. | €76.69 | |
| A | P2X134 | 2 11/25" | 1 3/4" | 3" | 2.531" | P2 Series | 1.793" | 13/32" | 192 lbs.-in. | €76.69 | |
| A | P1X1916 | 2 11/25" | 1 9/16" | 3" | 1.531" | P1 Series | 1.856" | 13/32" | 192 lbs.-in. | €62.27 | |
| A | P1X14MM | 2 11/25" | 14 mm | 3" | 1.531" | P1, P1 Series | 1.856" | 13/32" | 192 lbs.-in. | €62.27 |
