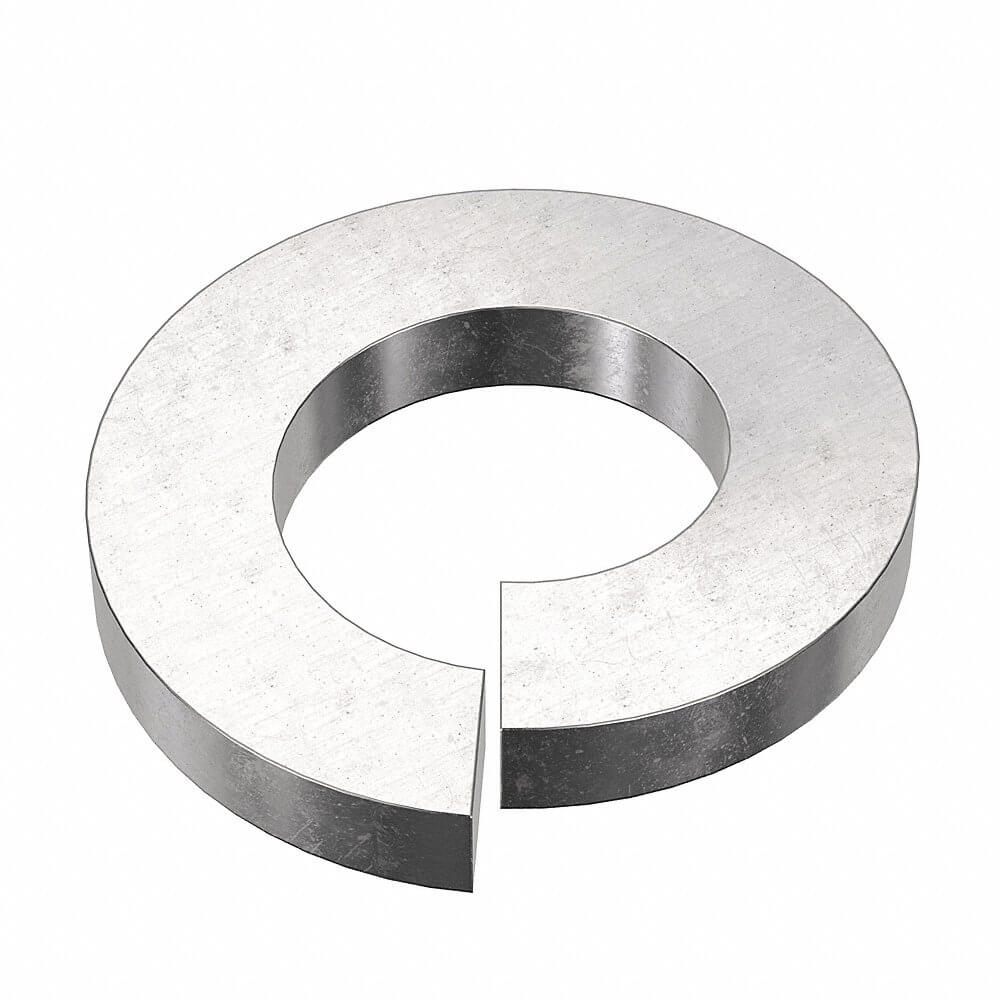

APPROVED VENDOR M55450.080.0001 Spring Lock Washer, M8 Fits Bolt Size, Split Lock, 14.8 mm O.D., 2 mm Thk.
Get it by Wednesday, Feb 25
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€5.89 /pkg. of 50
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spring Lock Washer |
| Class | Not Applicable |
| Color | Silver |
| Dimensional Standards | DIN 127 B |
| Finish | Plain |
| Fits Bolt Sizes | M8 |
| For Screw Size | M8 |
| Grade | Grade A4 |
| Inside Dia. | 8.1 mm |
| Inside Dia. Tolerance | 0.4 mm |
| Lock Washer Type | Split Lock |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Maximum Temperature | 302°F |
| Maximum Thickness | 2.1 mm |
| Minimum Temperature | -58°F |
| Minimum Thickness | 1.9 mm |
| Outside Dia. | 14.8 mm |
| Reach Compliant | Yes |
| Removable | Yes |
| Resistance Properties | Corrosion Resistant |
| Rohs Compliant | Yes |
| System Of Measurement | Metric |
| Thickness | 2 mm |
| Thickness Tolerance | -0.1 mm to +0.1 mm |
| Type | Split Lock |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318210090 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | For Screw Size | Class | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M55450.020.0001 | M2 | 2.1 mm | 4.4 mm | 0.5 mm | - | M2 | Not Applicable | - | 50 | €3.75 | |
 |
M55450.025.0001 | M2.5 | 2.6 mm | 5.1 mm | 0.6 mm | - | M2.5 | Not Applicable | - | 50 | €2.83 | |
 |
M55450.030.0001 | M3 | 3.1 mm | 6.2 mm | 0.8 mm | - | M3 | Not Applicable | - | 50 | €5.84 | |
 |
M55450.040.0001 | M4 | 4.1 mm | 7.6 mm | 0.9 mm | - | M4 | Not Applicable | - | 50 | €3.99 | |
 |
M55450.050.0001 | M5 | 5.1 mm | 9.2 mm | 1.2 mm | - | M5 | Not Applicable | - | 50 | €9.08 | |
 |
M55450.160.0001 | M16 | 16.2 mm | 27.4 mm | 3.5 mm | - | M16 | Not Applicable | - | 10 | €6.93 | |
 |
M55450.180.0001 | M18 | 18.2 mm | 29.4 mm | 3.5 mm | - | M18 | Not Applicable | - | 10 | €7.86 |
