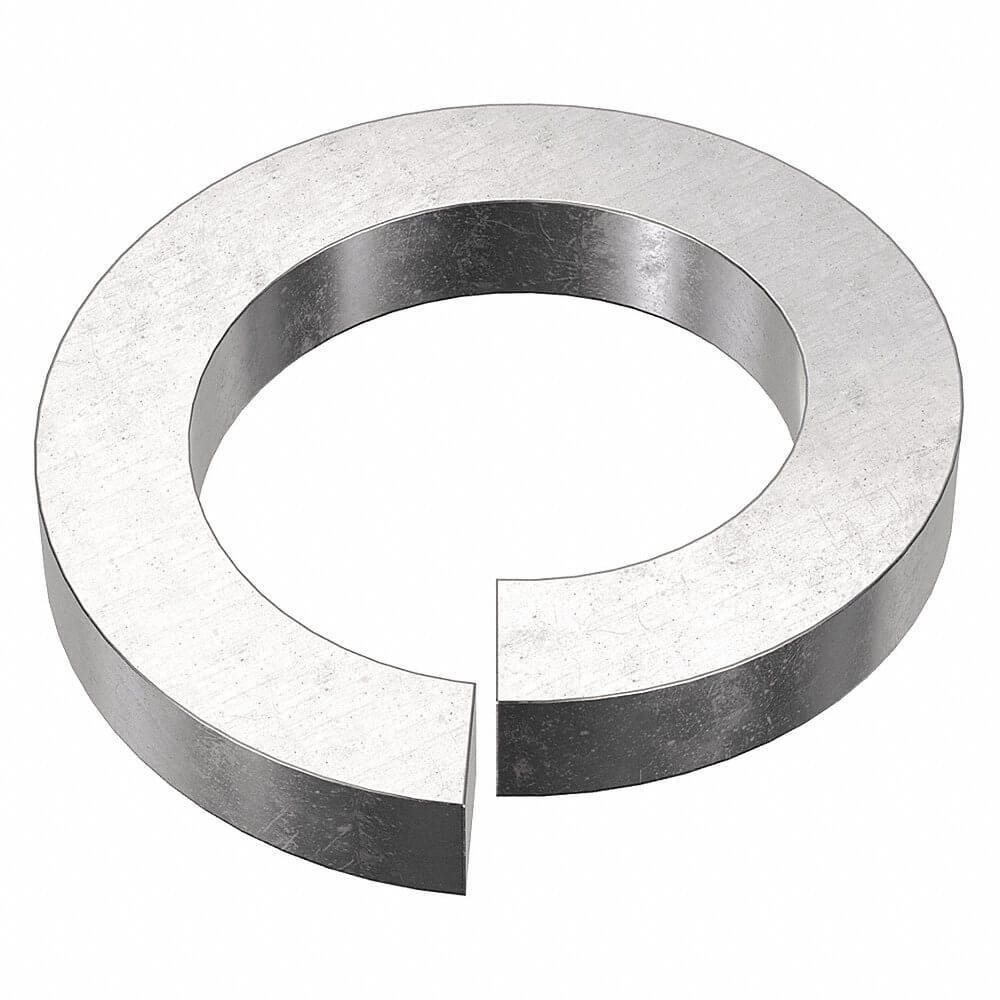

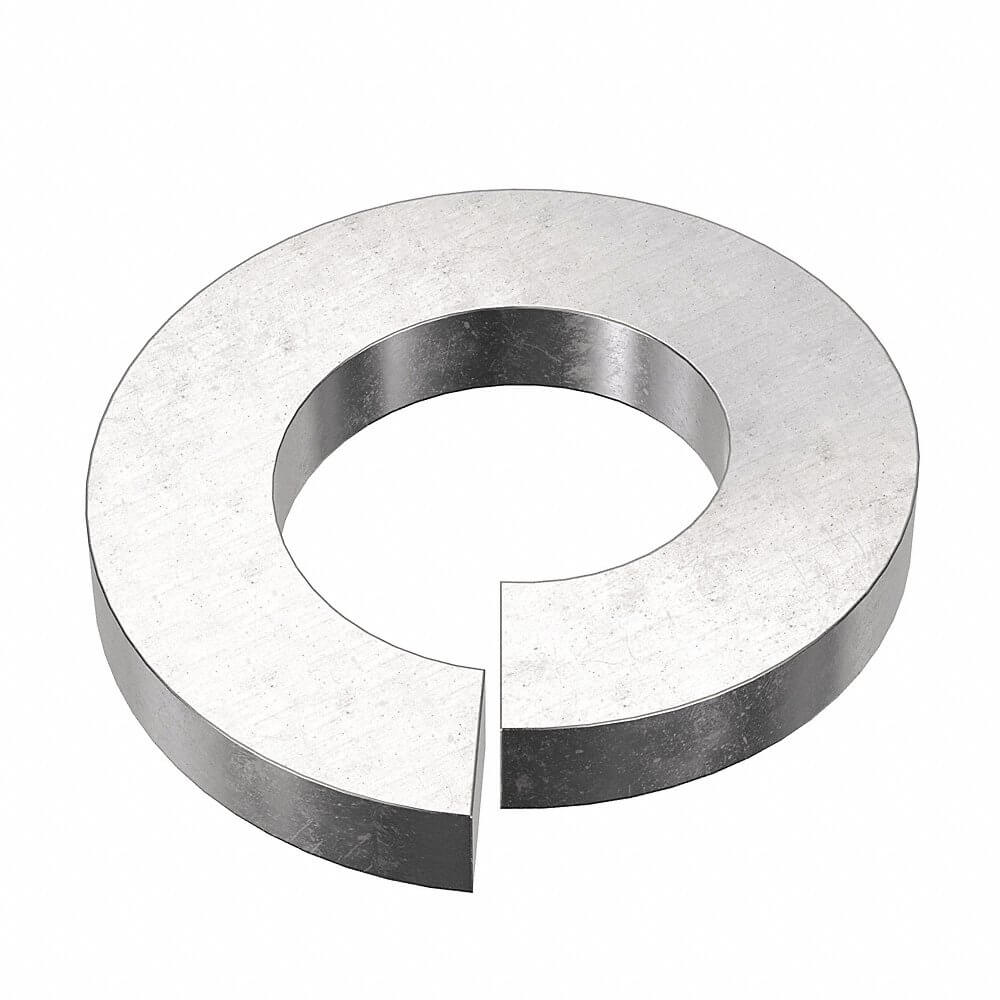

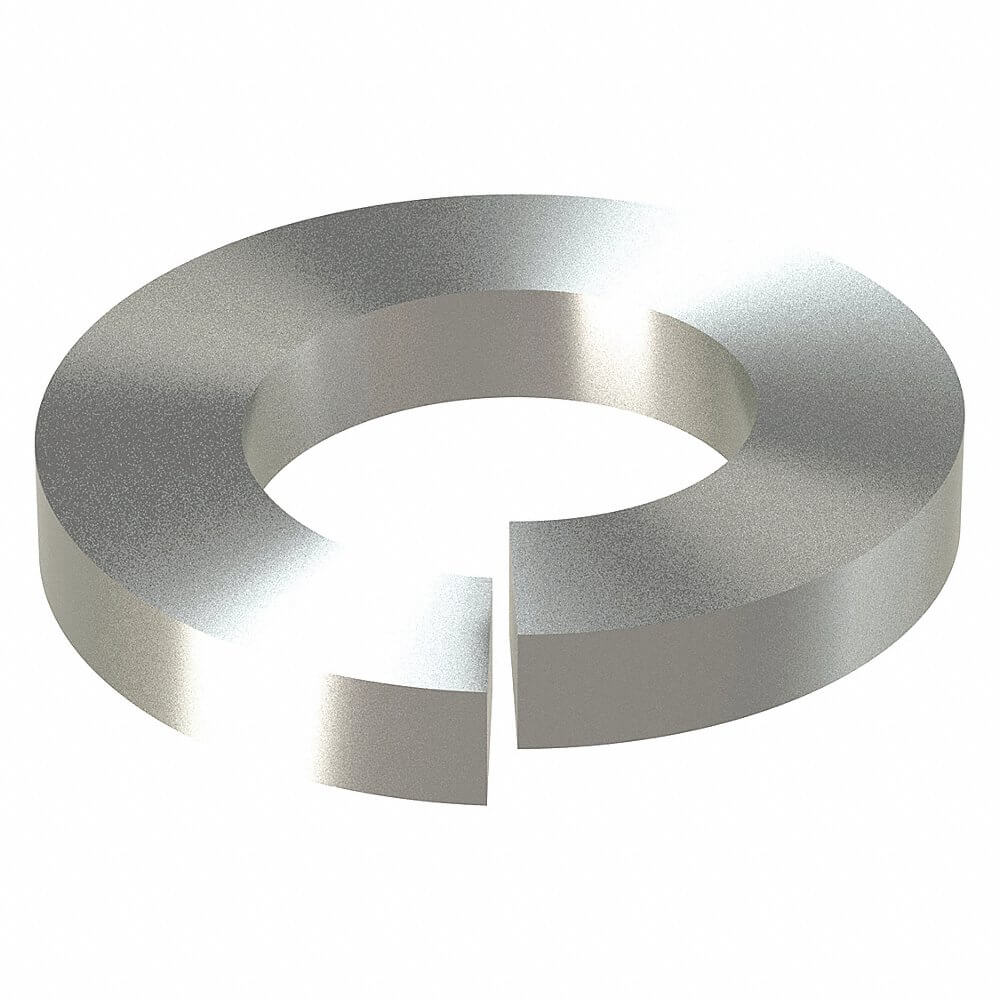

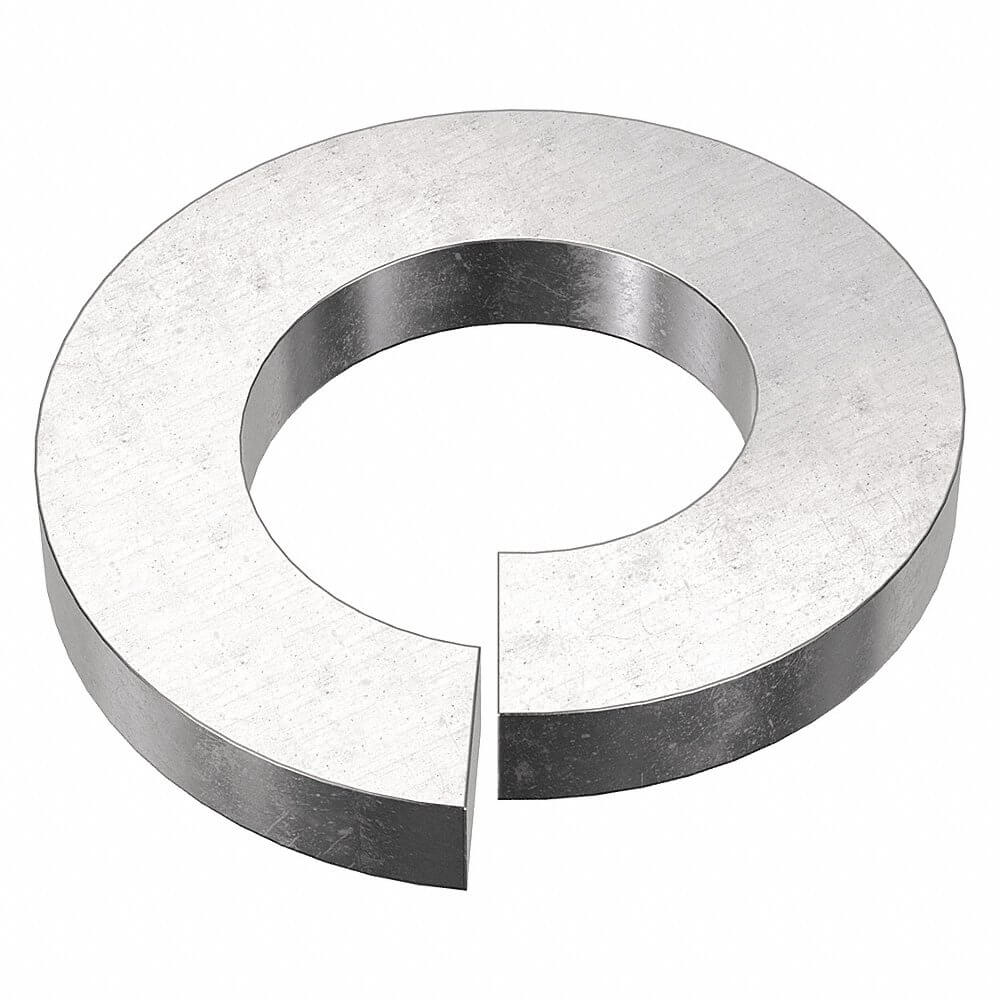

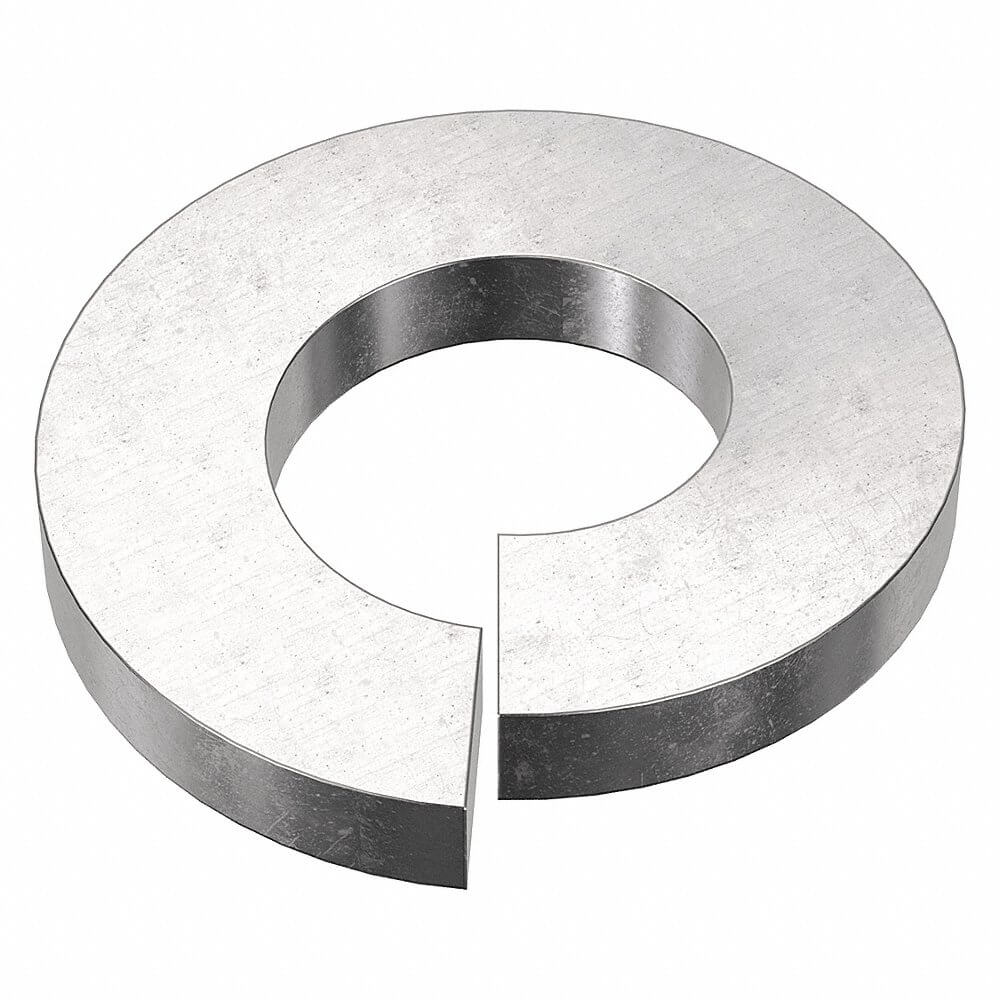

Plain Grade A4 Stainless Steel Split Lock Washers
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S| Style | Model | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Max. Thickness | Min. Thickness | For Screw Size | Class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M55450.020.0001 | 2.1 mm | 4.4 mm | 0.5 mm | - | 0.5 mm | 0.5 mm | M2 | Not Applicable | 50 | €3.00 | |
| B | M55450.025.0001 | 2.6 mm | 5.1 mm | 0.6 mm | - | 0.6 mm | 0.6 mm | M2.5 | Not Applicable | 50 | €2.83 | |
| C | M55450.030.0001 | 3.1 mm | 6.2 mm | 0.8 mm | - | 0.8 mm | 0.8 mm | M3 | Not Applicable | 50 | €5.84 | |
| D | LW7XX00350-100P1 | 3.6 mm | 6.7 mm | 0.8 mm | -0.1 mm to +0.1 mm | 0.8 mm | 0.8 mm | M3.5 | Not Applicable | 100 | €9.50 | |
| E | M55450.040.0001 | 4.1 mm | 7.6 mm | 0.9 mm | - | 0.9 mm | 0.9 mm | M4 | Not Applicable | 50 | €3.99 | |
| F | M55390.050.0001 | 5.1 mm | 8.8 mm | 1.6 mm | - | 1.6 mm | 1.6 mm | M5 | Not Applicable | 50 | €5.28 | |
| G | M55450.050.0001 | 5.1 mm | 9.2 mm | 1.2 mm | - | 1.2 mm | 1.2 mm | M5 | Not Applicable | 50 | €7.29 | |
| H | M55450.060.0001 | 6.1 mm | 11.8 mm | 1.6 mm | - | 1.6 mm | 1.6 mm | M6 | Not Applicable | 50 | €6.77 | |
| I | M55390.060.0001 | 6.1 mm | 9.9 mm | 1.6 mm | - | 1.6 mm | 1.6 mm | M6 | Not Applicable | 50 | €5.45 | |
| J | M55390.080.0001 | 8.1 mm | 12.7 mm | 2 mm | - | 2 mm | 2 mm | M8 | Not Applicable | 50 | €4.98 | |
| K | M55450.080.0001 | 8.1 mm | 14.8 mm | 2 mm | -0.1 mm to +0.1 mm | 2.1 mm | 1.9 mm | M8 | Not Applicable | 50 | €4.85 | |
| F | M55390.100.0001 | 10.2 mm | 16 mm | 2.5 mm | - | 2.5 mm | 2.5 mm | M10 | Not Applicable | 50 | €11.84 | |
| L | M55450.100.0001 | 10.2 mm | 18.1 mm | 2.2 mm | - | 2.2 mm | 2.2 mm | M10 | Not Applicable | 50 | €9.93 | |
| M | M55450.120.0001 | 12.2 mm | 21.1 mm | 2.5 mm | - | 2.5 mm | 2.5 mm | M12 | Not Applicable | 25 | €6.82 | |
| N | M55390.120.0001 | 12.2 mm | 18 mm | 2.5 mm | - | 2.5 mm | 2.5 mm | M12 | - | 50 | €14.13 | |
| O | M55450.140.0001 | 14.2 mm | 24.1 mm | 3 mm | -0.15 mm to +0.15 mm | - | - | - | Not Applicable | 25 | €14.13 | |
| P | M55450.160.0001 | 16.2 mm | 27.4 mm | 3.5 mm | - | 3.5 mm | 3.5 mm | M16 | Not Applicable | 10 | €6.54 | |
| Q | M55450.180.0001 | 18.2 mm | 29.4 mm | 3.5 mm | - | 3.5 mm | 3.5 mm | M18 | Not Applicable | 10 | €7.86 | |
| R | M55450.200.0001 | 20.2 mm | 33.6 mm | 4 mm | - | 4 mm | 4 mm | M20 | Not Applicable | 5 | €6.10 | |
| S | M55450.220.0001 | 22.5 mm | 35.9 mm | 4 mm | - | 4 mm | 4 mm | M22 | Not Applicable | 5 | €11.10 | |
| O | M55450.240.0001 | 24.5 mm | 40 mm | 5 mm | -0.2 mm to +0.2 mm | 5 mm | 5 mm | M24 | Not Applicable | 5 | €13.70 |
