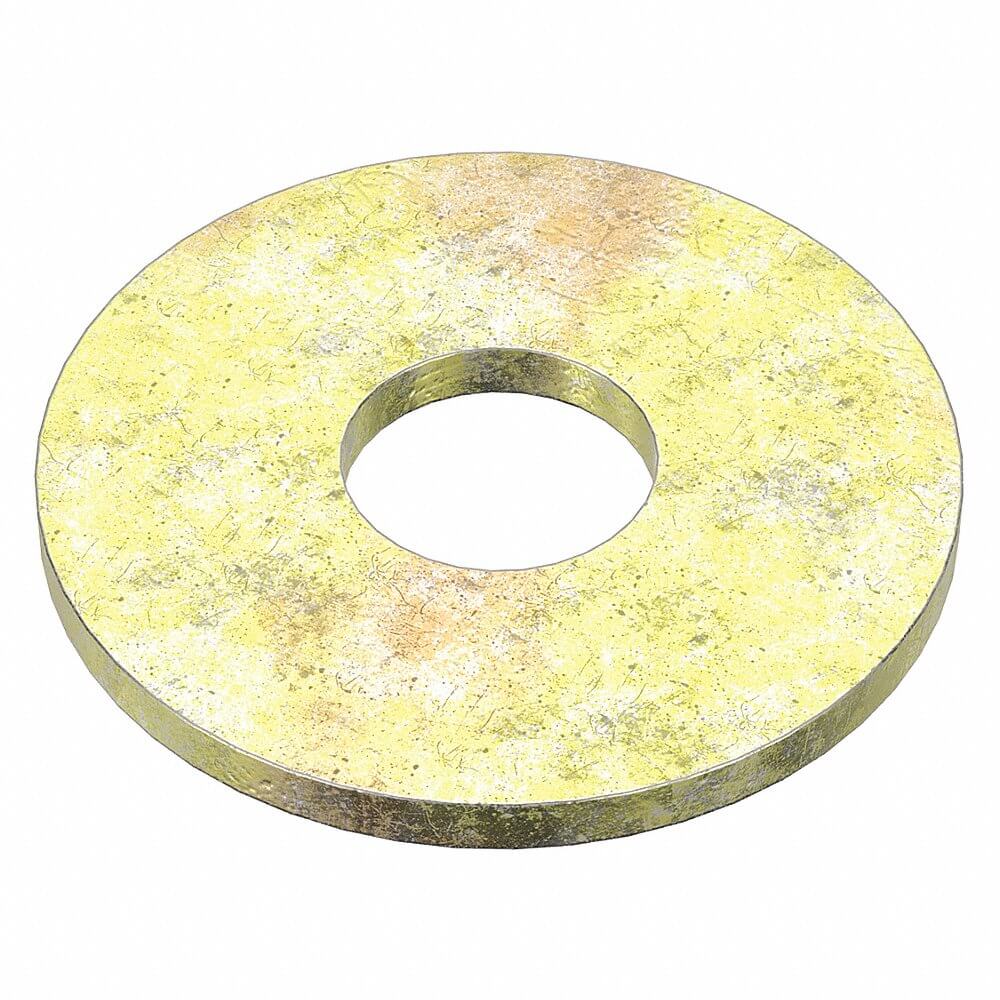

APPROVED VENDOR M38211.140.0001 Flat Washer, M14 Fits Bolt Size, Std, 15 mm I.D., 44 mm O.D., Steel
Get it by Monday, Mar 2
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€28.52 /pkg. of 50
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | Din 9021 |
| Finish | Zinc Yellow |
| Fits Bolt Sizes | M14 |
| Flat Washer Type | Standard |
| For Screw Size | M14 |
| Inside Dia. | 15 mm |
| Inside Diameter Tolerance | 0.591" to 0.601" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Maximum Temperature | 350°C |
| Maximum Thickness | 3 mm |
| Minimum Temperature | -58°C |
| Minimum Thickness | 3 mm |
| Outside Dia. | 44 mm |
| Outside Diameter Tolerance | 1.708" to 1.732" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Thickness | 3 mm |
| Thickness Tolerance | 0.106" to 0.13" |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 1.39 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Hardness | Color | Temp. Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M38211.030.0001 | M3 | 3.2 mm | 9 mm | 0.8 mm | 0.028" to 0.035" | - | - | -58°F to +302°F | 100 | €2.17 | |
 |
M38211.040.0001 | M4 | 4.3 mm | 12 mm | 1 mm | 0.035" to 0.043" | - | - | -58°F to +302°F | 100 | €2.84 | |
 |
M38211.050.0001 | M5 | 5.3 mm | 15 mm | 1.2 mm | 0.039" to 0.055" | - | - | -58°F to +302°F | 100 | €4.22 | |
 |
M38211.060.0001 | M6 | 6.4 mm | 18 mm | 1.6 mm | - | - | - | -58°F to +302°F | 100 | €6.20 | |
 |
M38211.070.0001 | M7 | 7.4 mm | 22 mm | 2 mm | - | - | - | -58°F to +302°F | 100 | €11.48 | |
 |
M38211.080.0001 | M8 | 8.4 mm | 24 mm | 2 mm | - | - | - | -58°F to +302°F | 100 | €11.62 | |
 |
M38211.100.0001 | M10 | 10.5 mm | 30 mm | 2.5 mm | 0.091" to 0.106" | - | - | -58°F to +302°F | 100 | €22.76 |
