CROSBY Anchor Shackles
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M| Style | Model | Inside Length | Inside Width | Width Between Eyes | Pin Dia. | Working Load Limit | Pin Type | Finish | Pin Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1018419 | 1 1/2" | 1" | 5/8" | 1/2" | 2000 lbs. | Removable Screw Pin | Galvanized | Screw | €19.46 | |
| B | 1018400 | 1 1/4" | 13/16" | 1/2" | 3/8" | 1500 lbs. | Removable Screw Pin | Painted | Screw | €17.13 | |
| C | 1018393 | 1 1/4" | 13/16" | 1/2" | 3/8" | 1500 lbs. | Removable Screw Pin | Galvanized | Screw | €16.15 | |
| B | 1018384 | 1 1/8" | 3/4" | 1/2" | 1/4" | 1000 lbs. | Removable Screw Pin | Painted | Screw | €13.50 | |
| D | 1018375 | 1 1/8" | 3/4" | 1/2" | 1/4" | 1000 lbs. | Removable Screw Pin | Galvanized | Screw | €13.50 | |
| E | 1018464 | 1 7/8" | 1 5/16" | 13/16" | 5/8" | 4000 lbs. | Removable Screw Pin | Painted | Screw | €27.81 | |
| F | 1019481 | 1 7/8" | 1 5/16" | 13/16" | 5/8" | 4000 lbs. | Removable Bolt, Nut | Painted | Bolt, Cotter, Nut | €56.73 | |
| G | 1018455 | 1 7/8" | 1 5/16" | 13/16" | 5/8" | 4000 lbs. | Removable Screw Pin | Galvanized | Screw | €27.81 | |
| B | 1018428 | 1 7/16" | 1" | 11/16" | 0.438" | 2000 lbs. | Removable Screw Pin | - | Screw Pin | €19.46 | |
| G | 1018437 | 1 11/16" | 1 3/16" | 3/4" | 1/2" | 3000 lbs. | Removable Screw Pin | Galvanized | Screw | €24.20 | |
| B | 1018446 | 1 11/16" | 1 3/16" | 3/4" | 1/2" | 3000 lbs. | Removable Screw Pin | Painted | Screw | €24.20 | |
| B | 1018482 | 2 3/8" | 1 11/16" | 1 1/16" | 3/4" | 6500 lbs. | Removable Screw Pin | Painted | Screw | €50.55 | |
| G | 1018473 | 2 3/8" | 1 11/16" | 1 1/16" | 3/4" | 6500 lbs. | Removable Screw Pin | Galvanized | Screw | €59.68 | |
| H | 1019506 | 2 3/8" | 1 11/16" | 1 1/16" | 3/4" | 6500 lbs. | Removable Bolt, Nut | Painted | Bolt, Cotter, Nut | €72.18 | |
| F | 1019524 | 2 13/16" | 2" | 1 1/4" | 7/8" | 9500 lbs. | Removable Bolt, Nut | - | Bolt, Cotter, Nut | €104.59 | |
| G | 1018491 | 2 13/16" | 2" | 1 1/4" | 7/8" | 9500 lbs. | Removable Screw Pin | Galvanized | Screw | €88.88 | |
| I | 1018507 | 2 13/16" | 2" | 1 1/4" | 7/8" | 9500 lbs. | Removable Screw Pin | Painted | Screw | €72.62 | |
| G | 1018534 | 3 3/4" | 2 11/16" | 1 11/16" | 1 1/8" | 17000 lbs. | Removable Screw Pin | Galvanized | Screw | €165.41 | |
| J | 1018543 | 3 3/4" | 2 3/4" | 1 3/4" | 1 1/8" | 17000 lbs. | - | Painted | Screw | €134.59 | |
| K | 1019560 | 3 3/4" | 2 3/4" | 1 3/4" | 1 1/8" | 17000 lbs. | - | Painted | Bolt, Cotter, Nut | €205.03 | |
| G | 1018516 | 3 5/16" | 2 1/4" | 1 7/16" | 1" | 13000 lbs. | Removable Screw Pin | Galvanized | Screw | €105.54 | |
| B | 1018525 | 3 5/16" | 2 1/4" | 1 7/16" | 1" | 13000 lbs. | Removable Screw Pin | Painted | Screw | €98.50 | |
| F | 1019542 | 3 5/16" | 2 5/16" | 1 7/16" | 1" | 13000 lbs. | Removable Bolt, Nut | Painted | Bolt, Cotter, Nut | €144.43 | |
| G | 1018552 | 4 1/4" | 2 7/8" | 1 3/4" | 1 1/4" | 19000 lbs. | Removable Screw Pin | Galvanized | Screw | €248.18 | |
| B | 1018561 | 4 1/4" | 2 15/16" | 1 13/16" | 1 1/4" | 19000 lbs. | Removable Screw Pin | Painted | Screw | €186.24 | |
| F | 1019588 | 4 1/4" | 2 15/16" | 1 13/16" | 1 1/4" | 19000 lbs. | Removable Bolt, Nut | Painted | Bolt, Cotter, Nut | €295.36 | |
| B | 1018589 | 4 11/16" | 3 1/4" | 2" | 1 3/8" | 24000 lbs. | Removable Screw Pin | Painted | Screw | €273.56 | |
| G | 1018570 | 4 11/16" | 3 1/4" | 2" | 1 3/8" | 24000 lbs. | Removable Screw Pin | Galvanized | Screw | €289.54 | |
| F | 1019604 | 4 11/16" | 3 1/4" | 2" | 1 3/8" | 24000 lbs. | Removable Bolt, Nut | Painted | Bolt, Cotter, Nut | €442.98 | |
| G | 1018598 | 5 1/4" | 3 5/8" | 2 1/4" | 1 1/2" | 27000 lbs. | Removable Screw Pin | Galvanized | Screw | €458.13 | |
| F | 1019622 | 5 1/4" | 3 5/8" | 2 1/4" | - | 27000 lbs. | Removable Bolt, Nut | - | Bolt, Cotter, Nut | €488.57 | |
| B | 1018605 | 5 1/4" | 3 5/8" | 2 1/4" | 1 1/2" | 27000 lbs. | Removable Screw Pin | Painted | Screw | €351.77 | |
| F | 1019640 | 5 3/4" | 3 7/8" | 2 3/8" | 1 5/8" | - | Removable Bolt, Nut | Paint | Bolt, Cotter, Nut | €608.86 | |
| G | 1018614 | 5 3/4" | 3 7/8" | 2 3/8" | 1 5/8" | 34000 lbs. | Removable Screw Pin | Galvanized | Screw | €567.27 | |
| B | 1018669 | 7 1/4" | 5 3/4" | 3 1/4" | 2 1/4" | 70000 lbs. | Removable Screw Pin | Painted | Screw | €944.60 | |
| F | 1019686 | 7 3/4" | 5 3/4" | - | 2 1/4" | - | Removable Bolt, Nut | Paint | Bolt, Cotter, Nut | €1,457.68 | |
| B | 1018641 | 7" | 5" | 2 7/8" | 2" | 50000 lbs. | Removable Screw Pin | Painted | Screw | €700.96 | |
| L | 1019668 | 7" | 5" | 2 7/8" | - | - | Removable Bolt, Nut | Paint | Bolt, Cotter, Nut | €804.29 | |
| M | 1018357 | 7/8" | 5/8" | 3/8" | 1/4" | 666 lbs. | Removable Screw Pin | Galvanized | Screw | €15.34 | |
| B | 1018687 | 10 1/2" | 7 1/4" | 4 1/8" | 2 3/4" | 110000 lbs. | Removable Screw Pin | Painted | Screw | €2,425.89 | |
| F | 1019702 | 10 1/2" | 7 1/4" | 4 1/8" | 2 3/4" | 110000 lbs. | - | Painted | Bolt, Cotter, Nut | €3,200.88 |
Anchor Shackles

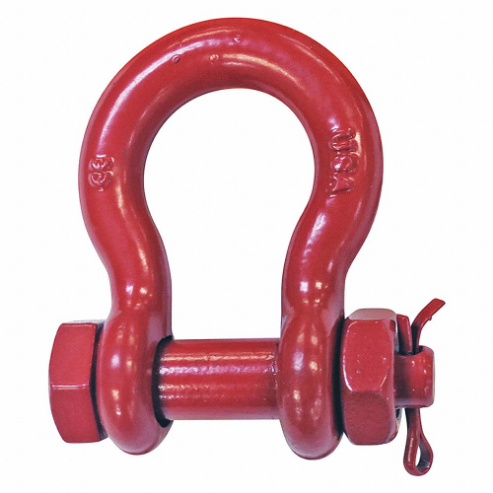

Crosby anchor shackles are designed to provide high strength in lifting, pulling or rigging operations. These shackles meet or exceed all requirements of ASME B30.26 standards and feature carbon steel construction in a bolt-type design to handle a maximum load of 110000 lb. They are suited for permanent and long-term installations where the load may slide on the shackle pin, thereby causing the pin to rotate. These shackles are permanently marked with the rated size and working load limit (WLL) in tons. Choose from a wide range of these Crosby shackles, available in painted and galvanised finish variants on Raptor Supplies.
