MARTIN SPROCKET Reborable Type Cast Iron Stock Spur Gears, 8 Diameter Pitch
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P| Style | Model | Pitch Dia. | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TC880 | 1" | 20° | 80 | 1 1/2" | 3 1/4" | 1.125" to 2.063" | External Tooth Reborable | 1 1/4" | €499.71 | |
| B | C880 | 1" | 14.5° | 80 | 1 1/4" | 2.9845" | 1 1/8" to 1 13/16" | Reboreable | 1 1/4" | €499.71 | |
| C | TC8160 | 2" | 20° | 160 | 1 1/2" | 3 3/4" | 1 1/4" to 2 1/4" | External Tooth Reborable | 1 1/2" | €1,004.68 | |
| D | C8160 | 2" | 14.5° | 160 | 1 1/4" | 3.7345" | 1 1/8" to 2 5/16" | Reboreable | 1 1/4" | €1,004.68 | |
| B | TC8144 | 4.301" | 20° | 144 | 1 1/2" | 3 3/4" | 1 1/8" to 2 1/4" | Reboreable | 1 1/4" | €917.69 | |
| E | TC852 | 6 1/2" | 20° | 52 | 1 1/2" | 3" | 1" to 1 7/8" | Reboreable | 1" | €363.34 | |
| F | C852 | 6 1/2" | 14.5° | 52 | 1 1/4" | 2.735" | 1" to 1.688" | External Tooth Reborable | 1" | €423.90 | |
| E | C854 | 6 3/4" | 14.5° | 54 | 1 1/4" | 2.7345" | 1" to 1 11/16" | Reboreable | 1" | €434.56 | |
| G | C860 | 7 1/2" | 14.5° | 60 | 1 1/4" | 2.735" | 1" to 1.688" | External Tooth Reborable | 1" | €476.91 | |
| H | TC860 | 7 1/2" | 20° | 60 | 1 1/2" | 3" | 1" to 1 7/8" | Reboreable | 1" | €408.78 | |
| H | C856 | 7" | 14.5° | 56 | 1 1/4" | 2.7345" | 1" to 1 11/16" | Reboreable | 1" | €455.97 | |
| I | TC856 | 7" | 20° | 56 | 1 1/2" | 3" | 1" to 1 7/8" | Reboreable | 1" | €390.84 | |
| B | C868 | 8 1/2" | 14.5° | 68 | 1 1/4" | 2.9845" | 1" to 1 13/16" | Reboreable | 1" | €519.73 | |
| B | C864 | 8" | 14.5° | 64 | 1 1/4" | 2.7345" | 1" to 1 11/16" | Reboreable | 1" | €498.32 | |
| B | TC864 | 8" | 20° | 64 | 1 1/2" | 3" | 1" to 1 7/8" | Reboreable | 1" | €427.13 | |
| J | C876 | 9 1/2" | 14.5° | 76 | 1 1/4" | 2.985" | 1" to 1.813" | External Tooth Reborable | 1" | €490.55 | |
| B | C872 | 9" | 14.5° | 72 | 1 1/4" | 2.9845" | 1" to 1 13/16" | Reboreable | 1" | €463.43 | |
| K | TC872 | 9" | 20° | 72 | 1 1/2" | 3 1/4" | 1" to 2 1/16" | Reboreable | 1" | €463.43 | |
| B | C884 | 10 1/2" | 14.5° | 84 | 1 1/4" | 2.9845" | 1 1/8" to 1 13/16" | Reboreable | 1 1/4" | €518.04 | |
| L | C892 | 11 1/2" | 14.5° | 92 | 1 1/4" | 3.235" | 1.125" to 2.063" | External Tooth Reborable | 1 1/4" | €572.69 | |
| B | C888 | 11" | 14.5° | 88 | 1 1/4" | 2.9845" | 1 1/8" to 1 13/16" | Reboreable | 1 1/4" | €545.18 | |
| B | TC888 | 11" | 20° | 88 | 1 1/2" | 3 1/4" | 1 1/8" to 2 1/16" | Reboreable | 1 1/4" | €545.18 | |

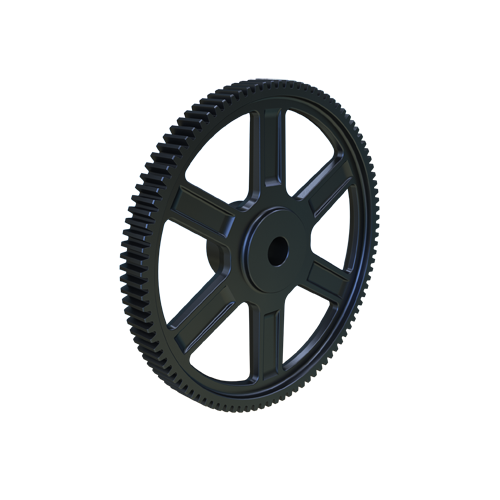

| M | C8100 | 12 1/2" | 14.5° | 100 | 1 1/4" | 3.2345" | 1 1/8" to 2 1/16" | Reboreable | 1 1/4" | €636.10 | |
| B | C896 | 12" | 14.5° | 96 | 1 1/4" | 3.2345" | 1 1/8" to 2 1/16" | Reboreable | 1 1/4" | €608.99 | |
| B | TC896 | 12" | 20° | 96 | 1 1/2" | 3 1/2" | 1 1/8" to 2 1/8" | Reboreable | 1 1/4" | €608.99 | |
| N | C8112 | 14" | 14.5° | 112 | 1 1/4" | 3.2345" | 1 1/8" to 2 1/16" | Reboreable | 1 1/4" | €690.73 | |
| B | TC8112 | 14" | 20° | 112 | 1 1/2" | 3 1/2" | 1 1/8" to 2 1/8" | Reboreable | 1 1/4" | €690.73 | |
| N | C8120 | 15" | 14.5° | 120 | 1 1/4" | 3.2345" | 1 1/8" to 2 1/16" | Reboreable | 1 1/4" | €744.98 | |
| O | TC8120 | 15" | 20° | 120 | 1 1/2" | 3 1/2" | 1 1/8" to 2 1/8" | Reboreable | 1 1/4" | €744.98 | |
| N | C8128 | 16" | 14.5° | 128 | 1 1/4" | 3.4845" | 1 1/8" to 2 3/16" | Reboreable | 1 1/4" | €790.43 | |
| P | TC8128 | 16" | 20° | 128 | 1 1/2" | 3 1/2" | 1 1/8" to 2 1/8" | Reboreable | 1 1/4" | €790.43 | |
| N | C8144 | 18" | 14.5° | 144 | 1 1/4" | 3.4845" | 1 1/8" to 2 3/16" | Reboreable | 1 1/4" | €917.69 | |
| N | C8168 | 21" | 14.5° | 168 | 1 1/4" | 3.7345" | 1 1/8" to 2 5/16" | Reboreable | 1 1/4" | €1,066.04 |
