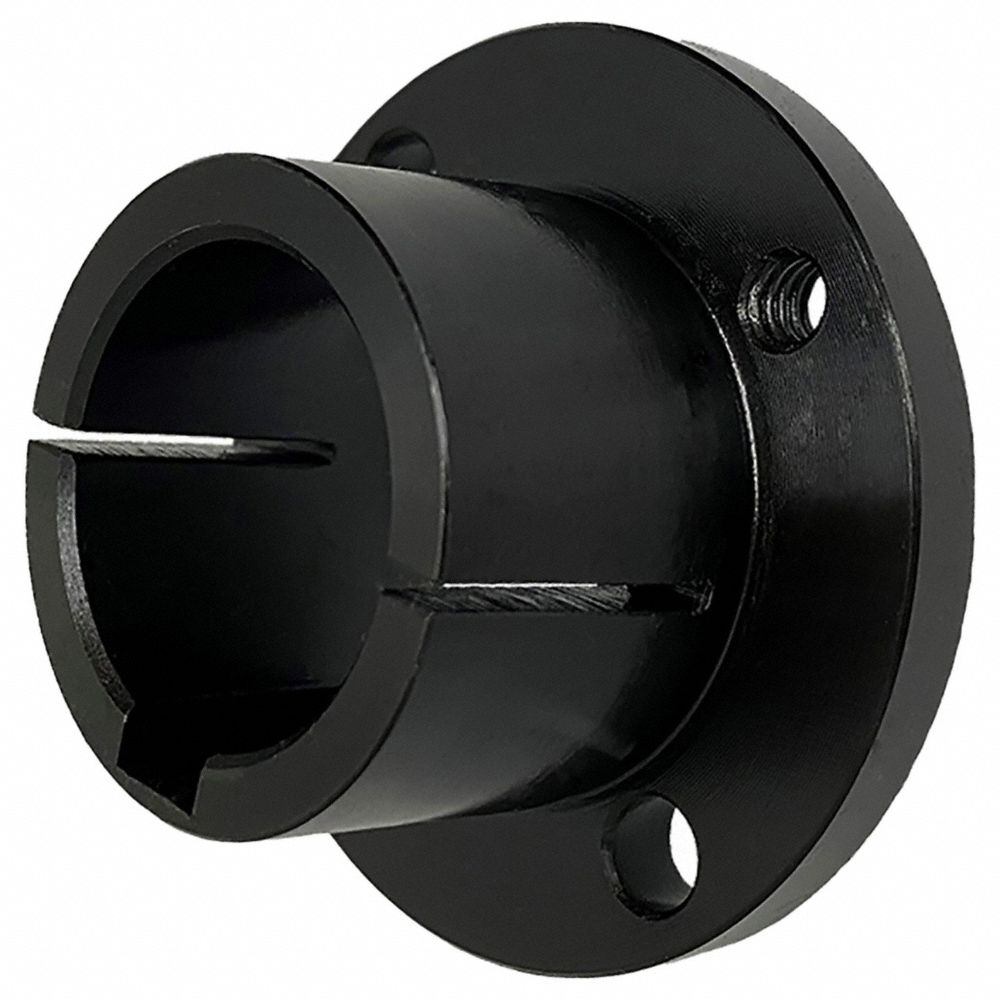

APPROVED VENDOR HX30MM Split Taper Bushing, H, 30 mm Bore Dia, 2 Inch Bolt Dia, Cast Iron
Item: EA4EELModel: HX30MMCross Ref: 813C93
7 In Stock
Ships within 2 days via
5.00% off
€29.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Taper Bushing |
| Bolt Circle Dia. | 2" |
| Bore Bushing Series | H, H Series |
| Bore Dia. | 30 mm |
| Bore System Of Measurement | Metric |
| Bushing Type | Split Taper |
| Fastener Tightening Torque | 95 lbs.-in. |
| Flange Thickness | 1/4" |
| Flange Type | Solid |
| For Shaft Type | Keyed |
| Includes | (2) Cap Screws |
| Keyway Depth | 3.5 mm |
| Keyway Width | 8 mm |
| Large Barrel Dia. | 1 5/8" |
| Length | 1 1/4" |
| Length Less Flange | 1" |
| Material | Steel |
| Overall Dia. | 2 1/2" , 2.5" |
| Overall Length | 1 1/4" |
| Small Barrel Dia. | 1.57" |
| System Of Measurement | Metric |
| Taper | 0.75 In./Ft. , 3/4 In./Ft. |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 4.06 |
| Country of Origin | CN |
Product Variants
| Model | Bolt Circle Dia. | Bore Dia. | Overall Dia. | Length Less Flange | Bore Bushing Series | Small Barrel Dia. | Flange Thickness | Fastener Tightening Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BX1116 | 3.13" | 1 1/16" | 3.688" | 1.438" | B Series | 2.557" | 1/2" | 192 lbs.-in. | €99.52 | |
| BX1116 | - | - | 3.688" | - | - | 2.557" | - | - | €99.52 | |
| BX1316 | 3.13" | 1 3/16" | 3.688" | 1.438" | B Series | 2.557" | 1/2" | 192 lbs.-in. | €99.52 | |
| BX1316 | - | - | 3.688" | - | - | 2.557" | - | - | €99.52 | |
| BX1516 | 3.13" | 1 5/16" | 3.688" | 1.438" | B Series | 2.557" | 1/2" | 192 lbs.-in. | €99.52 | |
| BX1516 | - | - | 3.688" | - | - | 2.557" | - | - | €99.52 | |
| HX1116 | 2" | 11/16" | 2 1/2" | 1" | H Series | 1.57" | 1/4" | 95 lbs.-in. | €31.10 |
