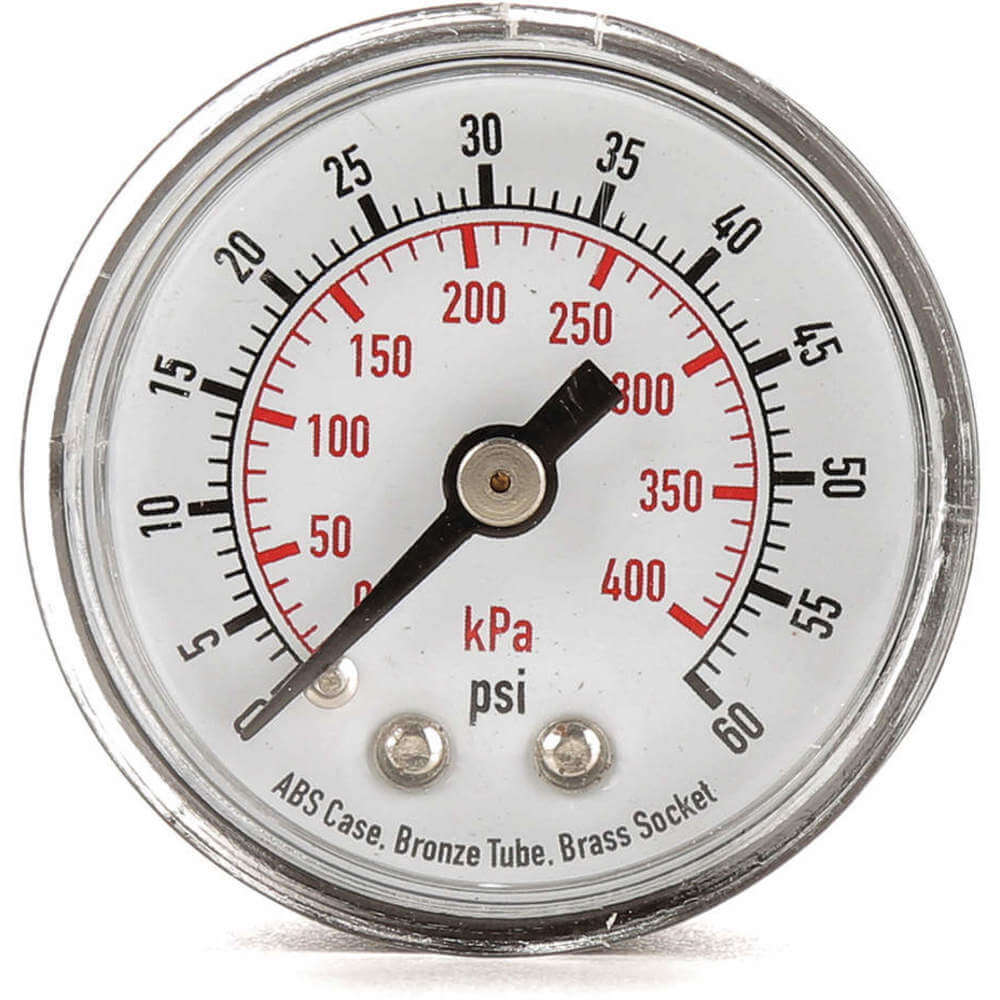

APPROVED VENDOR 4FLZ5 Pressure Gauge Test 1-1/2 In
Item: AD7NBXModel: 4FLZ5
7 In Stock
Ships within 2 days via
10.00% off
€18.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-3-2-3% |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -40°F to +150°F |
| Application | Test and Measurement |
| Bezel Material | Crimped Stainless Steel |
| Blowout Safety Back | No |
| Case Color | Black |
| Case Material | Plastic |
| Cleaned For Oxygen Service | No |
| Connection Location | Back |
| Dial Color | White |
| Dial Size | 1 1/2" |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Application | General Purpose Case |
| Gauge Case Material | ABS Plastic |
| Gauge Type | Test |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip/nema Rating | Not Rated |
| Lens Material | Acrylic |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 1 1/2" |
| Non-sparking | No |
| Operating Temp. Range | -40°F to +150°F |
| Panel-mountable | No |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Range | 0 psi to 30 psi |
| Pressure Range Type | Pressure |
| Primary Graduations | 0.5 |
| Primary Pressure Range | 0 psi to 30 psi |
| Primary Scale Minor Graduations | 0.5 |
| Primary Scale Units | Psi |
| Process Connection | 1/8" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Ring Material | Crimped Stainless Steel |
| Scale Type | Dual |
| Secondary Pressure Range | 0 psi to 200 psi |
| Secondary Range | 0 kPa to 200 kPa |
| Secondary Scale Units | Kpa |
| Sensor Material | Bronze |
| Smallest Graduation | 0.5 psi |
| Socket Material | Brass |
| Tube Material | Bronze |
| Wetted Parts Material | Brass, Bronze |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 4.83 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 4.32 |
| HS code | 9026208000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Pressure Gauge Type | Pressure Range Type | Process Connection Location | Nominal Dial Size | Panel-mountable | Mounting Type | Lens Material | Operating Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11A497 | Process Pressure Gauge | Pressure | Bottom | 4 1/2" | Yes | Surface | Polycarbonate | -40°F to +140°F | €246.01 | |
 |
11A524 | Process Pressure Gauge | Compound | Bottom | 4 1/2" | Yes | Surface | Glass | -40°F to +140°F | €208.24 | |
 |
11A527 | Process Pressure Gauge | Pressure | Bottom | 4 1/2" | Yes | Surface | Glass | -40°F to +140°F | €208.24 | |
 |
11A531 | Process Pressure Gauge | Pressure | Bottom | 4 1/2" | Yes | Surface | Glass | -40°F to +140°F | €177.00 | |
 |
18C739 | Industrial Pressure Gauge | Vacuum | Bottom | 4 1/2" | No | Stem Mount | Acrylic | -40°F to +200°F | €63.98 | |
 |
18C741 | Industrial Pressure Gauge | Compound | Bottom | 4 1/2" | No | Stem Mount | Acrylic | -40°F to +200°F | €63.98 | |
 |
18C742 | Industrial Pressure Gauge | Compound | Bottom | 4 1/2" | No | Stem Mount | Acrylic | -40°F to +200°F | €63.98 |
