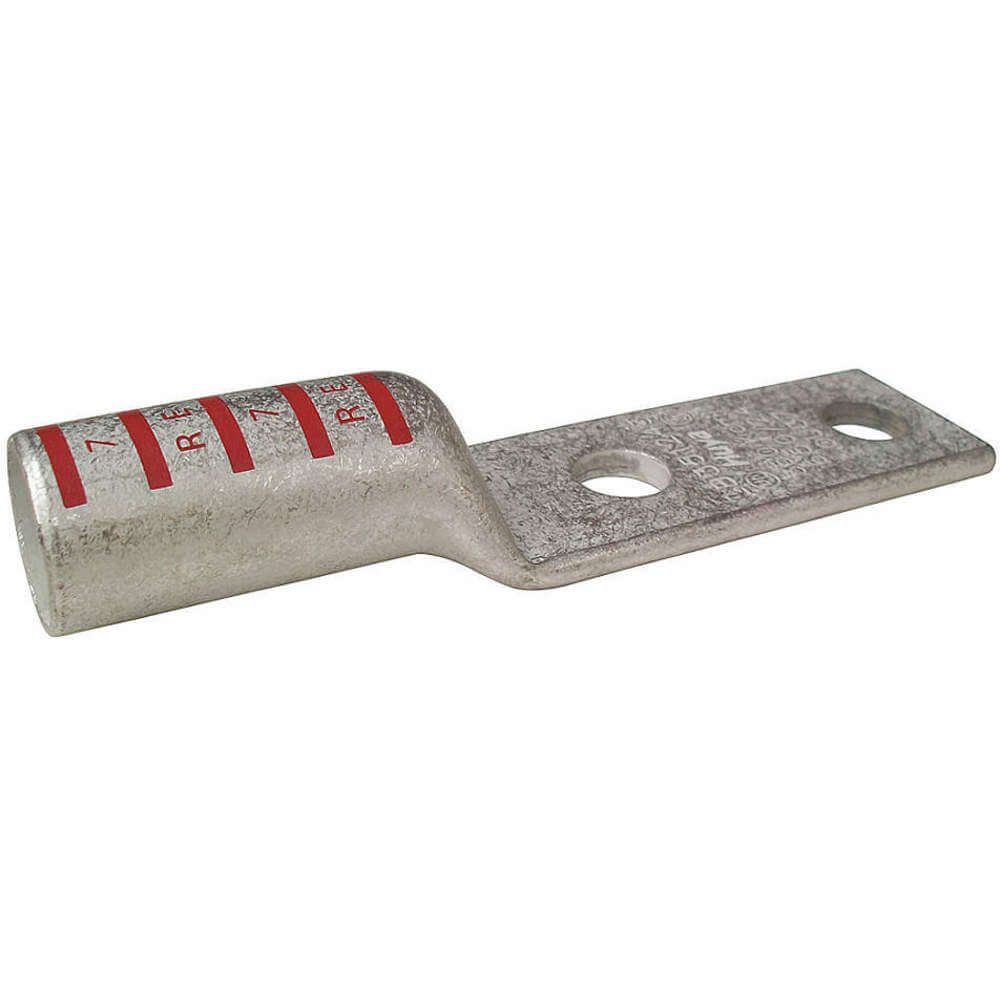

APPROVED VENDOR 24D030 Lug 2 Holes 350kcmli 71 Die Red
Item: AB7VUKModel: 24D030
7 In Stock
Ships within 2 days via
5.00% off
€29.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Lug |
| Amps | 505A |
| Barrel Inside Dia. | 0.75" |
| Barrel Outside Dia. | 0.93" |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Cable Size | 350 kcmil |
| Cable Size Code | 350 kcmil |
| Color Code | Red |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 71 |
| For Conductor Material | Copper |
| For Stud Size | 1/4" |
| For Wire Size | 350 kcmil |
| For Wire Type | Stranded |
| Hole Center To Center | 3/4" |
| Hole Center To End | 1/4" |
| Hole Size | 0.27" |
| Hole To Hole Center | 0.75" |
| Hole To Hole Center (in.) | 0.75 |
| Inspection Hole | No |
| Length | 4 7/25" |
| Material | Copper |
| Max. Operating Temp. | 300°F |
| Max. Voltage | 600V AC |
| Max. Wire Size | 350 kcmil |
| Min. For Stranded Copper Wire Size | 350 kcmil |
| No. Of Holes | 2 |
| Overall Length | 4.28" |
| Overall Width | 1 9/25" |
| Peep Hole | No |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Strip Length | 2" |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 1.93" |
| Tongue Style | Standard |
| Tongue Thickness | 0.18" |
| Tongue Width | 1.36" |
| Type | Standard |
| Width | 1 9/25" |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.63 |
| Ship length (cm) | 15.01 |
| Ship width (cm) | 7.49 |
| HS code | 8535908020 |
| Country of Origin | CN |
Product Variants
| Product | Model | No. Of Holes | Color Code | Strip Length | Stud Size | Cable Size | Tongue Width | Tongue Thickness | Hole Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

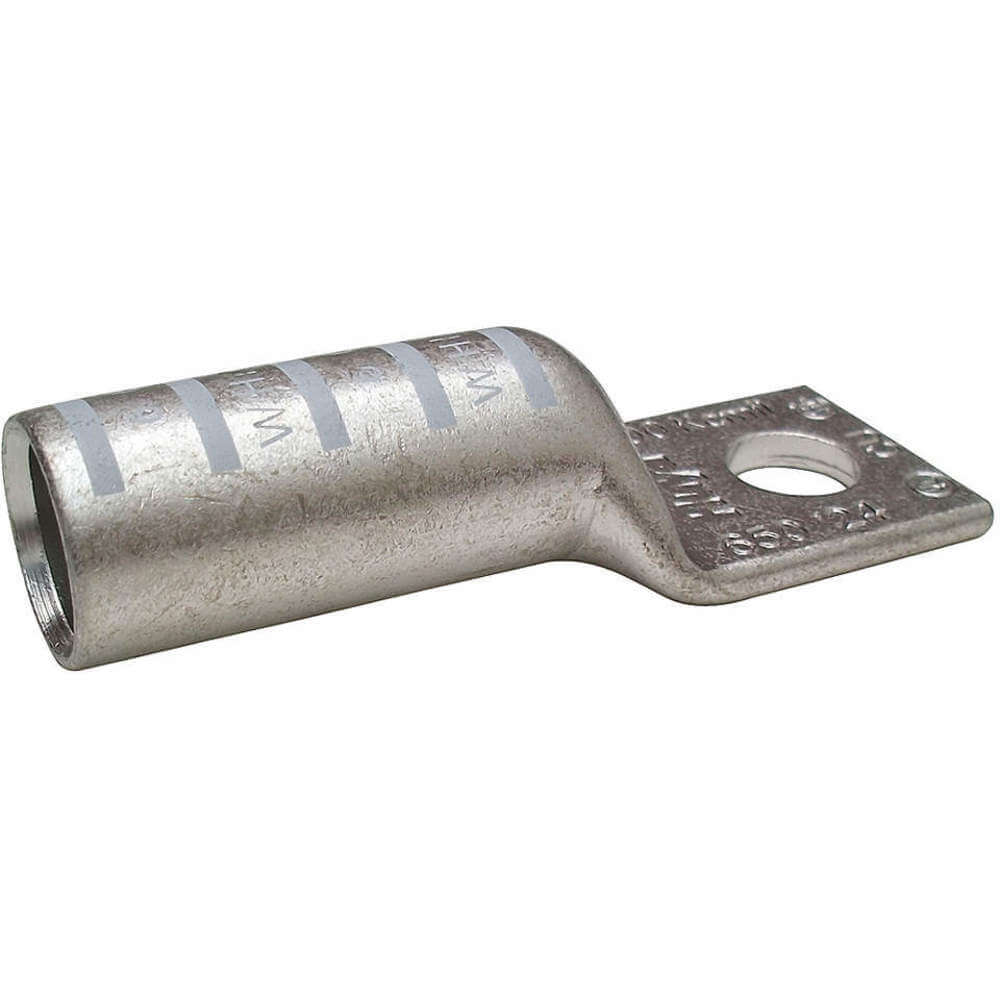

24C333 | 1 | White | 1 15/16" | 1/2" | 300 kcmil | 1 1/4" | 0.15" | 0.53" | €20.55 | |
 |

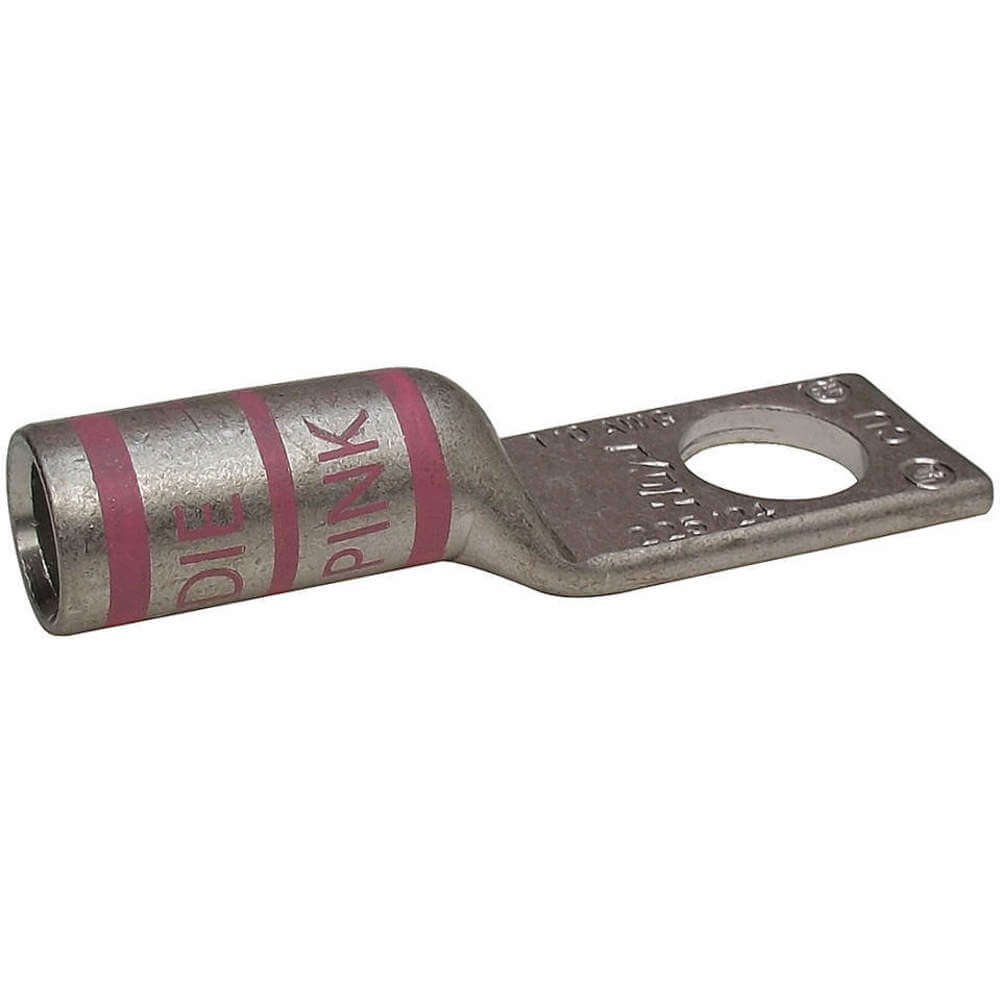

24D001 | 1 | Pink | 1 1/2" | - | - | 3/4" | 0.12" | 0.27" | €8.26 | |
 |

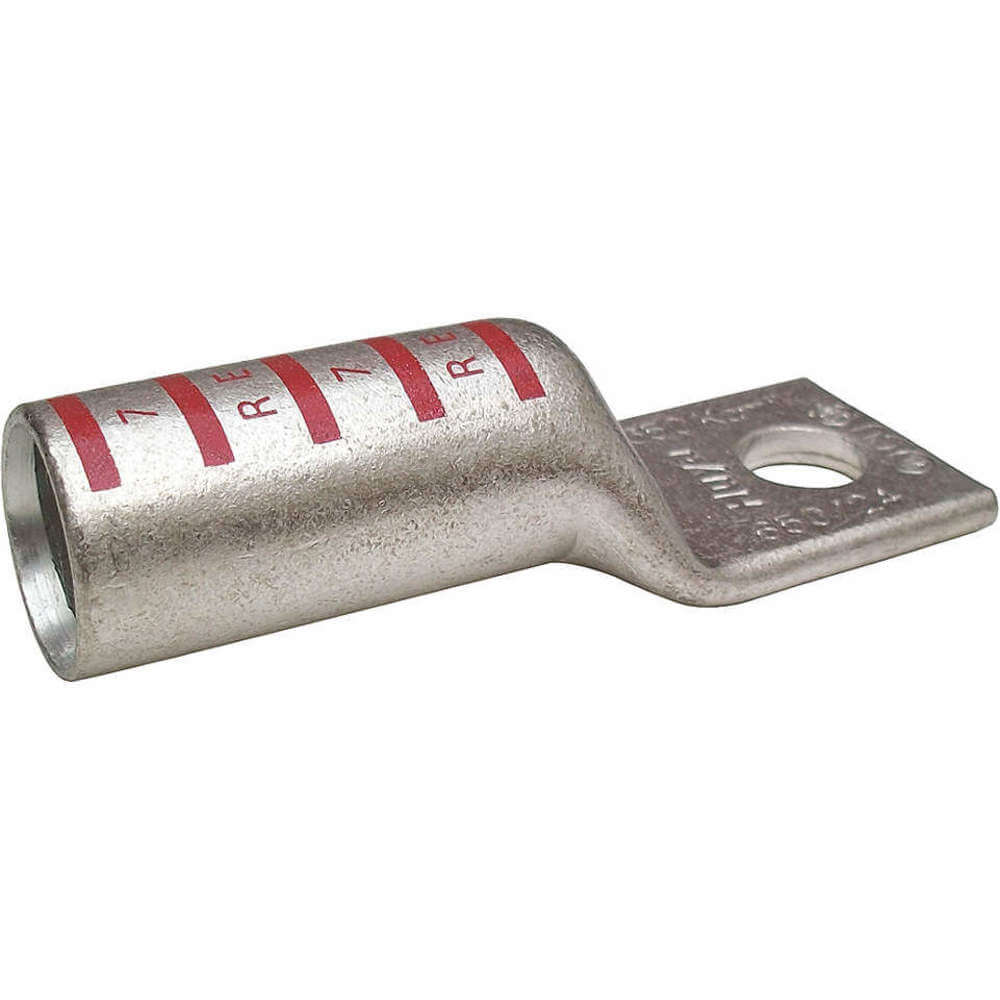

24D009 | 1 | Red | 2" | 3/8" | 350 kcmil | 1.359" | 0.19" | 0.405" | €28.27 | |
 |
24D010 | 1 | Blue | 2 7/16" | 3/8" | 400 kcmil | 1.39" | 0.19" | 0.405" | €31.05 | |
 |
24D018 | 2 | Green | 15/16" | 1/2" | - | 3/4" | 0.12" | 0.53" | €11.42 | |
 |

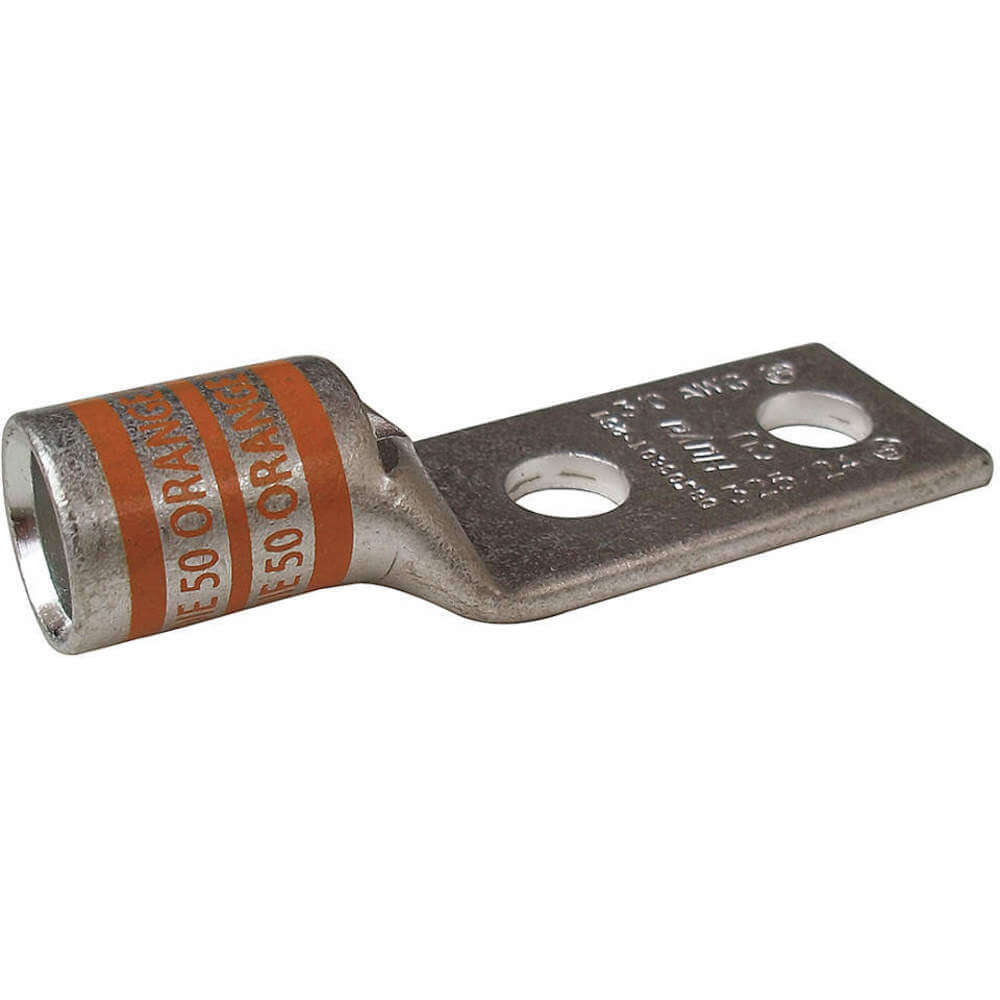

24D019 | 2 | Orange | 13/16" | - | - | 0.92" | 0.12" | 0.27" | €10.69 | |
 |

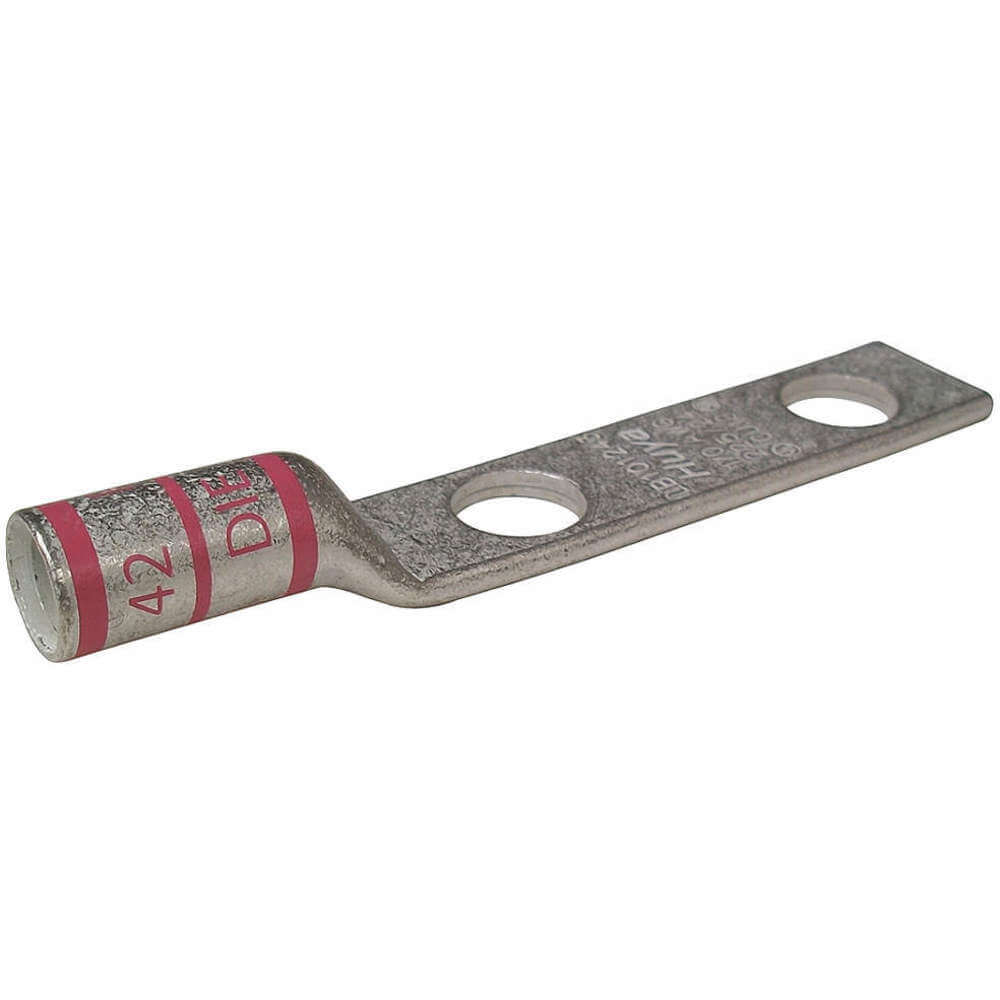

24D025 | 2 | Pink | 1 1/8" | 5/16" | - | 3/4" | 0.12" | 0.335" | €10.27 |
