APPROVED VENDOR 24D025 Lug 2 Holes 1/0awg 42 Die Pink
Item: AB7VUEModel: 24D025
7 In Stock
Ships within 2 days via
10.00% off
€8.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Lug |
| Barrel Id | 0.4" |
| Barrel Od | 13/25" |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Color Code | Pink |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Current | 230A |
| Die Code | 42 |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 1/0 AWG |
| For Wire Size | 1/0 AWG |
| For Wire Type | Stranded |
| Hole Center To Center | 0.88" |
| Hole Center To End | 0.38" |
| Hole Size | 0.335" |
| Hole To Hole Center | 0.88" |
| Hole To Hole Center (in.) | 0.88 |
| Inspection Hole | No |
| Length | 2 24/25" |
| Material | Copper |
| Maximum Operating Temperature | 300°F |
| Maximum Voltage | 600V AC |
| Maximum Wire Size | 1/0 AWG |
| Number Of Holes | 2 |
| Overall Length | 2.96" |
| Overall Width | 3/4" |
| Peep Hole | No |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Strip Length | 1 1/8" |
| Stud Size | 5/16" |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 1.63" |
| Tongue Style | Standard |
| Tongue Thickness | 0.12" |
| Type | Standard |
| Width | 3/4" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 1.63 |
| Ship length (cm) | 10.01 |
| Ship width (cm) | 5.99 |
| HS code | 8535908020 |
| Country of Origin | CN |
Product Variants
| Product | Model | Color Code | Stud Size | Cable Size | Peep Hole | Hole Center To End | Number Of Holes | Overall Length | Strip Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24C333 | White | 1/2" | 300 kcmil | No | 1/2" | 1 | 3.45" | 1 15/16" | €20.62 | |
 |
24D001 | Pink | - | - | Yes | 0.31" | 1 | 2.27" | 1 1/2" | €8.06 | |
 |
24D009 | Red | 3/8" | 350 kcmil | No | 1/2" | 1 | 3.6" | 2" | €27.55 | |
 |
24D010 | Blue | 3/8" | 400 kcmil | No | 1/2" | 1 | 4.07" | 2 7/16" | €31.54 | |
 |
24D018 | Green | 1/2" | - | Yes | 0.63" | 2 | 4.17" | 15/16" | €10.93 | |
 |
24D019 | Orange | - | - | Yes | 1/4" | 2 | 2.55" | 13/16" | €10.33 | |
 |

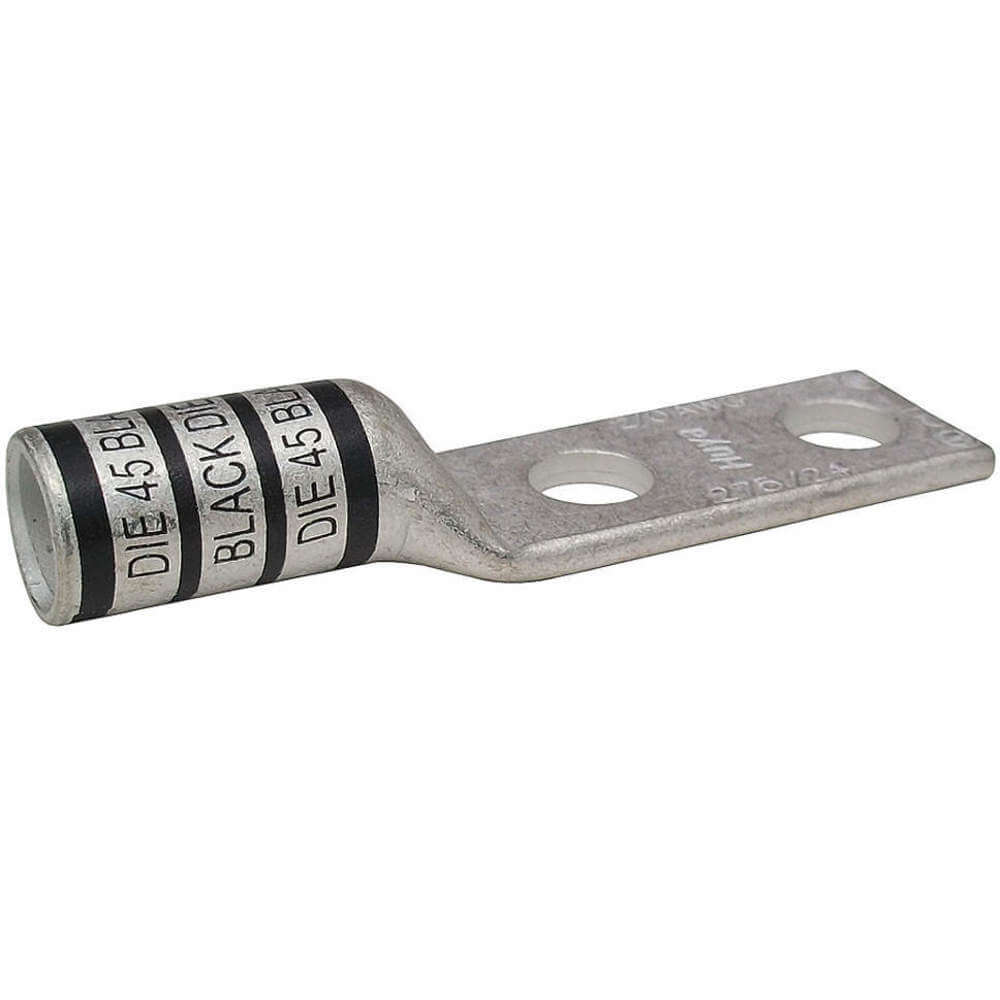

24D026 | Black | 5/16" | - | No | 0.35" | 2 | 3.58" | 1 9/16" | €13.11 |
