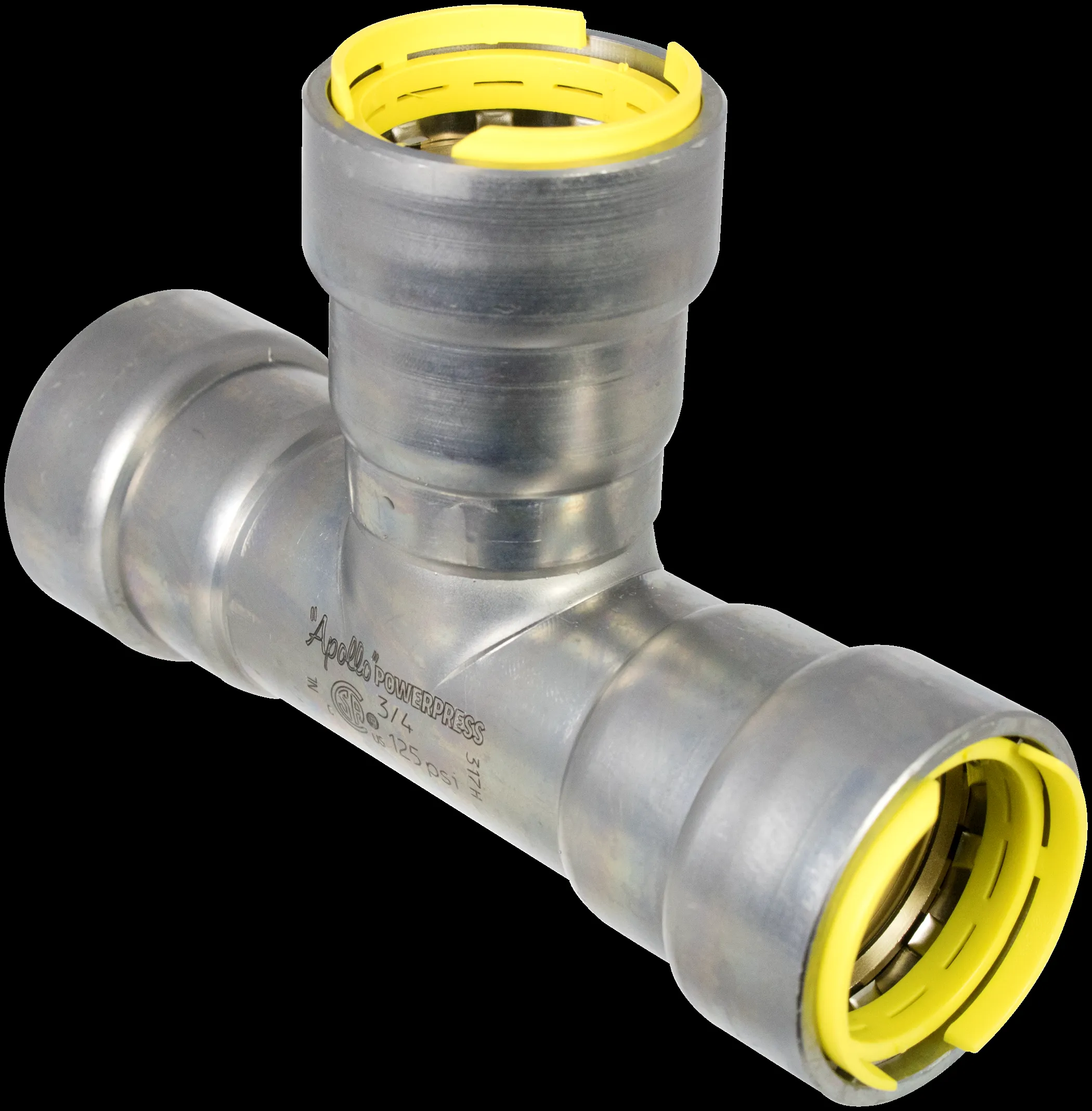

APOLLO VALVES PWR7481683 Tee Handle, Gas, 1-1/4 Inch Size, Powerpress
Get it by Friday, Aug 14
€157.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tee Handle |
| Bend Angle | 90° |
| Capped | Yes |
| Color | Gray |
| Connection Type | Press x Press |
| Continuous Medium Temp. | -40°F to +194°F |
| Contour Code | DW |
| D1 | 1.66 |
| D2 | 1.66 |
| D3 | 1.66 |
| Dimensions | 4.45" x 6.46" x 2 1/5" |
| Finish | Zinc Nickel Plated |
| Grade | Grade St 35 |
| High Tensile Strength | Yes |
| Intrastat Code | 73079980 |
| Length Of Connection 1 | 3.23" |
| Length Of Connection 2 | 3.35" |
| Length Of Connection 3 | 3.23" |
| Material | Steel |
| Max. Media Temp. | 194°F |
| Min. Media Temp. | -40°F |
| Multi-part | No |
| Outside Pipe Dia. 1 | 1.66" |
| Outside Pipe Dia. 2 | 1.66" |
| Outside Pipe Dia. 3 | 1.66" |
| Product Datasheet | apollo-valves-pwr7481683.pdf |
| Reducing | No |
| Seal Material | HNBR |
| Series | POWERPRESS GAS Series |
| Shape | T-Piece 90º |
| Size | 1 1/4" |
| System Specific | Yes |
| Wall Thickness Connection 1 | 2.9 mm |
| Wall Thickness Connection 2 | 2.9 mm |
| Wall Thickness Connection 3 | 2.9 mm |
| With Buffer Stud | Yes |
| With Connection Indicator | Yes |
| With De-aerator | No |
| With Drain Valve | No |
| With Sealing Rings/gaskets | No |
| With Thermal Insulation | No |
| Working Length Connection 1 | 1.34" |
| Working Length Connection 2 | 1.46" |
| Working Length Connection 3 | 1.34" |
| Z1 | 1.34 |
| Z2 | 1.46 |
| Z3 | 1.34 |
Shipping Info:
| Ship weight (kg) | 0.8 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 11.3 |
| Ship width (cm) | 16.41 |
| Country of Origin | NL |
Documentation:
Product Variants
| Model | Size | Dimensions | Length Of Connection 1 | Length Of Connection 2 | Working Length Connection 1 | Working Length Connection 2 | Wall Thickness Connection 1 | Length Of Connection 3 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

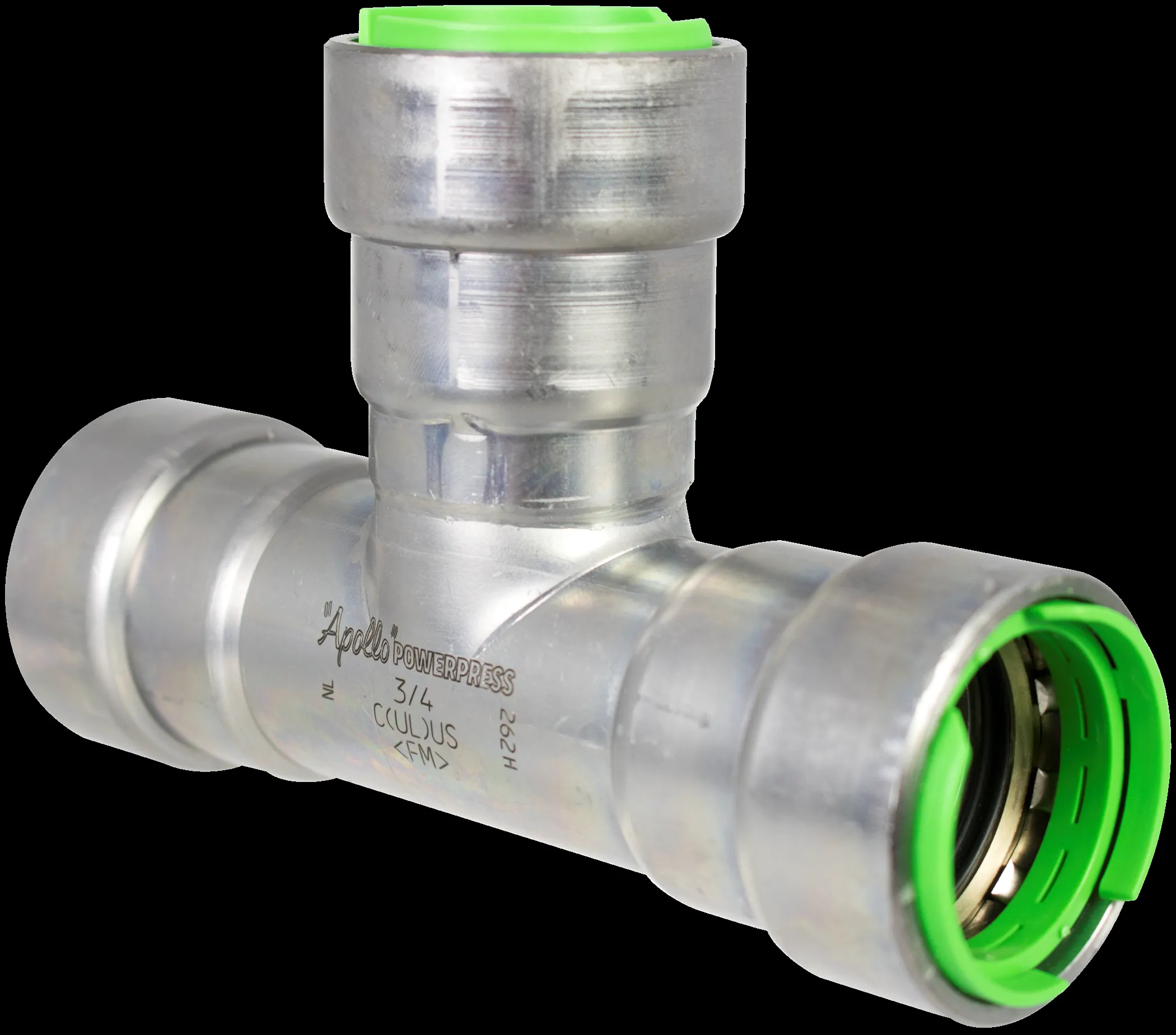

| PWR7480396 | 1 1/4" | 4.45" x 6.46" x 2 1/5" | 3.23" | 3.35" | 1.34" | 1.46" | 2.9 mm | 3.23" | €153.65 | |
| PWR7480374 | 3/4" | 3.07" x 4.49" x 1 1/2" | 2.24" | 2.3" | 1.02" | 1.08" | 2.7 mm | 2.24" | €76.18 | |
| PWR7480385 | 1" | 3.54" x 5 1/5" x 1.81" | 2.6" | 2.66" | 1.18" | 1.24" | 2.9 mm | 2.6" | €90.30 | |
| PWR7480407 | 1 1/2" | 4.72" x 7.01" x 2.44" | 3.48" | 3.5" | 1.56" | 1.57" | 3.4 mm | 3.48" | €176.74 | |
| PWR7480418 | 2" | 5.39" x 7.56" x 2.91" | 3.78" | 3.92" | 1.69" | 1.83" | 3.4 mm | 3.78" | €291.35 | |

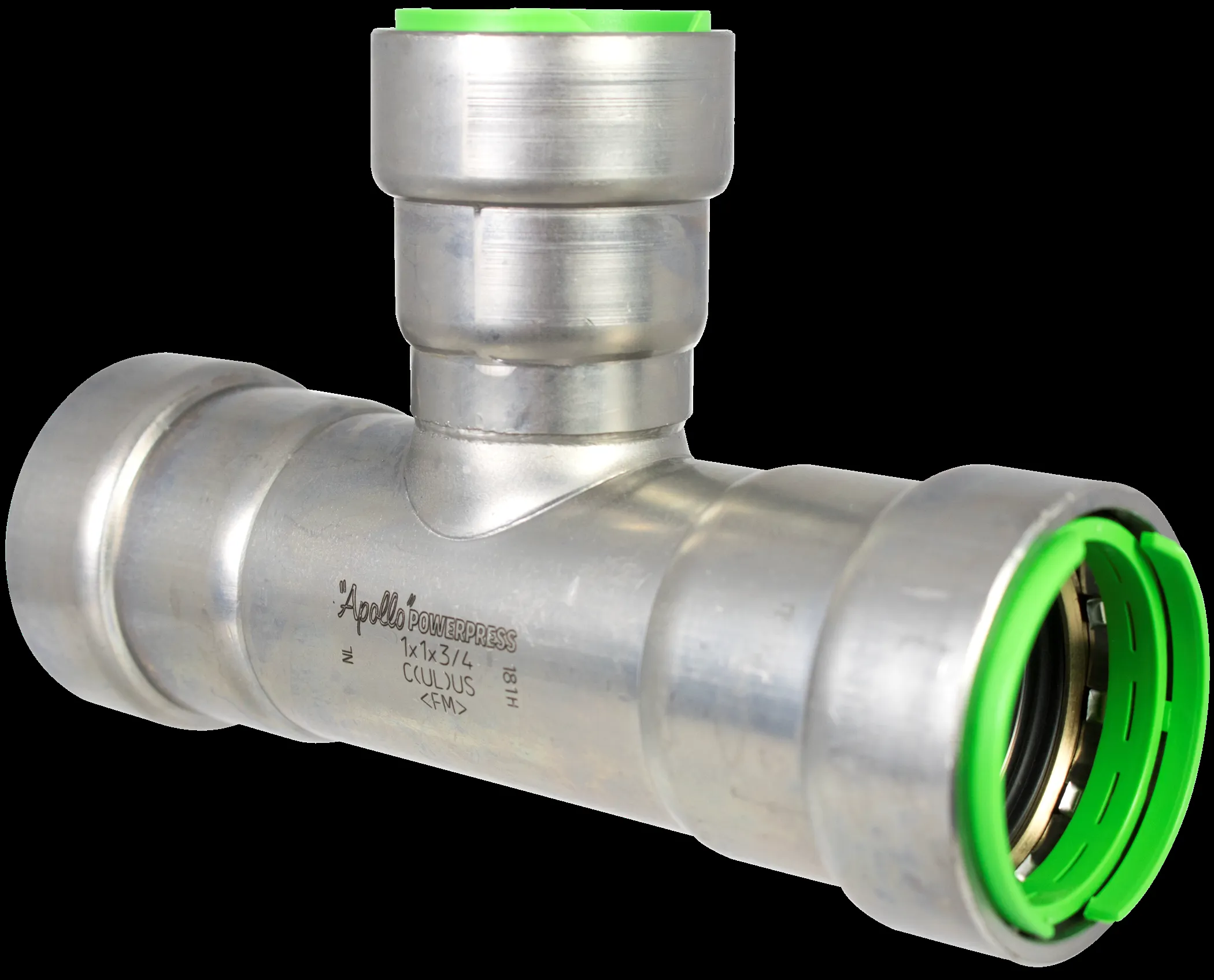

| PWR7480429 | 3/4" x 3/4" x 1/2" | 2.95" x 4.49" x 1 1/2" | 2.24" | 2.19" | 1.02" | 1.08" | 2.7 mm | 2.24" | €83.23 | |
| PWR7480431 | 1" x 1" x 1/2" | 3.27" x 5 1/5" x 1.81" | 2.6" | 2.34" | 1.18" | 1.24" | 2.9 mm | 2.6" | €101.96 |
