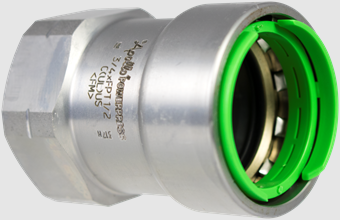

APOLLO VALVES PWR7480946 Adapter, Size 1 x 3/4 Inch, Full Port
1" x 3/4"
Get it by Thursday, Dec 18
€80.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Capped | Yes |
| Color | Gray |
| Connection Type | Press x FNPT |
| Contour Code | DW |
| D1 | 1.32 |
| D2 | 1.05 |
| Dimensions | 2 1/56" x 2 1/5" x 1.81" |
| Eccentric | No |
| Finish | Zinc Nickel Plated |
| Flange Compression Class | PN 16 |
| Grade | Grade St 35 |
| High Tensile Strength | Yes |
| Intrastat Code | 73079980 |
| Length | 57.4 mm |
| Length Of Connection 1 | 1 12/25" |
| Length Of Connection 2 | 0.71" |
| Material | Steel |
| Max. Media Temp. | 275°F |
| Max. Operating Pressure Liquid | 232 psi |
| Medium Temp. (continuous) | -40°F to +275°F |
| Min. Media Temp. | -40°F |
| Outer Pipe Dia. 1 | 1.31" |
| Outer Pipe Dia. 2 | 1.05" |
| Peak Media Temp. | 302°F |
| Product Datasheet | apollo-valves-pwr7480946.pdf |
| Reducing | Yes |
| Seal Material | EPDM |
| Series | POWERPRESS Series |
| Shape | Straight, Reducer |
| Size | 1" x 3/4" |
| Slw2 | 1.614" |
| System Specific | Yes |
| Wall Thickness Connection 1 | 2.9 mm |
| With Buffer Stud | Yes |
| With Connection Indicator | Yes |
| With De-aerator | No |
| With Drain Valve | No |
| With Sealing Rings/gaskets | No |
| With Thermal Insulation | No |
| Working Length Connection 1 | 0.06" |
| Working Length Connection 2 | 2/25" |
| Z1 | 0.06 |
| Z2 | 0.08 |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 4.6 |
| Ship length (cm) | 5.74 |
| Ship width (cm) | 5.59 |
| Country of Origin | NL |
Documentation:
Product Variants
| Model | Size | Connection Type | Material | Color | Price | |
|---|---|---|---|---|---|---|
| PWR7480913 | 3/4" x 1/2" | Press x FNPT | Steel | Gray | €66.16 | |
| PWR7480935 | 1" x 1/2" | Press x FNPT | Steel | Gray | €83.88 | |
| PWR7480968 | 1 1/4" x 1/2" | Press x FNPT | Steel | Gray | €103.31 | |
| PWR7480979 | 1 1/4" x 3/4" | Press x FNPT | Steel | Gray | €102.72 | |
| PWR7480981 | 1 1/4" x 1" | Press x FNPT | Steel | Gray | €93.90 | |
| PWR7481012 | 1 1/2" x 3/4" | Press x FNPT | Steel | Gray | €110.52 | |
| PWR7481001 | 1 1/2" x 1/2" | Press x FNPT | Steel | Gray | €116.37 |
