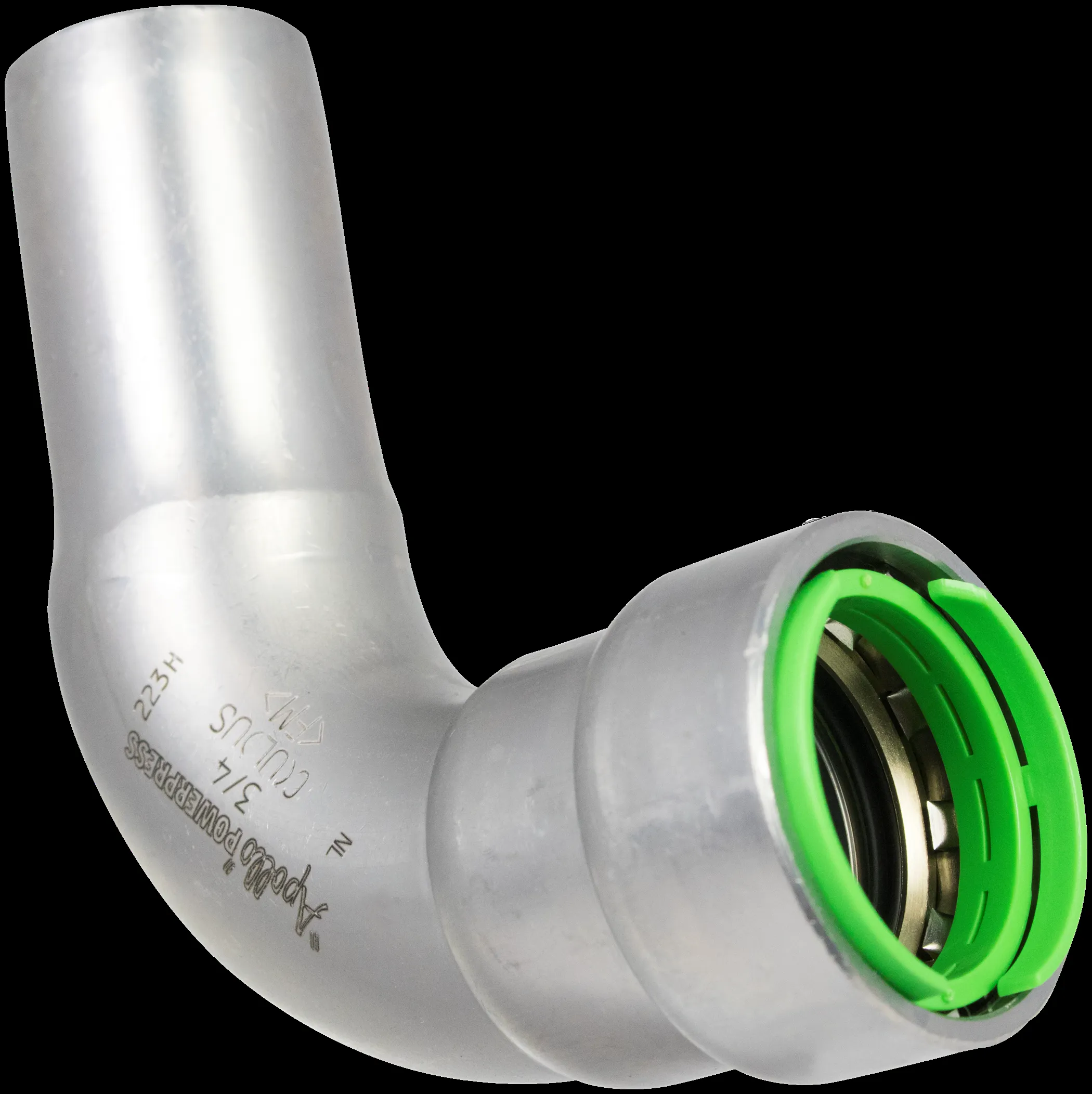

APOLLO VALVES PWR7480198 Elbow, 3/4 Inch Size, 90 Degree Street
Get it by Monday, Aug 17
€46.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Elbow, 90 Degree |
| Bend Angle | 90° |
| Bend Radius | 1.18" |
| Capped | Yes |
| Color | Gray |
| Connection Type | Press x Tube End |
| Continuous Medium Temp. | -40°F to +275°F |
| Contour Code | DW |
| D1 | 1.05 |
| D2 | 1.05 |
| Dimensions | 3.03" x 3.7" x 1 1/2" |
| Eccentric | No |
| Finish | Zinc Nickel Plated |
| Flange Compression Class | PN 16 |
| Grade | Grade St 35 |
| High Tensile Strength | Yes |
| Intrastat Code | 73079980 |
| Length | 77 mm |
| Length Of Connection 1 | 2 12/25" |
| Length Of Connection 2 | 2.95" |
| Material | Steel |
| Max. Media Temp. | 275°F |
| Max. Operating Pressure Liquid | 232 psi |
| Min. Media Temp. | -40°F |
| Outside Pipe Dia. 1 | 1.05" |
| Outside Pipe Dia. 2 | 1.05" |
| Peak Media Temp. | 302°F |
| Product Datasheet | apollo-valves-pwr7480198.pdf |
| Reducing | No |
| Seal Material | EPDM |
| Series | POWERPRESS Series |
| Shape | Bend 90º |
| Size | 3/4" |
| System Specific | Yes |
| Wall Thickness Connection 1 | 2.7 mm |
| With Buffer Stud | Yes |
| With Connection Indicator | Yes |
| With De-aerator | No |
| With Drain Valve | No |
| With Sealing Rings/gaskets | No |
| With Thermal Insulation | No |
| Working Length Connection 1 | 1.26" |
| Z1 | 1.26 |
| Zeta Value | 0.61 |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 7.7 |
| Ship width (cm) | 9.4 |
| Country of Origin | NL |
Documentation:
Product Variants
| Model | Size | Dimensions | Length Of Connection 2 | Length Of Connection 1 | Working Length Connection 1 | Wall Thickness Connection 1 | Outside Pipe Dia. 2 | Outside Pipe Dia. 1 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| PWR7481430 | 1" | 3.9" x 3.9" x 1.81" | 2.99" | 2.99" | 1.57" | 2.9 mm | 1.31" | 1.31" | €75.89 | |
| PWR7481421 | 3/4" | 3.23" x 3.23" x 1 1/2" | 2 12/25" | 2 12/25" | 1.26" | 2.7 mm | 1.05" | 1.05" | €63.52 | |
| PWR7481419 | 1/2" | 2 4/5" x 2 4/5" x 1.3" | 2.17" | 2.17" | 1.06" | 2.7 mm | 21/25" | 21/25" | €56.03 | |
| PWR7481441 | 1 1/4" | 4.92" x 4.92" x 2 1/5" | 3 4/5" | 3 4/5" | 1.91" | 2.9 mm | 1.66" | 1.66" | €130.07 | |
| PWR7481452 | 1 1/2" | 5.28" x 5.28" x 2 11/25" | 4.06" | 4.06" | 2.13" | 3.4 mm | 1.9" | 1.9" | €131.88 | |
| PWR7481463 | 2" | 6.22" x 6.22" x 2.91" | 4.78" | 4.78" | 2.7" | 3.4 mm | 2.37" | 2.37" | €196.10 | |
| PWR7481507 | 1 1/4" | 4.65" x 5.31" x 2 1/5" | 4.27" | 3 4/5" | 1.91" | 2.9 mm | 1.66" | 1.66" | €104.18 |
