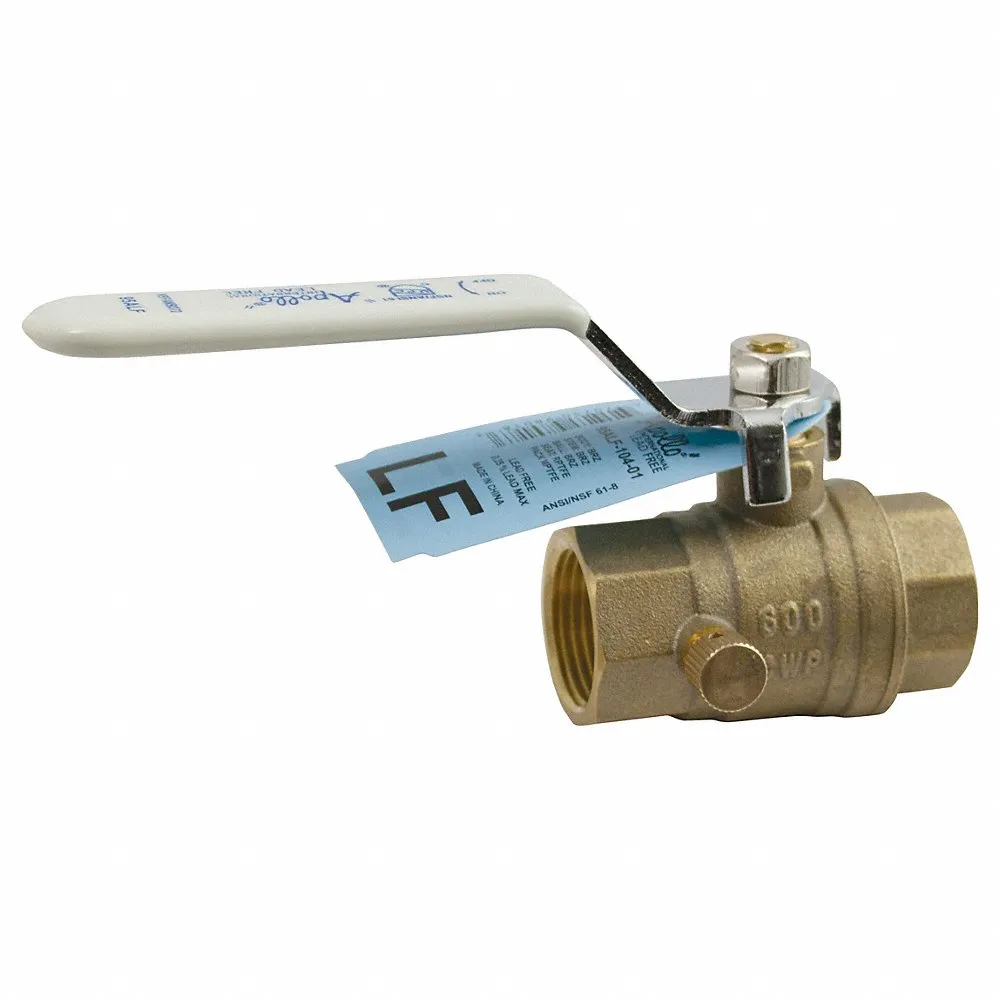

APOLLO VALVES 95ALF10401 Lead Free Brass 2 Pcs Ball Valve with Standard Configuration, 3/4 Inch Size, 2 x FNPT
Item: AD3MDVModel: 95ALF10401Cross Ref: 40D969
7 In Stock
Ships within 2 days via
5.00% off
€39.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| Ball Material | Brass |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Body Style | Inline |
| Bore Type | Full Bore |
| Color | Yellow |
| Connection Type | FNPT |
| D1 | 1.05 , 1.29 |
| D2 | 1.05 |
| E | 0.71 |
| Finish | Chrome Plated |
| Grease-free | No |
| Handgrip Length | 0.49" |
| Handle Finish | Zinc Plated |
| Handle Material | Zinc Plated Steel |
| Handle Type | Lever |
| Handle/hand Wheel Height | 0.82" |
| Housing Construction | 2-Part |
| Lead Free | Yes |
| Length Of Connection 1 | 1.18" |
| Length Of Connection 2 | 1.18" |
| M1 | 0.49 |
| M2 | 3.82 |
| Max. Media Temp. | 250°F |
| Max. Operating Pressure | 600 psi |
| Medically Clean | No |
| Outside Pipe Dia. Connection 1 | 1.05" |
| Outside Pipe Dia. Connection 2 | 1.05" |
| Overall Length | 3.94" |
| Port Type | Full |
| Product Datasheet | apollo-valves-95alf10401.pdf |
| Seal Material | PTFE |
| Seat Material | RPTFE |
| Series | 95A Series Ball Valves |
| Size | 3/4" |
| Spindle Material | Brass |
| Stem Grade | Grade C27450LF |
| Stem Material | Brass |
| Stem Type | Blowout Proof |
| Temp. | -50°F to +400°F |
| U | 0.67 |
| V | 1.33 |
| With Filter | No |
| Working Length Connection 1 | 0.62" |
| Working Length Connection 2 | 0.62" |
| Y | 0.82 |
| Z1 | 0.62 |
| Z2 | 0.62 |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 8.89 |
| HS code | 8481801085 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Size | Outside Pipe Dia. Connection 1 | Outside Pipe Dia. Connection 2 | Seat Material | Dimensions | Length Of Connection 1 | Length Of Connection 2 | Working Length Connection 1 | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
95ALF10501 | 1" | 1.32" | 1.32" | RPTFE | - | 1.38" | 1.38" | 0.75" | €57.95 | |
 |
95ALF20301 | 1/2" | 0.63" | 0.63" | PTFE | 4 3/4" x 1 3/4" x 2 1/4" | 1.08" | 1.02" | 0.57" | €26.54 | |
 |

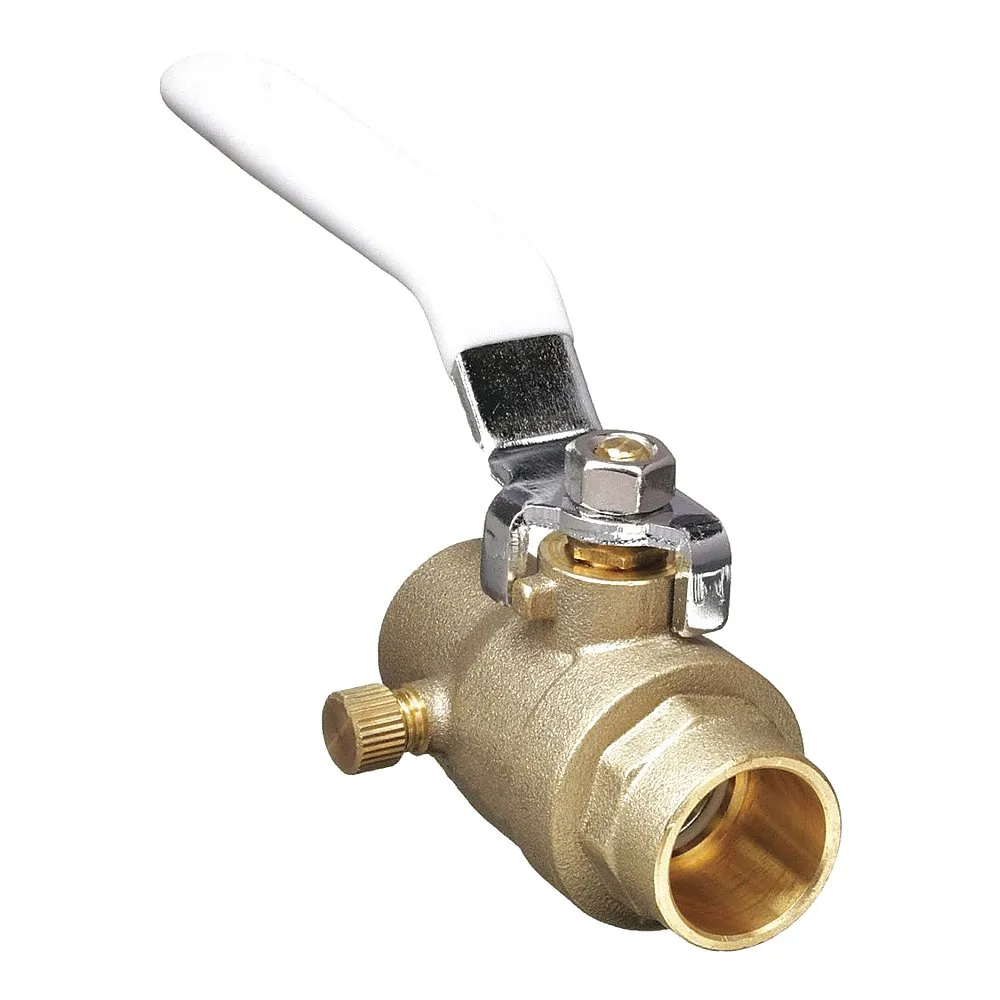

95ALF20401 | 3/4" | 0.88" | 0.88" | PTFE | - | 1.43" | 1.37" | 0.69" | €37.10 | |
 |
95ALF20501 | 1" | 1.13" | 1.13" | PTFE | - | 1.65" | 1.65" | 0.75" | €55.99 | |
 |
95ALF10301 | 1/2" | 0.84" | 0.84" | - | 4 3/4" x 1 3/4" x 2.23" | 1.02" | 1.02" | 0.5" | €28.50 |
