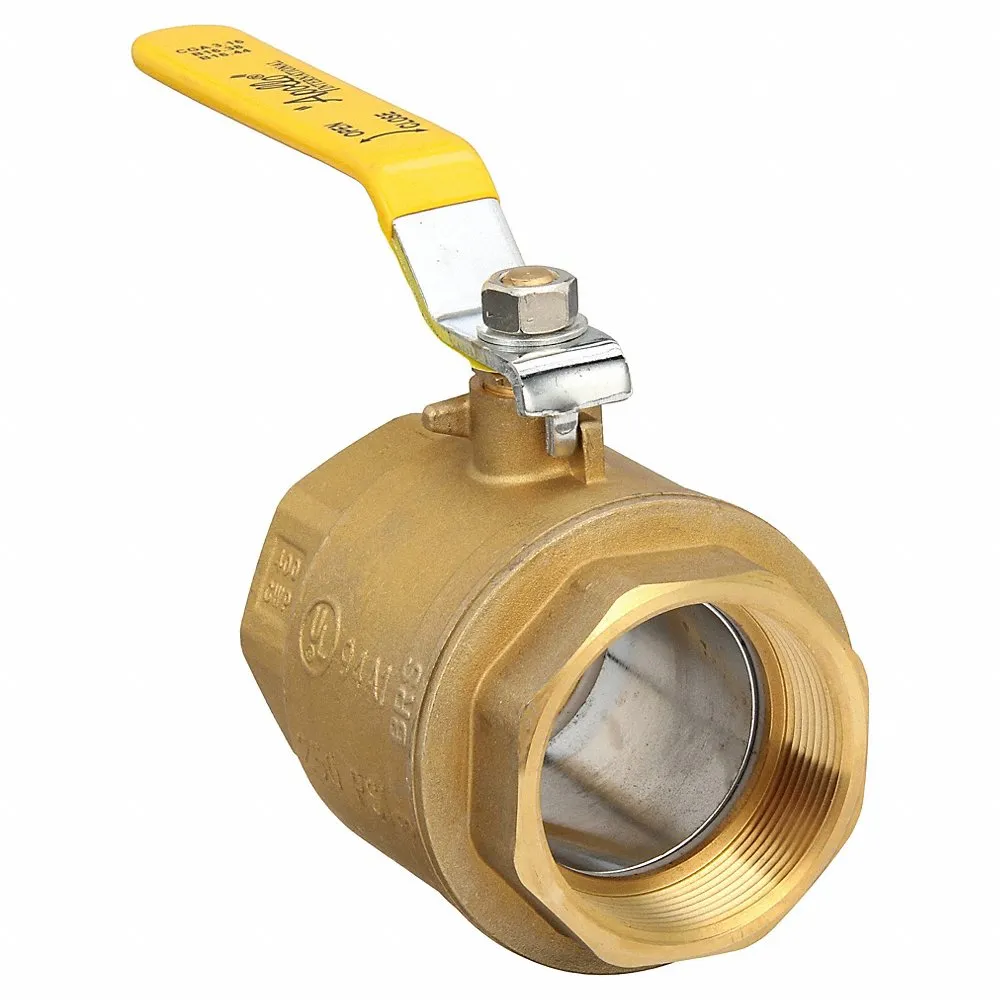

APOLLO VALVES 94A10001 Ball Valve, 3 in Pipe, Full, 400 psi CWP, 0 to 400 Deg. F, Lever Handle, Female NPT, FNPT x FNPT
Item: AA9CZKModel: 94A10001Cross Ref: 1CKD8
7 In Stock
Ships within 2 days via
10.00% off
€452.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Body Style | Inline |
| Bore Type | Full Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 0 |
| Color | Brass |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3" |
| Connection Size - Side 2 | 3" |
| Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| D-1 | 4.08 |
| D1 | 3.5 |
| D2 | 3.5 |
| Dimensions | 12" x 5" x 7 1/4" |
| E | 1.3 |
| Finish | Chrome Plated |
| For Media | Combustible Gases |
| Grease-free | No |
| Handgrip Length | 0.98" |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Finish | Corrosion Resistant Plating |
| Handle Height | 4.97" |
| Handle Length | 8.7" |
| Handle Material | PVC, Steel |
| Handle Type | Lever |
| Handle/hand Wheel Height | 1.65" |
| Housing Construction | 2-Part |
| Length Of Connection 1 | 3.02" |
| Length Of Connection 2 | 3.02" |
| M1 | 0.98 |
| M2 | 8.7 |
| Manufacturer Warranty | 2 yrs. |
| Max. Operating Pressure | 400 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 400 psi |
| Media Temp. Range | 0°F to 400°F |
| Medically Clean | No |
| Meets Ul Flammable Gas And Liquid Standards | UL 125, UL 842, UL 1477 |
| Nominal Valve Size | 3" |
| Outer Pipe Dia. Connection 1 | 3.5" |
| Outer Pipe Dia. Connection 2 | 3.5" |
| Overall Length | 6.04" |
| Port Type | Full |
| Product Datasheet | apollo-valves-94a10001.pdf |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Series | 94A Series Ball Valves |
| Shape | Straight |
| Size | 3" |
| Spindle Material | Brass |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. Range | 0°F to +400°F |
| U | 1.3 |
| V | 3.5 |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 94A |
| With Filter | No |
| Working Length Connection 1 | 1.92" |
| Working Length Connection 2 | 1.92" |
| Y | 1.65 |
| Z1 | 1.92 |
| Z2 | 1.92 |
Shipping Info:
| Ship weight (kg) | 4.19 |
| Ship height (cm) | 18.42 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 12.7 |
| HS code | 8481801085 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Connection Type | Handle Material | Overall Length | Max. Operating Pressure | Ball Finish | Body Material | Seat Material | Stem Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
94A10101 | FNPT | PVC, Steel | 1.76" | 600 psi | Chrome Plated | Brass | PTFE | Brass | €16.77 | |
 |
94A10201 | FNPT | PVC, Steel | 1.76" | 600 psi | Chrome Plated | Brass | PTFE | Brass | €15.02 | |
 |
94A10301 | FNPT | PVC, Steel | 2.05" | 600 psi | Chrome Plated | Brass | PTFE | Brass | €16.84 | |
 |
94A10401 | FNPT | PVC, Steel | 2.36" | 600 psi | Chrome Plated | Brass | PTFE | Brass | €22.78 | |
|
94A10501 | FNPT | - | 2.76" | 600 psi | - | Brass | PTFE | Brass | €35.63 | |
|
94A10601 | FNPT | PVC, Steel | 3.31" | 600 psi | Chrome Plated | Brass | PTFE | Brass | €56.76 | |
 |
94A10701 | FNPT | PVC, Steel | 3.66" | 600 psi | Chrome Plated | Brass | PTFE | Brass | €82.73 |
