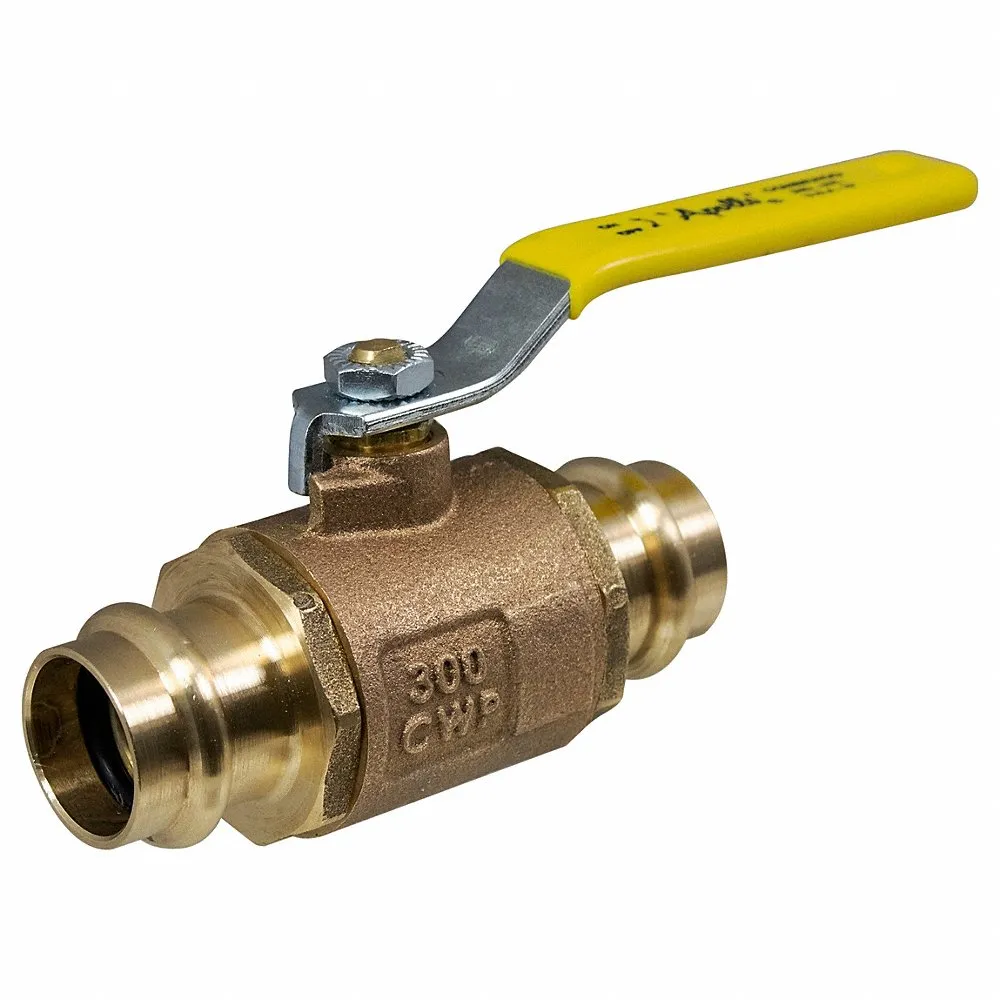

APOLLO VALVES 77W10301A Ball Valve, 1/2 in Pipe, 1/2 in Tube, Full, 300 psi CWP, 0 to 250 Deg. F, Lever Handle, Press
Item: CH6MRHModel: 77W10301ACross Ref: 55ET26
7 In Stock
Ships within 2 days via
10.00% off
€49.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 0.01 |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 1/2" |
| Connection Type | Press |
| Connection Type - Side 1 | Press |
| Connection Type - Side 2 | Press |
| Contour Code | V |
| D1 | 0.63 |
| D2 | 0.63 |
| E | 0.7 |
| Finish | Chrome Plated |
| For Media | Water |
| Grease-free | No |
| Handgrip Length | 13.97 mm |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Height | 1.71" |
| Handle Length | 3 3/4" |
| Handle Material | Chrome Plated Steel, PVC |
| Handle Type | Lever |
| Housing Construction | 2-Part |
| Length Of Connection 1 | 39.93 mm |
| Length Of Connection 2 | 39.93 mm |
| M1 | 0.55 |
| M2 | 3.75 |
| Manufacturer Warranty | 5 yrs. |
| Max. Pressure | 300 psi CWP |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 300 psi |
| Max. Pressure (steam) | 15 psi |
| Max. Steam Pressure | 15 psi WSP |
| Media Temp. Range | 0°F to 250°F |
| Medically Clean | No |
| Nominal Valve Size | 1/2" |
| Operation | Lever handle |
| Outer Pipe Diameter Connection 1 | 15.88 mm |
| Outer Pipe Diameter Connection 2 | 15.88 mm |
| Overall Length | 3.01" |
| Pipe Size | 1/2" |
| Product Datasheet | apollo-valves-77w10301a.pdf |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Series | 77W Series |
| Size | 1/2" |
| Standards | Arra Compliant, Build America Buy America Act (Baba), Buy American Act (Baa) |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. Range | 0°F to +250°F |
| U | 0.69 |
| V | 1.05 |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 77W Series |
| Valve Structure | Two Pieces |
| With Filter | No |
| Working Length Connection 1 | 20.88 mm |
| Working Length Connection 2 | 20.88 mm |
| Y | 0.66 |
| Z1 | 0.82 |
| Z2 | 0.82 |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 6.91 |
| Ship length (cm) | 13.49 |
| Ship width (cm) | 4.09 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Max. Pressure | Overall Length | Pipe Size | Ball Finish | Body Material | Connection Type | Max. Steam Pressure | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

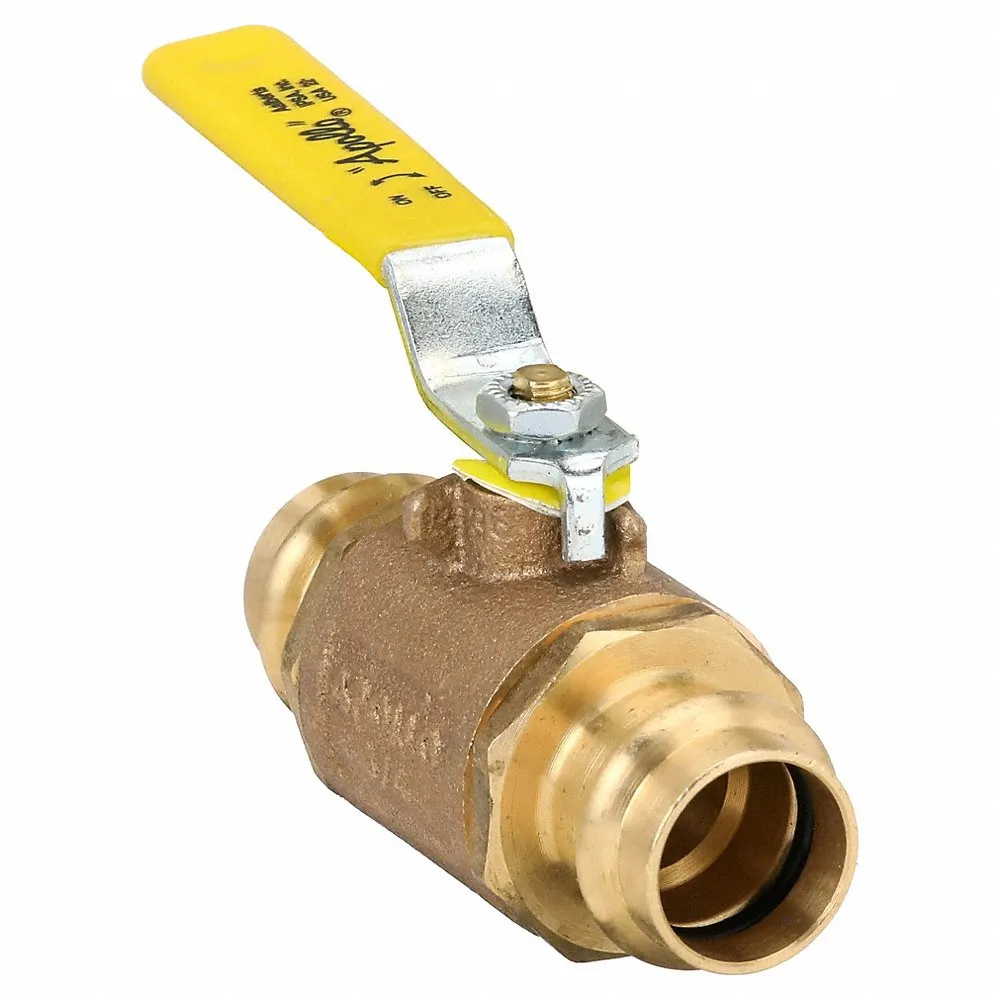

77W10401A | 300 psi CWP | 3.8" | 3/4" | Chrome Plated | Bronze | Press | 15 psi WSP | PTFE | €70.70 | |
 |

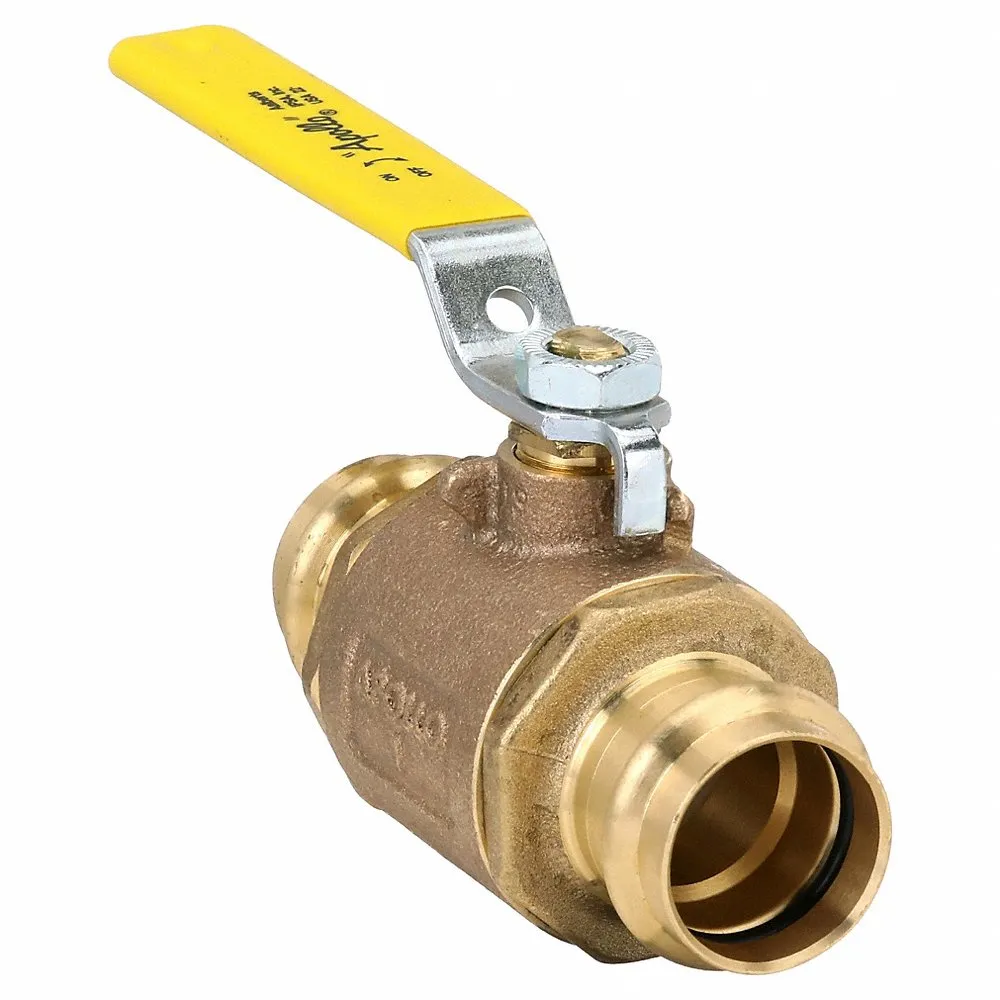

77W10501A | 300 psi CWP | 4.49" | 1" | Chrome Plated | Bronze | Press | 15 psi WSP | PTFE | €97.35 | |
 |

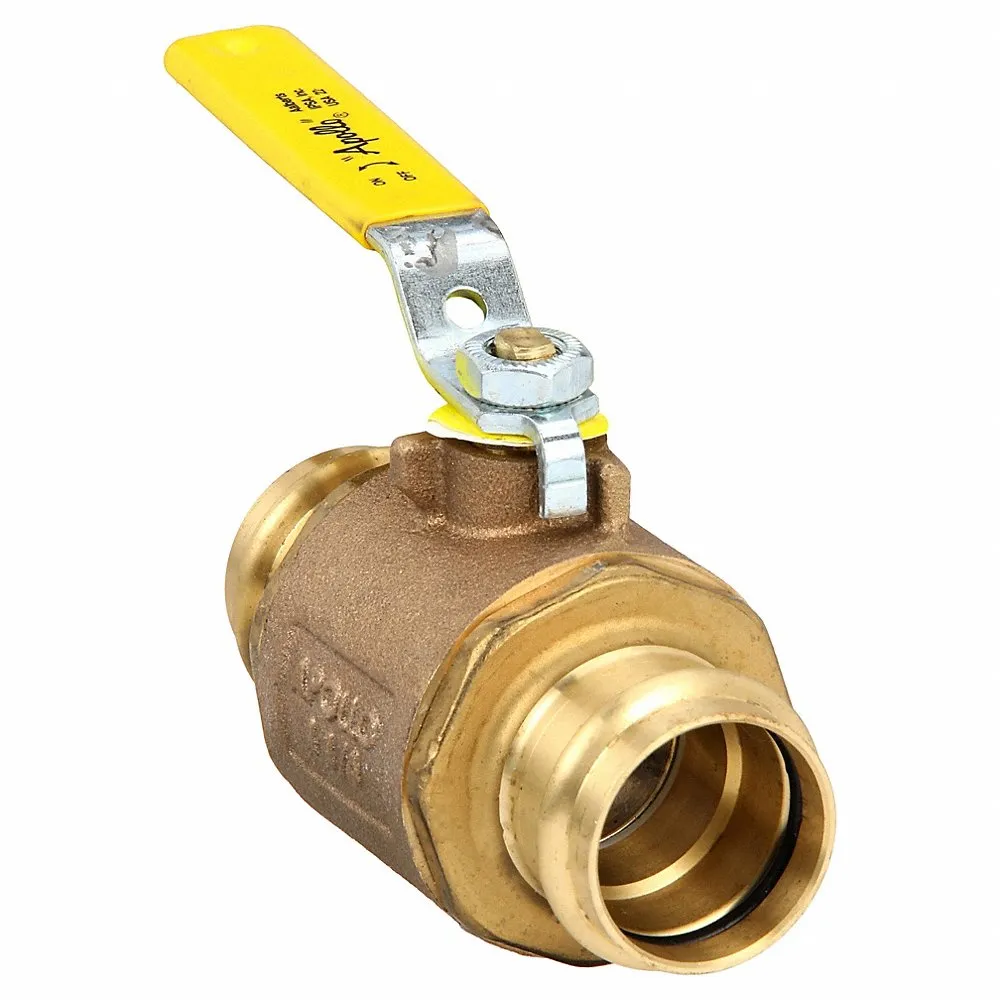

77W10601A | 300 psi | 4.8" | 1 1/4" | Chrome Plated | Bronze | Press | 15 psi WSP | PTFE | €190.57 | |
 |

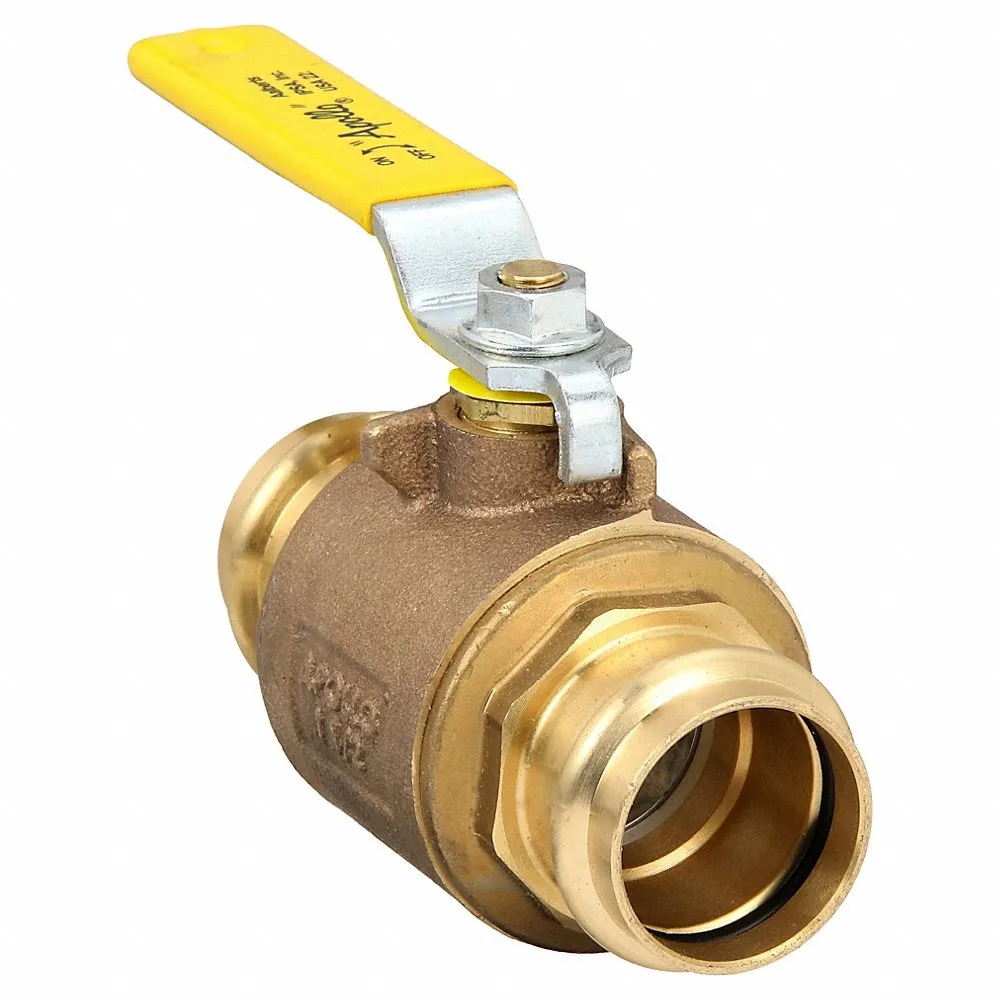

77W10701A | 300 psi | 5.72" | 1 1/2" | Chrome Plated | Bronze | Press | 15 psi WSP | PTFE | €243.83 | |
|
77W10801A | 300 psi CWP | 6.8" | 2" | Chrome Plated | Bronze | Press | 15 psi WSP | PTFE | €396.90 |
