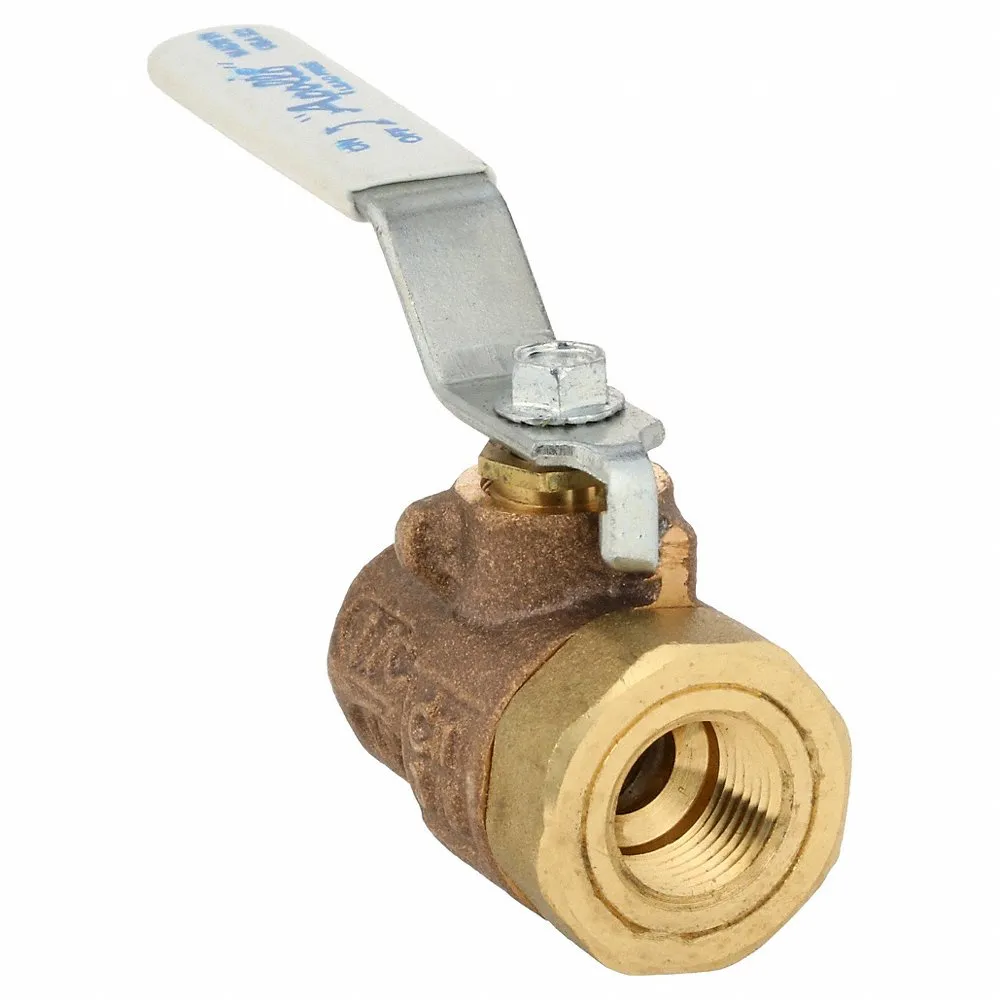

APOLLO VALVES 77CLF14201A Ball Valve, 3/8 Inch NPT, Bronze, Full Port, Stainless Steel, Ball And Stem
Item: CC6NKWModel: 77CLF14201ACross Ref: 48XJ16
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Body Material | Brass, Bronze |
| Bore Type | Full Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 0.01 |
| Color | Yellow |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3/8" |
| Connection Size - Side 2 | 3/8" |
| Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| D1 | 0.68 |
| D2 | 0.68 |
| Dimensions | 5.31" x 1.61" x 2.72" |
| Finish | None |
| For Media | Water |
| Grease-free | No |
| Handle | Lever |
| Handle Color | Yellow |
| Handle Material | PVC, Zinc Plated Steel |
| Handle Type | Lever |
| Housing Construction | 2-Part |
| Manufacturer Warranty | 5 yrs. |
| Max. Pressure | 600 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure (steam) | 150 psi |
| Media Temperature Range | -20°F to +450°F |
| Medically Clean | No |
| Nominal Valve Size | 3/8" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Outer Pipe Diameter Connection 1 | 17.15 mm |
| Outer Pipe Diameter Connection 2 | 17.15 mm |
| Pipe Size | 3/8" |
| Product Datasheet | apollo-valves-77clf14611a.pdf |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Series | 77C Series |
| Shape | Straight |
| Size | 3/8" |
| Spindle Material | Stainless Steel |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Type | Standard |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Bronze |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 77C |
| Valve Ways | 2-Way |
| Vented Ball Valve | Vented |
| With Filter | No |
| With Thermometer | No |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 6.91 |
| Ship length (cm) | 13.49 |
| Ship width (cm) | 4.09 |
| Country of Origin | US |
Product Details:
- Series: Lead Free Bronze Ball Valve, Full Port
Documentation:
Product Variants
| Product | Model | Connection Type | Body Material | Ball Material | Stem Material | Handle | Overall Length | Coefficient Of Volume | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
77CLF14611A | FNPT | Lead Free Bronze | Stainless steel | - | - | - | - | None | €303.68 | |
|
77CLF14627A | FNPT | Lead Free Bronze | Stainless steel | - | - | - | - | None | €270.57 | |
 |
77CLF14701A | FNPT | Brass, Bronze | Stainless Steel | Stainless Steel | Lever | - | - | None | €404.81 | |
|
77CLF14704A | FNPT | Lead Free Bronze | Stainless steel | - | - | - | - | None | €394.42 | |
 |
77CLF14710A | FNPT | - | - | - | - | - | - | - | €336.62 | |
|
77CLF14711A | FNPT | Lead Free Bronze | Stainless steel | - | - | - | - | None | €393.16 | |
|
77CLF14727A | FNPT | Lead Free Bronze | Stainless steel | - | - | - | - | None | €327.08 |
