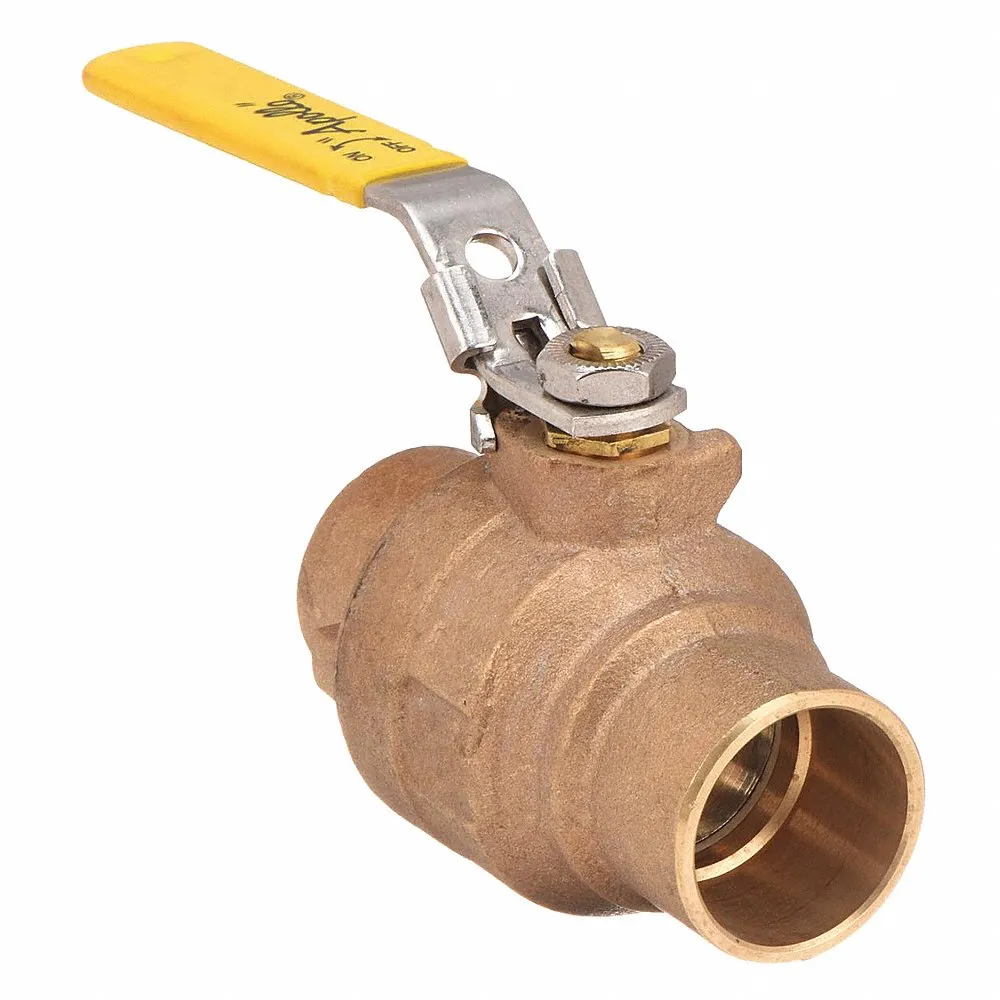

APOLLO VALVES 77C20227A Bronze 2 Pcs Full Port Ball Valve with Locking Handle 3/8 Inch Size, 2 x Solder
Item: BY9KYKModel: 77C20227ACross Ref: 48XH92
7 In Stock
Ships within 2 days via
10.00% off
€43.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Full Port |
| Body Material | Bronze |
| Bore Type | Full Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 0.01 |
| Color | Yellow, Bronze |
| Connection Size - Side 1 | 3/8" |
| Connection Size - Side 2 | 3/8" |
| Connection Type | Solder |
| Connection Type - Side 1 | Sweat |
| Connection Type - Side 2 | Sweat |
| D1 | 0.5 |
| D2 | 0.5 |
| Dimensions | 5.55" x 1.59" x 2.71" |
| Finish | None |
| For Media | Steam |
| Grease-free | No |
| Handle | Locking Lever |
| Handle Color | Yellow |
| Handle Material | PVC, Zinc Plated Steel |
| Handle Type | Lever |
| Housing Construction | 2-Part |
| Manufacturer Warranty | 5 yrs. |
| Max. Operating Pressure | 600 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure (steam) | 150 psi |
| Media Temperature Range | -20°F to +450°F |
| Medically Clean | No |
| Nominal Valve Size | 3/8" |
| Outer Pipe Dia. Connection 1 | 0.5" |
| Outer Pipe Dia. Connection 2 | 0.5" |
| Product Datasheet | apollo-valves-77c24504a.pdf |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Series | 77C Series Ball Valves |
| Shape | Straight |
| Size | 3/8" |
| Spindle Material | Brass |
| Stem Material | PTFE |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Type | Stainless Steel Latch Lock Lever, Nut |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Bronze |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 77C |
| Vented Ball Valve | Vented |
| With Filter | No |
| With Thermometer | No |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 6.88 |
| Ship length (cm) | 14.1 |
| Ship width (cm) | 4.04 |
| Country of Origin | US |
Product Details:
- Series: Bronze Ball Valve, Full Port, Contractor Grade
Documentation:
Product Variants
| Model | Connection Type | Ball Material | Handle | Overall Length | Coefficient Of Volume | Color | Pipe Size | Ball Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 77C24504A | Solder | Stainless steel | - | - | - | Yellow, Bronze | - | - | €118.27 | |
| 77C14550A | FNPT | Stainless steel | - | - | - | Yellow, Bronze | - | - | €132.56 | |
| 77C14594A | FNPT | Stainless steel | - | - | - | Yellow, Bronze | - | - | €124.81 | |
| 77C14527A | FNPT | Stainless steel | - | - | - | Yellow, Bronze | - | - | €107.59 | |
| 77C14601A | FNPT | Stainless steel | - | - | - | Yellow, Bronze | - | - | €181.11 | |
| 77C14611A | FNPT | Stainless steel | - | - | - | Yellow, Bronze | - | - | €259.77 | |
| 77C14604A | FNPT | Stainless steel | - | - | - | Yellow, Bronze | - | - | €249.36 |
