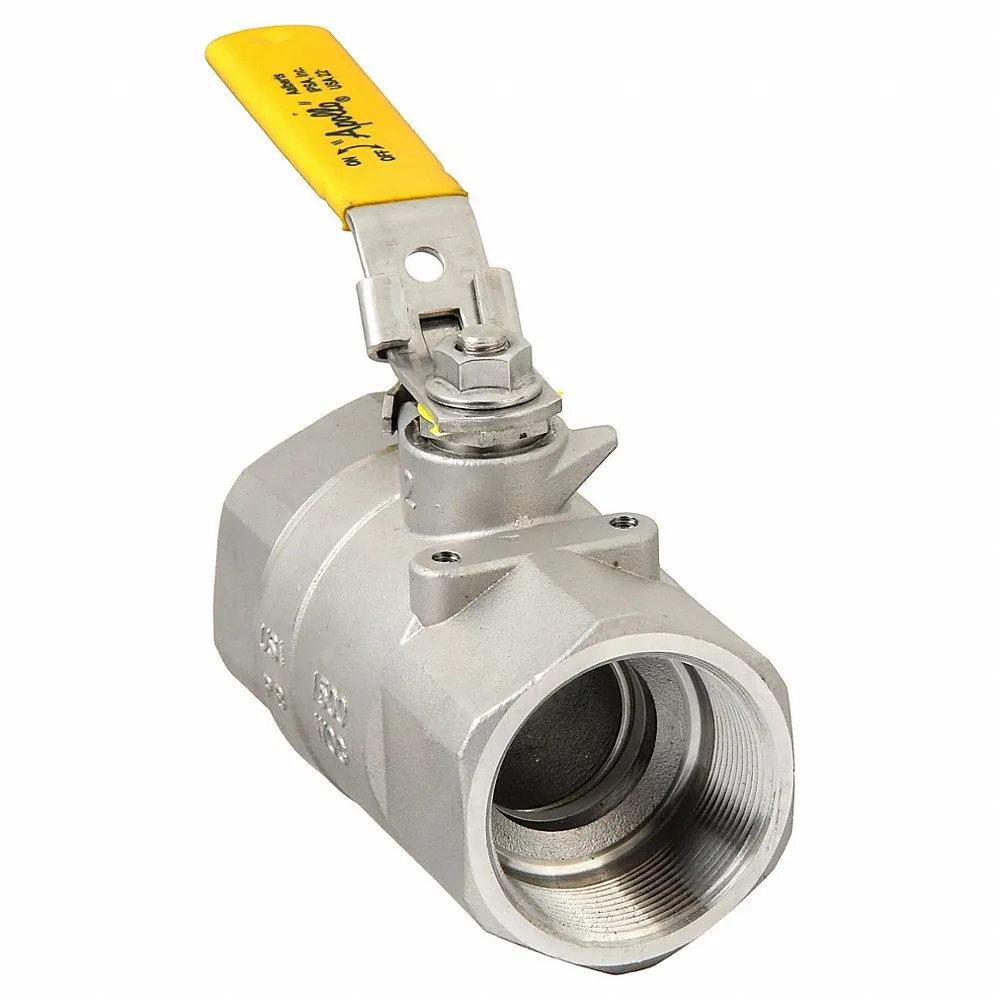

APOLLO VALVES 7610227A Ball Valve, 3/8 in Pipe, Std, 2,000 psi CWP, -50 to 450 Deg. F, Locking Lever Handle, Female NPT
Item: AA9DDFModel: 7610227ACross Ref: 1CKR7
7 In Stock
Ships within 2 days via
10.00% off
€122.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Stainless Steel |
| Body Style | Inline |
| Bore Type | Reduced Bore |
| Cleaned And Bagged | Not Cleaned And Bagged |
| Coefficient Of Volume (cv) | 7.2 |
| Color | Silver |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 3/8" |
| Connection Size - Side 2 | 3/8" |
| Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| D1 | 0.68 |
| D2 | 0.68 |
| Dimensions | 6.22" x 1 3/4" x 2.91" |
| Finish | None |
| For Media | Steam, Water |
| Grade | Grade 316 |
| Grease-free | No |
| Handle | Locking Lever |
| Handle Color | Yellow |
| Handle Height | 1.71" |
| Handle Length | 3.85" |
| Handle Material | Stainless Steel |
| Handle Type | Lever Locking |
| Housing Construction | 2-Part |
| Included Mounting | Actuator Mounting Pad |
| Manufacturer Warranty | 5 yrs. |
| Max. Operating Pressure | 2000 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 2000 psi |
| Max. Steam Pressure | 150 psi |
| Media Temperature Range | -50°F to +450°F |
| Medically Clean | No |
| Nominal Valve Size | 3/8" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Outer Pipe Dia. Connection 1 | 0.68" |
| Outer Pipe Dia. Connection 2 | 0.68" |
| Overall Length | 2.05" |
| Pipe Schedule Compatibility | Schedule 40 |
| Port Type | Standard |
| Product Datasheet | apollo-valves-7610127a.pdf |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Series | 76 Series Ball Valves |
| Shape | Straight |
| Size | 3/8" |
| Spindle Material | Stainless steel |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Surface Protection | None |
| Temp. Range | -50°F to +450°F |
| Vacuum Service Rating | 29 in. hg |
| Valve Body Color | Silver |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 76 |
| With Filter | No |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 7.39 |
| Ship length (cm) | 15.8 |
| Ship width (cm) | 4.45 |
| HS code | 8481803070 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Connection Type | Seal Material | Seat Material | Overall Length | Coefficient Of Volume | Max. Operating Pressure | Body Material | Ball Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7610127A | FNPT | PTFE | PTFE | 2.05" | - | 2000 psi | Stainless Steel | Stainless Steel | €136.76 | |
 |
7610327A | FNPT | PTFE | PTFE | - | 15 | 2000 psi | Stainless Steel | Stainless Steel | €122.08 | |
 |
7610427A | FNPT | PTFE | PTFE | 2.96" | 30 | 2000 psi | Stainless Steel | Stainless Steel | €203.22 | |
 |
7610527A | FNPT | PTFE | PTFE | 3.34" | - | 2000 psi | Stainless Steel | Stainless Steel | €253.55 | |
 |
7610627 | FNPT | PTFE | PTFE | 4" | - | 1500 psi | Stainless Steel | Stainless Steel | €447.48 | |
 |
7610727 | FNPT | PTFE | PTFE | 4.34" | 84 | 1500 psi | Stainless Steel | Stainless Steel | €557.66 | |
 |
7610827 | FNPT | PTFE | PTFE | 5.43" | 108 | 1500 psi | Stainless Steel | Stainless Steel | €651.11 |
